Sewage Lifting Equipment (Drainage Equipment)

JSPZ- Series CAM Self-Priming Sewage Lifter

Equipment Overview

The JSPZ series cam self-priming sewage elevator is a sewage conveying equipment with an external water pump structure. The cam pump not only has the characteristics of a large pump chamber and unobstructed channels of a vortex sewage pump, but also has the cutting ability of a blade cutting sewage pump, making it more suitable for high pedestrian flow and population

Public health places with uneven quality and high demand for lift.

Due to the large self-priming capacity of the water pump, the sewage collection tank and the water pump unit can be installed separately within a horizontal distance of 30 meters or a vertical height of 7 meters, which is more convenient for users to use.

+ Contact us

PREV: JSPF- Series Crushing Type Sewage Lifter
NEXT: JSS 450V Type Sewage Lifter

Product Description

Equipment Composition

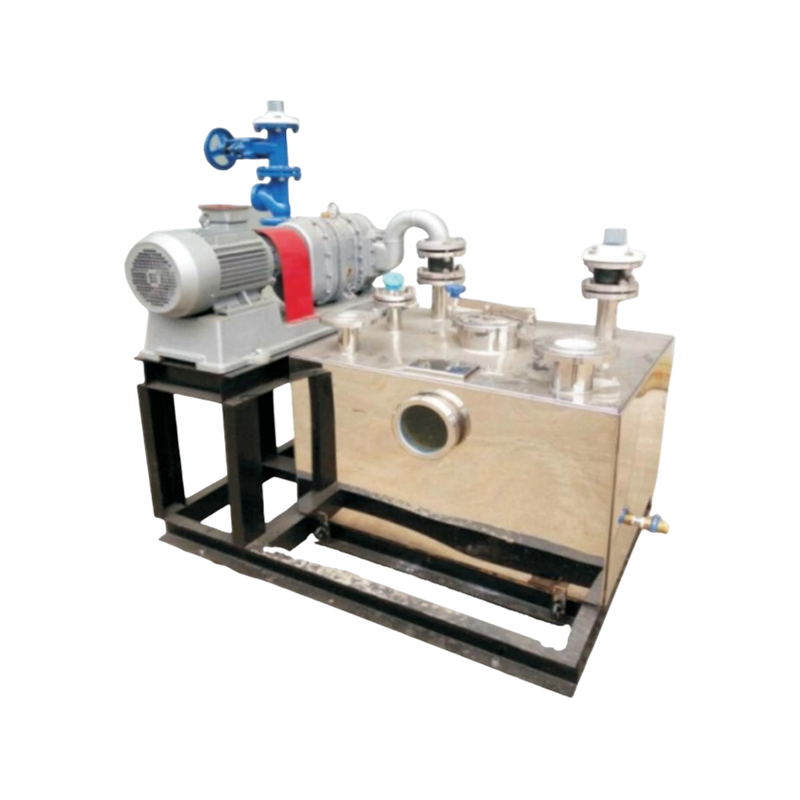

The JSPZ series cam self-priming sewage elevator consists of a closed stainless steel water collection tank, cam rotor pump, pipeline valve components, liquid level controller, base and its accessories. Water collection tank: A closed stainless steel water collection tank is used to collect and store sewage discharged from sanitary facilities.

① The water collection tank is made of impact resistant and corrosion-resistant 304 stainless steel plate, which is welded using single-sided welding and double-sided forming argon arc welding technology. The inner surface of the water collection tank is treated with anti-oxidation treatment.

② The wall thickness of the water collection tank and its connecting components can withstand an internal pressure of not less than 0.10MPa, while meeting the external load requirements (100kg) for maintenance personnel to carry out maintenance with tools.

③ The water collection tank is equipped with a closed inlet (the inlet position can be set according to the actual location of the user's site), outlet, exhaust port (not less than DN50), discharge port, maintenance port and other reserved interfaces.

④ The water collection tank is completely airtight and water tight, with no odor leakage.

⑤ The external dimensions of a single standard water collection tank are 1000X800X700 (different specifications can be made according to the user's usage location), and multiple (no more than 3) water tanks can be connected in parallel

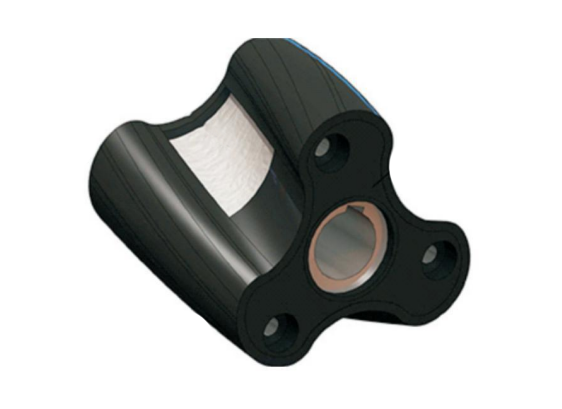

Cam pump rotor: It has the characteristics of high efficiency, low vibration, erosion resistance, wear resistance, corrosion resistance, high strength, and long service life, and has the best anti blocking and anti winding performance.

① The rotor is made of high-strength and high-quality ductile iron cast in one go.
② Cover the rotor surface with nitrile rubber or polyurethane.
③ Adopting a dual rotor design, the impeller clearance can reach 1.5 times the inner diameter of the inlet pipe through dirt.
④ There is an internal locking device between the rotor and the pump shaft, which prevents the rotor from loosening during forward or reverse rotation.
⑤ The rotor blades adopt a three bladed rotor and are evenly arranged.
⑥ Equipped with online quick maintenance function, only the pump cover needs to be removed when disassembling the rotor.

Pipeline valve component: The check valve is installed on the outlet pipe of the cutting pump. It is a silent, water hammer free, and anti blocking spherical check valve that can be opened from the outside. During maintenance, water in the riser can flow back into the equipment, making it easy to disassemble and maintain the equipment.

The gate valve is installed on the connecting pipe of the cutting pump inlet pipe, lifting pipe, and two sealed water tanks. It is a special elastic seat sealing gate valve for sewage systems with cast iron shell and copper core, which has the characteristics of anti blocking, no leakage, and easy maintenance.

Liquid level sensor:

① Adopting a stable and reliable sewage level pressure switch. Convert the pressure of sewage into equivalent air pressure. When the pressure rises to the operating water level, the normally closed contact opens and the normally open contact opens, achieving functional conversion. After the pressure drops to the reset water level, the normally open contact opens and the normally closed contact opens, restoring the initial function.

② The sewage water level pressure switch joint control system provides local high alarm water level, pump on water level, pump off water level, and low alarm water level display, and realizes local automatic control of water pump start and stop, outputting liquid level signals to the control room EMCS, realizing remote monitoring, water level alarm, and liquid level meter fault alarm of the control room EMCS

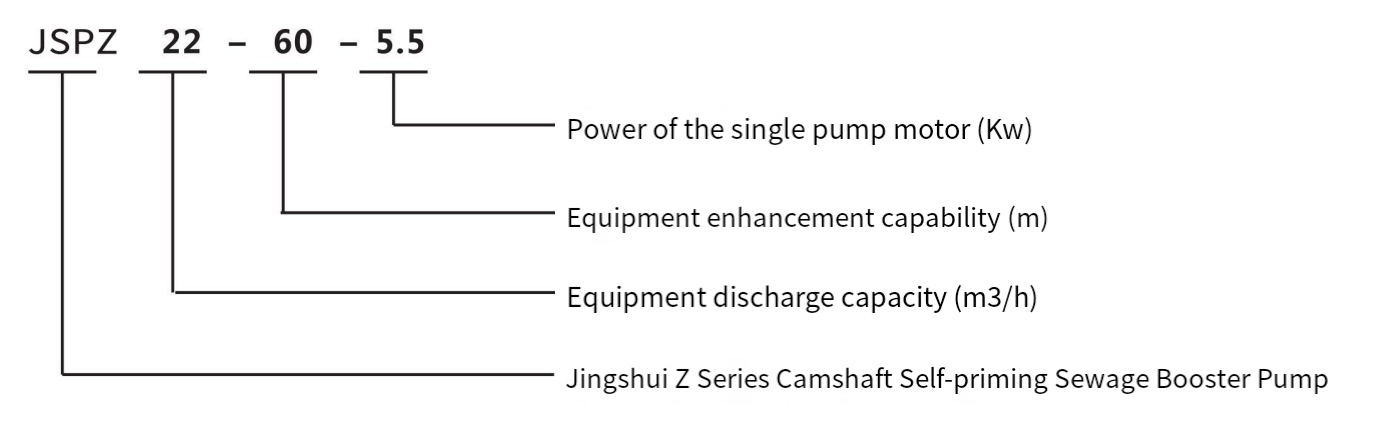

Model Description

Performance parameters and installation dimensions

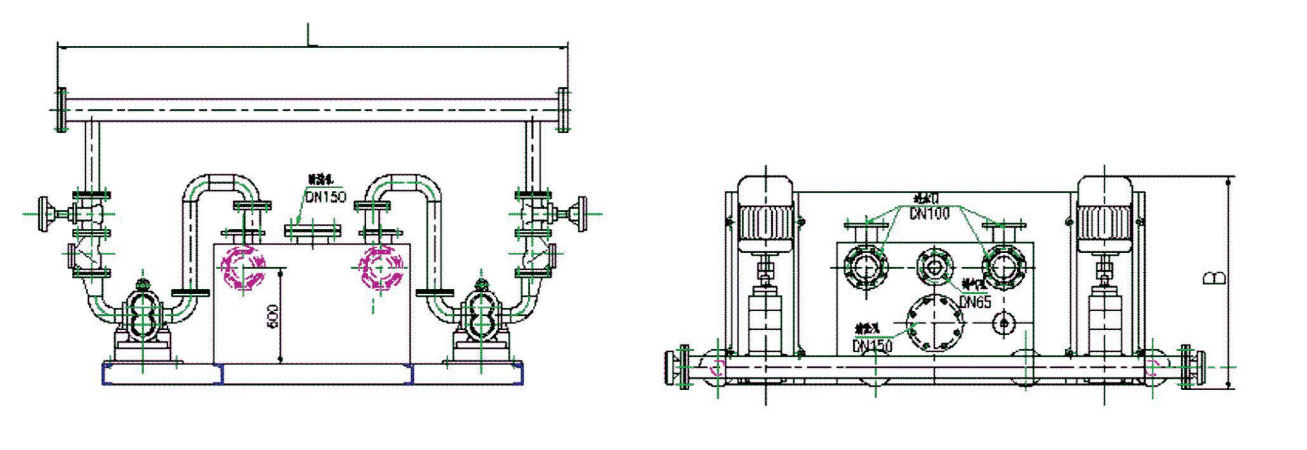

1. Overall installation method

Serial number	Model	Emission capacity	enhance capabilities	Motor power	Water collection tank		Inlet pipe diameter	Diameter of outlet pipe	L	B
Serial number	Model	m³/h	m	Kw	Total volume (m³)	Quantity	mm	mm	mm	mm
1	JSPZ15-20-2.2	15	20	2.2	0.56	1	100	80	2500	1020
2	JSPZ15-30-3		30	3	0.56	1	100	80	2500	1050
3	JSPZ15-40-4		40	4	0.56	1	100	80	2500	1080
4	JSPZ15-50-4		50	4	0.56	1	100	80	2500	1080
5	JSPZ15-60-5.5		60	5.5	0.56	1	100	80	2500	1150
6	JSPZ18-20-2.2	18	20	2.2	0.56	1	100	80	2500	1020
7	JSPZ18-30-3		30	3	0.56	1	100	80	2500	1050
8	JSPZ18-40-4		40	4	0.56	1	100	80	2500	1080
9	JSPZ18-50-5.5		50	5.5	0.56	1	100	80	2500	1150
10	JSPZ18-60-5.5		60	5.5	0.56		100	80	2500	1150
11	JSPZ21-20-3	21	20	3	0.56	1	100	80	2500	1050
12	JSPZ21-30-4		30	4	0.56	1	100	80	2500	1080
13	JSPZ21-40-5.5		40	5.5	0.56	1	100	80	2500	1150
14	JSPZ21-50-5.5		50	5.5	0.56	1	100	80	2500	1150
15	JSPZ21-60-7.5		60	7.5	0.56		100	80	2500	1180
16	JSPZ25-20-3	25	20	3	0.56	1	100	100	2650	1250
17	JSPZ25-30-4		30	4	0.56	1	100	100	2650	1280
18	JSPZ25-40-5.5		40	5.5	0.56	1	100	100	2650	1350
19	JSPZ25-50-5.5		50	5.5	0.56	1	100	100	2650	1350
20	JSPZ25-60-7.5		60	7.5	0.56	1	100	100	2650	1380
21	JSPZ30-20-4	30	20	4	0.56	1	100	100	2650	1280
22	JSPZ30-30-5.5		30	5.5	0.56	1	100	100	2650	1350
23	JSPZ30-40-5.5		40	5.5	0.56	1	100	100	2650	1350
24	JSPZ30-50-7.5		50	7.5	0.56	1	100	100	2650	1380
25	JSPZ30-60-7.5		60	7.5	0.56	1	100	100	2650	1380
26	JSPZ36-20-4	36	20	4	0.56	1	100	100	2650	1280
27	JSPZ36-30-5.5		30	5.5	0.56	1	100	100	2650	1350
28	JSPZ36-40-7.5		40	7.5	0.56	1	100	100	2650	1380
29	JSPZ36-50-11		50	11	0.56	1	100	100	2650	1500
30	JSPZ36-60-11		60	11	0.56	1	100	100	2650	1500
31	JSPZ40-20-5.5	40	20	5.5	0.56	1	100	100	2650	1350
32	JSPZ40-30-7.5		30	7.5	0.56	1	100	100	2650	1380
33	JSPZ36-40-7.5		40	7.5	0.56	1	100	100	2650	1380
34	JSPZ40-50-11		50	11	0.56	1	100	100	2650	1500
35	JSPZ40-60-11		60	11	0.56	1	100	100	2650	1500
36	JSPZ46-20-5.5	46	20	5.5	1.12	2	100	100	2650	2000
37	JSPZ46-30-7.5		30	7.5	1.12	2	100	100	2650	2000
38	JSPZ46-40-11		40	11	1.12	2	100	100	2650	2000
39	JSPZ46-50-11		50	11	1.12	2	100	100	2650	2000
40	JSPZ46-60-15		60	15	1.12	2	100	100	2650	2000
41	JSPZ52-20-7.5	52	20	7.5	1.12	2	100	100	2800	2000
42	JSPZ52-30-7.5		30	7.5	1.12	2	100	100	2800	2000
43	JSPZ52-40-11		40	11	1.12	2	100	100	2800	2000
44	JSPZ52-50-11		50	11	1.12	2	100	100	2800	2000
45	JSPZ52-60-15		60	15	1.12	2	100	100	2800	2000

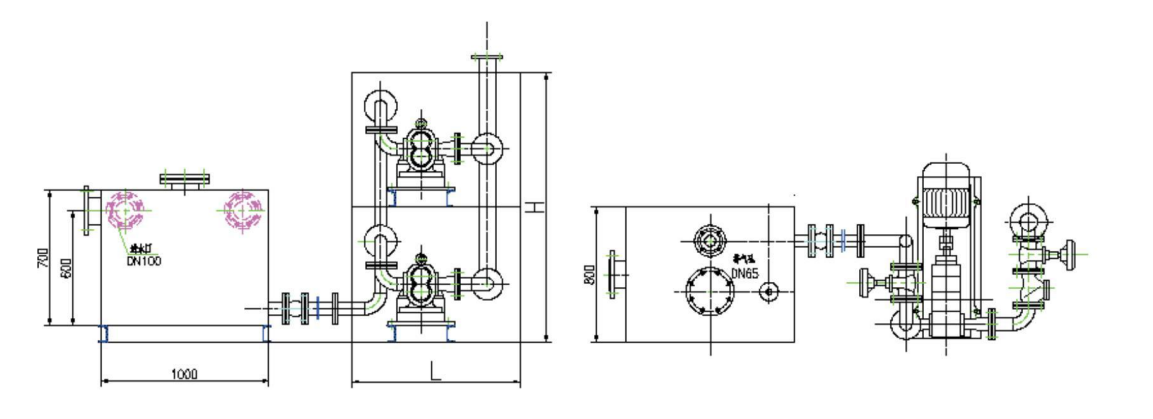

2. Whole and split installation methods

Serial number	Model	Emission capacity	enhance capabilities	Motor power	Water collection tank		Inlet pipe diameter	Diameter of outlet pipe	L	H
Serial number	Model	m³/h	m	Kw	Total volume (m³)	Quantity	mm	mm	mm	mm
1	JSPZ15-20-2.2	15	20	2.2	0.56	1	100	80	1000	1600
2	JSPZ15-30-3		30	3	0.56	1	100	80	1000	1600
3	JSPZ15-40-4		40	4	0.56	1	100	80	1000	1600
4	JSPZ15-50-4		50	4	0.56	1	100	80	1000	1600
5	JSPZ15-60-5.5		60	5.5	0.56	1	100	80	1000	1600
6	JSPZ18-20-2.2	18	20	22	0.56	1	100	80	1000	1600
7	JSPZ18-30-3		30	3	0.56	1	100	80	1000	1600
8	JSPZ18-40-4		40	4	0.56	1	100	80	1000	1600
9	JSPZ18-50-5.5		50	5.5	0.56	1	100	80	1000	1600
10	JSPZ18-60-5.5		60	5.5	0.56	1	100	80	1000	1600
11	JSPZ21-20-3	15	20	3	0.56	1	100	80	1000	1600
12	JSPZ21-30-4		30	4	0.56	1	100	80	1000	1600
13	JSPZ21-40-5.5		40	5.5	0.56	1	100	80	1000	1600
14	JSPZ21-50-5.5		50	5.5	0.56	1	100	80	1000	1600
15	JSPZ21-60-7.5		60	7.5	0.56	1	100	80	1000	1600
16	JSPZ25-20-3	18	20	3	0.56	1	100	100	1000	1600
17	JSPZ25-30-4		30	4	0.56	1	100	100	1000	1600
18	JSPZ25-40-5.5		40	5.5	0.56	1	100	100	1000	1600
19	JSPZ25-50-5.5		50	5.5	0.56	1	100	100	1000	1600
20	JSPZ25-60-7.5		60	7.5	0.56	1	100	100	1000	1600
21	JSPZ30-20-4	21	20	4	0.56	1	100	100	1000	1600
22	JSPZ30-30-5.5		30	5.5	0.56	1	100	100	1000	1600
23	JSPZ30-40-5.5		40	5.5	0.56	1	100	100	1000	1600
24	JSPZ30-50-7.5		50	7.5	0.56	1	100	100	1000	1600
25	JSPZ30-60-7.5		60	7.5	0.56	1	100	100	1000	1600
26	JSPZ36-20-4	25	20	4	0.56	1	100	100	1000	1600
27	JSPZ36-30-5.5		30	5.5	0.56	1	100	100	1000	1600
28	JSPZ36-40-7.5		40	7.5	0.56	1	100	100	1000	1600
29	JSPZ36-50-11		50	11	0.56	1	100	100	1300	1800
30	JSPZ36-60-11		60	11	0.56	1	100	100	1300	1800
31	JSPZ40-20-5.5	30	20	5.5	0.56	1	100	100	1000	1600
32	JSPZ40-30-7.5		30	7.5	0.56	1	100	100	1000	1600
33	JSPZ36-40-7.5		40	7.5	0.56	1	100	100	1000	1600
34	JSPZ40-50-11		50	11	0.56	1	100	100	1300	1800
35	JSPZ40-60-11		60	11	0.56	1	100	100	1300	1800
36	JSPZ46-20-5.5	36	20	5.5	1.12	2	100	100	1000	1600
37	JSPZ46-30-7.5		30	7.5	1.12	2	100	100	1000	1600
38	JSPZ46-40-11		40	11	1.12	2	100	100	1300	1800
39	JSPZ46-50-11		50	11	1.12	2	100	100	1300	1800
40	JSPZ46-60-15		60	15	1.12	2	100	100	1300	1800
41	JSPZ52-20-7.5	40	20	7.5	1.12	2	100	100	1000	1600
42	JSPZ52-30-7.5		30	7.5	1.12	2	100	100	1000	1600
43	JSPZ52-40-11		40	11	1.12	2	100	100	1300	1800
44	JSPZ52-50-11		50	11	1.12	2	100	100	1300	1800
45	JSPZ52-60-15		60	15	1.12	2	100	100	1300	1800

Note: The box body, inlet pipe position and diameter, outlet pipe and ventilation pipe diameter of the sewage elevator can be manufactured according to the actual situation on site.
