Fire Pumps

XBD-L Vertical Single-Stage Single-Suction Fire Pump

Product Overview
The XBD-JSL type fire pump set is designed for the transportation of clear water and liquids with physical and chemical properties similar to water, excluding solid particles. It is primarily used for pressurizing and delivering water in fire protection systems, and can also be applied in industrial and mining water supply and drainage. The flow rate range for the transported liquid is 5~80 L/s, with a pressure range of 0.2~2.25 MPa. The matching power range is 1.5~200 kW, and the diameter range is φ50~φ250 mm.

Usage
The XBD-JSL fire pump set is primarily used for pressurizing and supplying water in fire protection system pipelines. It is also suitable for industrial and urban water supply and drainage, pressurizing and supplying water in high-rise buildings, long-distance water delivery, heating, bathroom systems, boiler cold and warm water circulation pressurization, air conditioning refrigeration systems, and equipment matching in various applications.

Features of 3C Certified Fire Pumps
The stainless steel 304 precision-cast impeller and stainless steel shaft are made from corrosion-resistant materials, ensuring the product remains rust-free and free from jamming. The QT400-18 cast pump body and pump cover, along with SiC wear-resistant mechanical seals, utilize high-standard materials for long-lasting durability. The pump features an imported vacuum pressure gauge at the inlet and a pressure gauge at the outlet, enabling real-time monitoring of inlet and outlet pressures.

+ Contact us

NEXT: XBD-W Diesel Engine Horizontal Single-Stage Single-Suction Fire Pump

Product Description

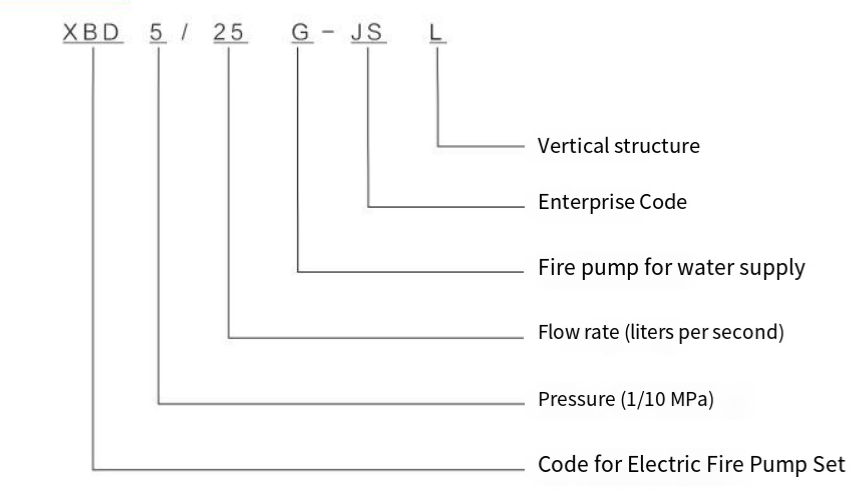

Equipment Model Significance

Performance Parameters

Specification Model	Rated Flow(L/s)	Rated Pressure(MPa)	Rated Speed(r/min)	Motor Power(KW)
XBD3.2/5G-JSL	5	0.32	2900	3
XBD4.0/5G-JSL	5	0.40	2900	5.5
XBD4.5/5G-JSL	5	0.45	2900	7.5
XBD4.5/5G-JSL	5	0.45	2900	4
XBD5.0/5G-JSL	5	0.50	2900	5.5
XBD6.0/5G-JSL	5	0.60	2900	7.5
XBD7.0/5G-JSL	5	0.70	2900	7.5
XBD8.0/5G-JSL	5	0.80	2900	11
XBD8.3/5G-JSL	5	0.83	2900	11
XBD9.0/5G-JSL	5	0.90	2900	15
XBD10.0/5G-JSL	5	1.00	2900	18.5
XBD11.0/5G-JSL	5	1.10	2900	22
XBD12.0/5G-JSL	5	1.20	2900	22
XBD12.5/5G-JSL	5	1.25	2900	30
XBD3.0/10G-JSL	10	0.30	2900	7.5
XBD3.2/10G-JSL	10	0.32	2900	7.5
XBD4.0/10G-JSL	10	0.40	2900	7.5
XBD4.5/10G-JSL	10	0.45	2900	11
XBD5.0/10G-JSL	10	0.50	2900	11
XBD6.0/10G-JSL	10	0.60	2900	15
XBD6.5/10G-JSL	10	0.65	2900	18.5
XBD7.0/10G-JSL	10	0.70	2900	18.5
XBD7.0/10G-JSL	10	0.70	2900	22
XBD8.0/10G-JSL	10	0.80	2900	22
XBD8.3/10G-JSL	10	0.83	2900	22
XBD9.0/10G-JSL	10	0.90	2900	22
XBD10.0/10G-JSL	10	1.00	2900	30
XBD11.0/10G-JSL	10	1.10	2900	30
XBD12.0/10G-JSL	10	1.20	2900	37
XBD13.0/10G-JSL	10	1.30	2900	37
XBD14.0/10G-JSL	10	1.40	2900	45
XBD3.0/15G-JSL	15	0.30	2900	7.5
XBD3.2/15G-JSL	15	0.32	2900	7.5
XBD3.9/15G-JSL	15	0.39	2900	15
XBD4.0/15G-JSL	15	0.40	2900	11
XBD4.5/15G-JSL	15	0.45	2900	11
XBD5.0/15G-JSL	15	0.50	2900	15
XBD6.0/15G-JSL	15	0.60	2900	15
XBD6.5/15G-JSL	15	0.65	2900	30
XBD7.0/15G-JSL	15	0.70	2900	18.5
XBD7.0/15G-JSL	15	0.70	2900	22
XBD8.0/15G-JSL	15	0.80	2900	22
XBD8.3/15G-JSL	15	0.83	2900	22
XBD9.0/15G-JSL	15	0.90	2900	30
XBD9.3/15G-JSL	15	0.93	2900	45
XBD10.0/15G-JSL	15	1.00	2900	30
XBD11.0/15G-JSL	15	1.10	2900	30
XBD12.0/15G-JSL	15	1.20	2900	37
XBD12.5/15G-JSL	15	1.25	2900	37
XBD13.0/15G-JSL	15	1.30	2900	37
XBD14.0/15G-JSL	15	1.40	2900	45
XBD15.0/15G-JSL	15	1.50	2900	55
XBD16.0/15G-JSL	15	1.60	2900	75
XBD3.0/20G-JSL	20	0.30	2900	11
XBD3.2/20G-JSL	20	0.32	2900	15
XBD4.0/20G-JSL	20	0.40	2900	15
XBD4.5/20G-JSL	20	0.45	2900	18.5
XBD5.0/20G-JSL	20	0.50	2900	18.5
XBD5.2/20G-JSL	20	0.52	2900	22
XBD6.0/20G-JSL	20	0.60	2900	22
XBD7.0/20G-JSL	20	0.70	2900	30
XBD8.0/20G-JSL	20	0.80	2900	30
XBD8.5/20G-JSL	20	0.85	2900	37
XBD9.0/20G-JSL	20	0.90	2900	37
XBD10.0/20G-JSL	20	1.00	2900	45
XBD11.0/20G-JSL	20	1.10	2900	45
XBD12.0/20G-JSL	20	1.20	2900	55
XBD12.5/20G-JSL	20	1.25	2900	55
XBD13.0/20G-JSL	20	1.30	2900	55
XBD14.0/20G-JSL	20	1.40	2900	75
XBD15.0/20G-JSL	20	1.50	2900	90
XBD16.0/20G-JSL	20	1.60	2900	90
XBD3.0/25G-JSL	25	0.30	2900	15
XBD3.2/25G-JSL	25	0.32	2900	15
XBD4.0/25G-JSL	25	0.40	2900	18.5
XBD4.3/25G-JSL	25	0.43	2900	18.5
XBD4.5/25G-JSL	25	0.45	2900	18.5
XBD5.0/25G-JSL	25	0.50	2900	22
XBD6.0/25G-JSL	25	0.60	2900	22
XBD7.0/25G-JSL	25	0.70	2900	30
XBD7.2/25G-JSL	25	0.72	2900	37
XBD8.0/25G-JSL	25	0.80	2900	37
XBD8.3/25G-JSL	25	0.83	2900	37
XBD8.5/25G-JSL	25	0.85	2900	37
XBD9.0/25G-JSL	25	0.90	2900	37
XBD10.0/25G-JSL	25	1.00	2900	45
XBD10.5/25G-JSL	25	1.05	2900	55
XBD11.0/25G-JSL	25	1.10	2900	55
XBD11.5/25G-JSL	25	1.15	2900	55
XBD12.0/25G-JSL	25	1.20	2900	55
XBD13.0/25G-JSL	25	1.30	2900	75
XBD14.0/25G-JSL	25	1.40	2900	75
XBD15.0/25G-JSL	25	1.50	2900	90
XBD16.0/25G-JSL	25	1.60	2900	110
XBD3.0/30G-JSL	30	0.30	2900	15
XBD3.2/30G-JSL	30	0.32	2900	15
XBD4.0/30G-JSL	30	0.40	2900	18.5
XBD5.0/30G-JSL	30	0.50	2900	22
XBD6.0/30G-JSL	30	0.60	2900	22
XBD7.0/30G-JSL	30	0.70	2900	30
XBD7.3/30G-JSL	30	0.73	2900	37
XBD7.5/30G-JSL	30	0.75	2900	45
XBD8.0/30G-JSL	30	0.80	2900	37
XBD8.3/30G-JSL	30	0.83	2900	37
XBD9.0/30G-JSL	30	0.90	2900	45
XBD10.0/30G-JSL	30	1.00	2900	45
XBD11.0/30G-JSL	30	1.10	2900	55
XBD12.5/30G-JSL	30	1.25	2900	75
XBD13.0/30G-JSL	30	1.30	2900	75
XBD14.0/30G-JSL	30	1.40	2900	75
XBD15.0/30G-JSL	30	1.50	2900	110
XBD16.0/30G-JSL	30	1.60	2900	110
XBD3.0/35G-JSL	35	0.30	2900	22
XBD3.2/35G-JSL	35	0.32	2900	18.5
XBD3.2/35G-JSL	35	0.32	2900	22
XBD4.0/35G-JSL	35	0.40	2900	22
XBD4.5/35G-JSL	35	0.45	2900	22
XBD5.0/35G-JSL	35	0.50	2900	22
XBD6.0/35G-JSL	35	0.60	2900	30
XBD7.0/35G-JSL	35	0.70	2900	37
XBD7.5/35G-JSL	35	0.75	2900	45
XBD8.0/35G-JSL	35	0.80	2900	45
XBD8.3/35G-JSL	35	0.83	2900	55
XBD9.0/35G-JSL	35	0.90	2900	55
XBD10.0/35G-JSL	35	1.00	2900	55
XBD11.0/35G-JSL	35	1.10	2900	75
XBD12.0/35G-JSL	35	1.20	2900	75
XBD13.0/35G-JSL	35	1.30	2900	90
XBD14.0/35G-JSL	35	1.40	2900	90
XBD15.0/35G-JSL	35	1.50	2900	110
XBD16.0/35G-JSL	35	1.60	2900	132
XBD3.2/40G-JSL	40	0.32	2900	22
XBD4.0/40G-JSL	40	0.40	2900	30
XBD5.0/40G-JSL	40	0.50	2900	37
XBD6.0/40G-JSL	40	0.60	2900	37
XBD7.0/40G-JSL	40	0.70	2900	45
XBD8.0/40G-JSL	40	0.80	2900	55
XBD9.0/40G-JSL	40	0.90	2900	55
XBD10.0/40G-JSL	40	1.00	2900	75
XBD11.0/40G-JSL	40	1.10	2900	75
XBD12.0/40G-JSL	40	1.20	2900	90
XBD13.0/40G-JSL	40	1.30	2900	90
XBD14.0/40G-JSL	40	1.40	2900	90
XBD15.0/40G-JSL	40	1.50	2900	110
XBD16.0/40G-JSL	40	1.60	2900	132
XBD3.0/45G-JSL	45	0.30	2900	22
XBD4.0/45G-JSL	45	0.40	2900	30
XBD5.0/45G-JSL	45	0.50	2900	37
XBD6.0/45G-JSL	45	0.60	2900	37
XBD7.0/45G-JSL	45	0.70	2900	45
XBD8.0/45G-JSL	45	0.80	2900	55
XBD9.0/45G-JSL	45	0.90	2900	55
XBD10.0/45G-JSL	45	1.00	2900	75
XBD11.0/45G-JSL	45	1.10	2900	75
XBD12.0/45G-JSL	45	1.20	2900	90
XBD13.0/45G-JSL	45	1.30	2900	90
XBD13.5/45G-JSL	45	1.35	2900	90
XBD14.0/45G-JSL	45	1.40	2900	110
XBD15.0/45G-JSL	45	1.50	2900	110
XBD16.0/45G-JSL	45	1.60	2900	132
XBD3.0/50G-JSL	50	0.30	2900	30
XBD4.0/50G-JSL	50	0.40	2900	37
XBD5.0/50G-JSL	50	0.50	2900	45
XBD6.0/50G-JSL	50	0.60	2900	45
XBD7.0/50G-JSL	50	0.70	2900	55
XBD7.0/50G-JSL	50	0.70	2900	75
XBD8.0/50G-JSL	50	0.80	2900	75
XBD9.0/50G-JSL	50	0.90	2900	75
XBD10.0/50G-JSL	50	1.00	2900	90
XBD11.0/50G-JSL	50	1.10	2900	90
XBD12.0/50G-JSL	50	1.20	2900	110
XBD13.0/50G-JSL	50	1.30	2900	110
XBD13.5/50G-JSL	50	1.35	2900	132
XBD14.0/50G-JSL	50	1.40	2900	132
XBD15.0/50G-JSL	50	1.50	2900	160
XBD16.0/50G-JSL	50	1.60	2900	160
XBD4.0/55G-JSL	55	0.40	2900	37
XBD5.0/55G-JSL	55	0.50	2900	45
XBD6.0/55G-JSL	55	0.60	2900	45
XBD7.0/55G-JSL	55	0.70	2900	55
XBD8.0/55G-JSL	55	0.80	2900	75
XBD9.0/55G-JSL	55	0.90	2900	75
XBD10.0/55G-JSL	55	1.00	2900	90
XBD11.0/55G-JSL	55	1.10	2900	90
XBD12.0/55G-JSL	55	1.20	2900	110
XBD12.0/55G-JSL	55	1.20	2900	132
XBD13.0/55G-JSL	55	1.30	2900	110
XBD14.0/55G-JSL	55	1.40	2900	132
XBD15.0/55G-JSL	55	1.50	2900	160
XBD16.0/55G-JSL	55	1.60	2900	200
XBD4.0/60G-JSL	60	0.40	2900	37
XBD4.5/60G-JSL	60	0.45	2900	45
XBD5.0/60G-JSL	60	0.50	2900	45
XBD5.5/60G-JSL	60	0.55	2900	55
XBD6.0/60G-JSL	60	0.60	2900	55
XBD6.5/60G-JSL	60	0.65	2900	75
XBD7.0/60G-JSL	60	0.70	2900	75
XBD7.5/60G-JSL	60	0.75	2900	75
XBD8.0/60G-JSL	60	0.80	2900	75
XBD8.5/60G-JSL	60	0.85	2900	75
XBD9.0/60G-JSL	60	0.90	2900	90
XBD9.5/60G-JSL	60	0.95	2900	90
XBD10.0/60G-JSL	60	1.00	2900	110
XBD10.5/60G-JSL	60	1.05	2900	90
XBD11.0/60G-JSL	60	1.10	2900	132
XBD11.5/60G-JSL	60	1.15	2900	110
XBD12.0/60G-JSL	60	1.20	2900	132
XBD12.5/60G-JSL	60	1.25	2900	110
XBD13.0/60G-JSL	60	1.30	2900	132
XBD14.0/60G-JSL	60	1.40	2900	160
XBD15.0/60G-JSL	60	1.50	2900	200
XBD16.0/60G-JSL	60	1.60	2900	200
XBD4.0/65G-JSL	65	0.40	2900	45
XBD5.0/65G-JSL	65	0.50	2900	55
XBD6.0/65G-JSL	65	0.60	2900	55
XBD7.0/65G-JSL	65	0.70	2900	75
XBD8.0/65G-JSL	65	0.80	2900	75
XBD9.0/65G-JSL	65	0.90	2900	90
XBD10.0/65G-JSL	65	1.00	2900	90
XBD11.0/65G-JSL	65	1.10	2900	110
XBD12.0/65G-JSL	65	1.20	2900	132
XBD13.0/65G-JSL	65	1.30	2900	132
XBD14.0/65G-JSL	65	1.30	2900	160
XBD15.0/65G-JSL	65	1.30	2900	185
XBD16.0/65G-JSL	65	1.30	2900	200
XBD4.0/70G-JSL	70	0.40	2900	55
XBD4.5/70G-JSL	70	0.45	2900	45
XBD5.0/70G-JSL	70	0.50	2900	75
XBD5.5/70G-JSL	70	0.55	2900	55
XBD6.0/70G-JSL	70	0.60	2900	75
XBD6.5/70G-JSL	70	0.65	2900	55
XBD7.0/70G-JSL	70	0.70	2900	90
XBD7.5/70G-JSL	70	0.75	2900	75
XBD8.0/70G-JSL	70	0.80	2900	110
XBD8.0/70G-JSL	70	0.80	2900	132
XBD8.5/70G-JSL	70	0.85	2900	90
XBD9.0/70G-JSL	70	0.90	2900	90
XBD10.0/70G-JSL	70	1.00	2900	110
XBD11.0/70G-JSL	70	1.10	2900	110
XBD12.0/70G-JSL	70	1.20	2900	110
XBD13.0/70G-JSL	70	1.30	2900	132
XBD14.0/70G-JSL	70	1.40	1480	185
XBD15.0/70G-JSL	70	1.50	1480	200
XBD16.0/70G-JSL	70	1.60	1480	200
XBD4.0/75G-JSL	75	0.40	2900	45
XBD5.0/75G-JSL	75	0.50	2900	55
XBD6.0/75G-JSL	75	0.60	2900	55
XBD7.0/75G-JSL	75	0.70	2900	90
XBD8.0/75G-JSL	75	0.80	2900	90
XBD9.0/75G-JSL	75	0.90	2900	90
XBD10.0/75G-JSL	75	1.00	2900	110
XBD11.0/75G-JSL	75	1.10	2900	110

XBD12.0/75G-JSL	75	1.20	2900	132

XBD13.0/75G-JSL	75	1.30	2900	160

XBD4.0/80G-JSL	80	0.40	2900	55

XBD5.0/80G-JSL	80	0.50	2900	75

XBD6.0/80G-JSL	80	0.60	2900	75

XBD7.0/80G-JSL	80	0.70	2900	90

XBD8.0/80G-JSL	80	0.80	2900	90

XBD9.0/80G-JSL	80	0.90	2900	90

XBD10.0/80G-JSL	80	1.00	2900	110

XBD11.0/80G-JSL	80	1.10	2900	132
XBD12.0/80G-JSL	80	1.20	2900	160
XBD13.0/80G-JSL	80	1.30	2900	200
XBD14.0/80G-JSL	80	1.40	1480	200

XBD15.0/80G-JSL	80	1.50	1480	200

XBD16.0/80G-JSL	80	1.60	1480	220

XBD3.0/90G-JSL	90	0.32	1480	45

XBD4.0/90G-JSL	90	0.40	1480	75

XBD5.0/90G-JSL	90	0.50	1480	55

XBD6.0/90G-JSL	90	0.60	1480	75

XBD7.0/90G-JSL	90	0.70	1480	75

XBD8.0/90G-JSL	90	0.80	1480	90

XBD8.5/90G-JSL	90	0.85	1480	110
XBD9.0/90G-JSL	90	0.90	1480	132
XBD10.0/90G-JSL	90	1.00	1480	160
XBD11.0/90G-JSL	90	1.10	1480	160
XBD12.0/90G-JSL	90	1.20	1480	185

XBD13.0/90G-JSL	90	1.30	1480	200

XBD14.0/90G-JSL	90	1.40	1480	220

XBD15.0/90G-JSL	90	1.50	1480	250

XBD16.0/90G-JSL	90	1.60	1480	250

XBD3.0/100G-JSL	100	0.32	1480	45

XBD4.0/100G-JSL	100	0.40	1480	75

XBD5.0/100G-JSL	100	0.50	1480	75

XBD6.0/100G-JSL	100	0.60	1480	75

XBD7.0/100G-JSL	100	0.70	1480	110
XBD8.0/100G-JSL	100	0.80	1480	132
XBD8.5/100G-JSL	100	0.85	1480	160
XBD9.0/100G-JSL	100	0.90	1480	160
XBD10.0/100G-JSL	100	1.00	1480	160
XBD11.0/100G-JSL	100	1.10	1480	200

XBD12.0/100G-JSL	100	1.20	1480	220

XBD13.0/100G-JSL	100	1.30	1480	250

XBD14.0/100G-JSL	100	1.40	1480	250

XBD15.0/100G-JSL	100	1.50	1480	280

XBD16.0/100G-JSL	100	1.60	1480	280

XBD5.0/105G-JSL	105	0.50	1480	90

XBD6.0/105G-JSL	105	0.60	1480	110

XBD7.0/105G-JSL	105	0.70	1480	110
XBD8.0/105G-JSL	105	0.80	1480	132
XBD8.5/105G-JSL	105	0.85	1480	160
XBD3.0/110G-JSL	110	0.32	1480	55
XBD4.0/110G-JSL	110	0.40	1480	75
XBD5.0/110G-JSL	110	0.50	1480	90
XBD6.0/110G-JSL	110	0.60	1480	110
XBD7.0/110G-JSL	110	0.70	1480	132
XBD8.0/110G-JSL	110	0.80	1480	132
XBD8.5/110G-JSL	110	0.85	1480	160
XBD9.0/110G-JSL	110	0.90	1480	160
XBD10.0/110G-JSL	110	1.00	1480	185
XBD11.0/110G-JSL	110	1.10	1480	200
XBD12.0/110G-JSL	110	1.20	1480	220
XBD13.0/110G-JSL	110	1.30	1480	250
XBD14.0/110G-JSL	110	1.40	1480	280
XBD15.0/110G-JSL	110	1.50	1480	315
XBD16.0/110G-JSL	110	1.60	1480	315
XBD4.0/115G-JSL	115	0.40	1480	75
XBD5.0/115G-JSL	115	0.50	1480	90
XBD6.0/115G-JSL	115	0.60	1480	110
XBD7.0/115G-JSL	115	0.70	1480	132
XBD8.0/115G-JSL	115	0.80	1480	160
XBD8.5/115G-JSL	115	0.85	1480	160
XBD3.0/120G-JSL	120	0.30	1480	55
XBD4.0/120G-JSL	120	0.40	1480	75
XBD5.0/120G-JSL	120	0.50	1480	90
XBD6.0/120G-JSL	120	0.60	1480	110
XBD7.0/120G-JSL	120	0.70	1480	132
XBD8.0/120G-JSL	120	0.80	1480	160
XBD8.5/120G-JSL	120	0.85	1480	160
XBD9.0/120G-JSL	120	0.90	1480	185
XBD10.0/120G-JSL	120	1.00	1480	200
XBD11.0/120G-JSL	120	1.10	1480	250
XBD12.0/120G-JSL	120	1.20	1480	250
XBD13.0/120G-JSL	120	1.30	1480	315
XBD14.0/120G-JSL	120	1.40	1480	315
XBD15.0/120G-JSL	120	1.50	1480	315
XBD16.0/120G-JSL	120	1.60	1480	335
XBD4.0/125G-JSL	125	0.40	1480	90
XBD5.0/125G-JSL	125	0.50	1480	110
XBD6.0/125G-JSL	125	0.60	1480	132
XBD7.0/125G-JSL	125	0.70	1480	160
XBD8.0/125G-JSL	125	0.80	1480	185
XBD8.5/125G-JSL	125	0.85	1480	185
XBD3.0/130G-JSL	130	0.30	1480	75
XBD4.0/130G-JSL	130	0.40	1480	90
XBD5.0/130G-JSL	130	0.50	1480	110
XBD6.0/130G-JSL	130	0.60	1480	132
XBD7.0/130G-JSL	130	0.70	1480	160
XBD8.0/130G-JSL	130	0.80	1480	185
XBD8.5/130G-JSL	130	0.85	1480	200
XBD9.0/130G-JSL	130	0.90	1480	200
XBD10.0/130G-JSL	130	1.00	1480	220
XBD11.0/130G-JSL	130	1.10	1480	250
XBD12.0/130G-JSL	130	1.20	1480	250
XBD13.0/130G-JSL	130	1.30	1480	300
XBD14.0/130G-JSL	130	1.40	1480	335
XBD15.0/130G-JSL	130	1.50	1480	355
XBD16.0/130G-JSL	130	1.60	1480	375
XBD4.0/135G-JSL	135	0.40	1480	90
XBD5.0/135G-JSL	135	0.50	1480	110
XBD6.0/135G-JSL	135	0.60	1480	132
XBD7.0/135G-JSL	135	0.70	1480	160
XBD8.0/135G-JSL	135	0.80	1480	185
XBD8.5/135G-JSL	135	0.85	1480	200
XBD3.0/140G-JSL	140	0.30	1480	75
XBD4.0/140G-JSL	140	0.40	1480	90
XBD5.0/140G-JSL	140	0.50	1480	110
XBD6.0/140G-JSL	140	0.60	1480	132
XBD7.0/140G-JSL	140	0.70	1480	160
XBD8.0/140G-JSL	140	0.80	1480	185
XBD9.0/140G-JSL	140	0.90	1480	220
XBD10.0/140G-JSL	140	1.00	1480	250
XBD11.0/140G-JSL	140	1.10	1480	250
XBD12.0/140G-JSL	140	1.20	1480	280
XBD13.0/140G-JSL	140	1.30	1480	335
XBD14.0/140G-JSL	140	1.40	1480	355
XBD15.0/140G-JSL	140	1.50	1480	375
XBD16.0/140G-JSL	140	1.60	1480	400
XBD3.0/150G-JSL	150	0.30	1480	75
XBD4.0/150G-JSL	150	0.40	1480	110
XBD5.0/150G-JSL	150	0.50	1480	132
XBD6.0/150G-JSL	150	0.60	1480	160
XBD7.0/150G-JSL	150	0.70	1480	160
XBD8.0/150G-JSL	150	0.80	1480	200
XBD9.0/150G-JSL	150	0.90	1480	220
XBD10.0/150G-JSL	150	1.00	1480	250
XBD11.0/150G-JSL	150	1.10	1480	280
XBD12.0/150G-JSL	150	1.20	1480	300
XBD13.0/150G-JSL	150	1.30	1480	355
XBD14.0/150G-JSL	150	1.40	1480	375
XBD15.0/150G-JSL	150	1.50	1480	400
XBD16.0/150G-JSL	150	1.60	1480	425
XBD3.0/160G-JSL	160	0.30	1480	90
XBD4.0/160G-JSL	160	0.40	1480	110
XBD5.0/160G-JSL	160	0.50	1480	132
XBD6.0/160G-JSL	160	0.60	1480	160
XBD7.0/160G-JSL	160	0.70	1480	185
XBD8.0/160G-JSL	160	0.80	1480	220
XBD9.0/160G-JSL	160	0.90	1480	250
XBD10.0/160G-JSL	160	1.00	1480	280
XBD11.0/160G-JSL	160	1.10	1480	300
XBD12.0/160G-JSL	160	1.20	1480	315
XBD13.0/160G-JSL	160	1.30	1480	375
XBD14.0/160G-JSL	160	1.40	1480	400
XBD15.0/160G-JSL	160	1.50	1480	425
XBD16.0/160G-JSL	160	1.60	1480	450
XBD3.0/170G-JSL	170	0.30	1480	90
XBD4.0/170G-JSL	170	0.40	1480	110
XBD5.0/170G-JSL	170	0.50	1480	132
XBD6.0/170G-JSL	170	0.60	1480	160
XBD7.0/170G-JSL	170	0.70	1480	185
XBD8.0/170G-JSL	170	0.80	1480	220
XBD9.0/170G-JSL	170	0.90	1480	250
XBD10.0/170G-JSL	170	1.00	1480	280
XBD11.0/170G-JSL	170	1.10	1480	315
XBD12.0/170G-JSL	170	1.20	1480	335
XBD13.0/170G-JSL	170	1.30	1480	400
XBD14.0/170G-JSL	170	1.40	1480	425
XBD15.0/170G-JSL	170	1.50	1480	450
XBD16.0/170G-JSL	170	1.60	1480	500
XBD3.0/180G-JSL	180	0.30	1480	90
XBD4.0/180G-JSL	180	0.40	1480	132
XBD5.0/180G-JSL	180	0.50	1480	160
XBD6.0/180G-JSL	180	0.60	1480	185
XBD7.0/180G-JSL	180	0.70	1480	200
XBD8.0/180G-JSL	180	0.80	1480	250
XBD9.0/180G-JSL	180	0.90	1480	280
XBD10.0/180G-JSL	180	1.00	1480	300
XBD11.0/180G-JSL	180	1.10	1480	335
XBD12.0/180G-JSL	180	1.20	1480	355
XBD13.0/180G-JSL	180	1.30	1480	425
XBD14.0/180G-JSL	180	1.40	1480	450
XBD15.0/180G-JSL	180	1.50	1480	475
XBD16.0/180G-JSL	180	1.60	1480	530
XBD3.0/190G-JSL	190	0.30	1480	110
XBD4.0/190G-JSL	190	0.40	1480	132
XBD5.0/190G-JSL	190	0.50	1480	160
XBD6.0/190G-JSL	190	0.60	1480	185
XBD7.0/190G-JSL	190	0.70	1480	200
XBD8.0/190G-JSL	190	0.80	1480	250
XBD9.0/190G-JSL	190	0.90	1480	280
XBD10.0/190G-JSL	190	1.00	1480	315
XBD11.0/190G-JSL	190	1.10	1480	355
XBD12.0/190G-JSL	190	1.20	1480	375
XBD13.0/190G-JSL	190	1.30	1480	450
XBD14.0/190G-JSL	190	1.40	1480	475
XBD15.0/190G-JSL	190	1.50	1480	500
XBD16.0/190G-JSL	190	1.60	1480	560
XBD3.0/200G-JSL	200	0.30	1480	185
XBD4.0/200G-JSL	200	0.40	1480	200
XBD4.4/200G-JSL	200	0.44	1480	250
XBD5.0/200G-JSL	200	0.50	1480	250
XBD6.0/200G-JSL	200	0.60	1480	280
XBD7.0/200G-JSL	200	0.70	1480	280
XBD8.0/200G-JSL	200	0.80	1480	280
XBD9.0/200G-JSL	200	0.90	1480	315
XBD10.0/200G-JSL	200	1.00	1480	355
XBD11.0/200G-JSL	200	1.10	1480	375
XBD12.0/200G-JSL	200	1.20	1480	425
XBD13.0/200G-JSL	200	1.30	1480	475
XBD14.0/200G-JSL	200	1.40	1480	530
XBD15.0/200G-JSL	200	1.50	1480	560
XBD16.0/200G-JSL	200	1.60	1480	600
