Wholesale JS(QZDGY) Integrated Fully Automatic Oil Separation and Lifting Equipment

View Products Contact Us

Oil Separators (Drainage Equipment)

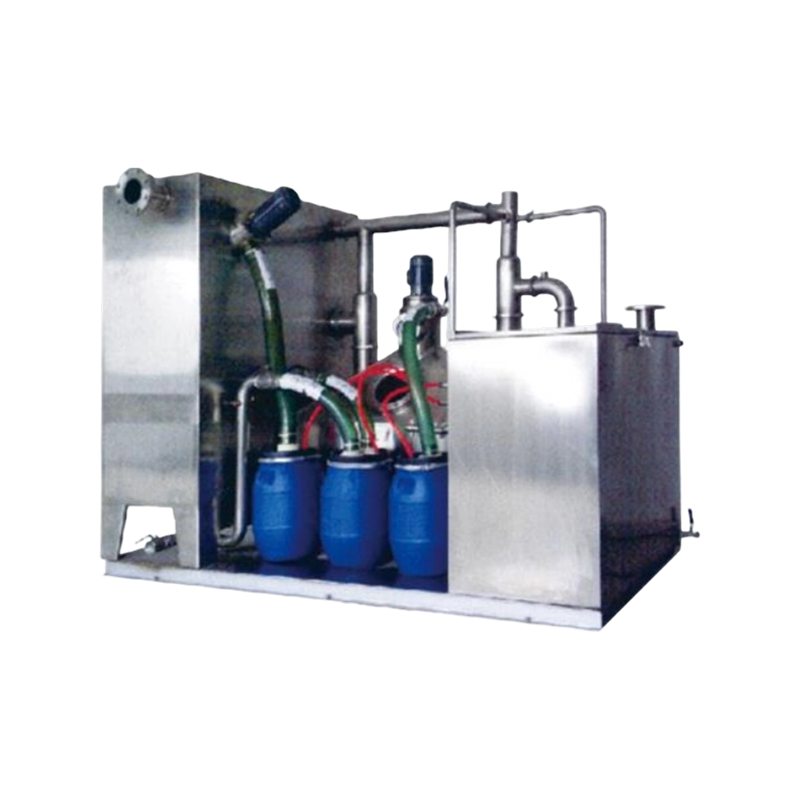

JS(QZDGY) Integrated Fully Automatic Oil Separation and Lifting Equipment

Product Features
304SS material, integrated structural design, tight appearance; Secondary separation, more thorough and efficient separation of oil and fat; Constant temperature electric heating function to ensure no clumping; Non powered automatic oil discharge and no water start design, energy-saving; The tight sealing cover and negative pressure ventilation design ensure that odors do not leak out and eliminate basement odors; Automatic mixing function, ensuring no blockage; Convenient maintenance:

A. Fully coupled installation of water pump, maintenance can be carried out without entering;

B. Modular design, non professionals can also replace parts;

C. Clear windows facilitate the long-term efficient operation of equipment.

+ Contact us
PREV:
NEXT:

Product Description

Equipment Model Description

JSWS (GY) series integrated oil separation and sewage lifting equipment configuration table

No.

Name

Specification

Material

Unit

Quantity

Remarks

1

Oil Separator and Water Collection Tank

2700x1200x1000

Stainless Steel

Piece

1

Built-in grid, lift pump included

2

Main Pump

50WQ25-32-5.5

Carbon Steel

Unit

2

-

3

Control Cabinet

JSK-Q5.5-2

-

Unit

1

Special for sewage lifting

4

Integral Channel Steel Base

-

Hot-dip Galvanized Steel

Set

1

6# hot-dip galvanized

5

Liquid Level Sensor

-

-

Set

1

Omron electrode rod liquid level gauge

6

Water Inlet

DN150

Stainless Steel

Piece

1

Stainless steel reserved flange

7

Drain Pipe Check Valve

DN50

Cast Steel

Piece

2

Ball-type check valve

8

Outlet Gate Valve

DN80

Cast Steel

Piece

1

Soft-sealed gate valve

9

Ball Valve

DN40

Brass

Piece

1

Sewage outlet

10

Pipe

DN80

Stainless Steel

Set

1

-

11

Vent Pipe

DN50

Stainless Steel

Piece

1

Reserved flange interface, connected above ground

12

Pipeline

DN80/DN50

Stainless Steel

Batch

1

-

13

Coupling Device

-

Carbon Steel

Set

2

-

14

Guide Rod

-

Galvanized Steel

Set

2

-

15

Grid

-

Stainless Steel

Set

1

Inlet filtration

16

Flow Guide Plate

-

Stainless Steel

Set

1

Oil-water separation

17

Oil Collection Tank

-

Stainless Steel

Set

1

-

18

Oil Outlet

DN50

Brass

Piece

1

-

19

Slag Outlet

DN50

Brass

Piece

1

-

20

Emptying Port

DN50

Brass

Piece

1

-

21

Oil Drain Pipe Valve

DN100

Stainless Steel

Set

1

-

22

Electric Heating Device

1.5kw

-

Set

1

-

JSWS (GY) series integrated oil separation and sewage lifting equipment parameter table

Serial number

 Device Model Traffic Head Power Equipment dimensions (mm) Diameter dimension of takeover Control cabinet Equipment dimensions (mm) Anchor bolt
m³/h M kW Long Wide Tall Water ingress Water outlet Ventilation Long Wide Tall nxΦ
1  JSWS(GY)-10-10-0.75-N-I 10  10  0.75  2600  1000  1400  DN150 DN80 DN50 JSK-Q0.75-2 2700  1200  1700  4x16
2  JSWS(GY)-20-7-0.75-N-Il 20  7  0.75  2600  1000  1400  DN150 DN80 DN50 JSK-Q0.75-2 2700  1200  1700  4x16
3  JSWS(GY)-15-15-1.5-N-II 15  15  1.5  2600  1000  1400  DN150 DN80 DN50 JSK-Q1.5-2 2700  1200  1700  4x16
4  JSWS(GY)-25-10-1.5-N-I 25  10  1.5  2600  1000  1400  DN150 DN80 DN50 JSK-Q1.5-2 2700  1200  1700  4x16
5  JSWS(GY)-15-20-2.2-N-II 15  20  2.2  2600  1200  1400  DN150 DN80 DN50 JSK-Q2.2-2 2700  1400  1700  4x16
6  JSWS(GY)-27-15-2.2-N-II 27  15  2.2  2600  1200  1400  DN150 DN80 DN50 JSK-Q2.2-2 2700  1400  1700  4x16
7  JSWS(GY)-17-25-3-N-II 17  25  3  2600  1200  1400  DN150 DN80 DN50 JSK-Q3-2 2700  1400  1700  4x16
8  JSWS(GY)-24-20-4-N-II 24  20  4  2600  1200  1400  DN150 DN80 DN50 JSK-Q4-2 2700  1400  1700  4x16
9  JSWS(GY)-40-15-4-N-II 40  15  4  2600  1200  1400  DN150 DN80 DN50 JSK-Q4-2 2700  1400  1700  4x16
10  JSWS(GY)-25-32-5.5-N-Il 25  32  5.5  2600  1200  1400  DN150 DN80 DN50 JSK-Q5.5-2 2700  1400  1700  4x16
11  JSWS(GY)-10-10-0.75-W-I 10  10  0.75  2600  1000  1400  DN150 DN80 DN50 JSK-Q0.75-2 3300  1200  1700  4x16
12  JSWS(GY)-20-7-0.75-W-Il 20  7  0.75  2600  1000  1400  DN150 DN80 DN50 JSK-Q0.75-2 3300  1200  1700  4x16
13  JSWS(GY)-15-15-1.5-W-Il 15  15  1.5  2600  1000  1400  DN150 DN80 DN50 JSK-Q1.5-2 3300  1200  1700  4x16
14  JSWS(GY)-25-10-1.5-W-II 25  10  1.5  2600  1000  1400  DN150 DN80 DN50 JSK-Q1.5-2 3300  1200  1700  4x16
15  JSWS(GY)-15-20-2.2-W-II 15  20  2.2  2600  1200  1400  DN150 DN80 DN50 JSK-Q2.2-2 3300  1400  1700  4x16
16  JSWS(GY)-27-15-2.2-W-II 27  15  2.2  2600  1200  1400  DN150 DN80 DN50 JSK-Q2.2-2 3300  1400  1700  4x16
17  JSWS(GY)-17-25-3-W-II 17  25  3  2600  1200  1400  DN150 DN80 DN50 JSK-Q3-2 3300  1400  1700  4x16
18  JSWS(GY)-24-20-4-W-II 24  20  4  2600  1200  1400  DN150 DN80 DN50 JSK-Q4-2 3300  1400  1700  4x16
19  JSWS(GY)-40-15-4-W-II 40  15  4  2600  1200  1400  DN150 DN80 DN50 JSK-Q4-2 3300  1400  1700  4x16
20  JSWS(GY)-25-32-5.5-W-II 25  32  5.5  2600  1200  1400  DN150 DN80 DN50 JSK-Q5.5-2 3300  1400  1700  4x16

Explanation: 1. Built in devices can be installed in reserved equipment pits or on prefabricated foundations on the ground;
2. The external dimensions of the equipment and the size of the water collection tank in the above table are the design dimensions of our company. Design changes can be made according to the customer's on-site conditions and requirements, and the final product shall prevail.
