Wholesale JSWS(GY) Type Integrated Oil Separation and Sewage Lifting Equipment (Double Pump Built-in Type)

View Products Contact Us

Oil Separators (Drainage Equipment)

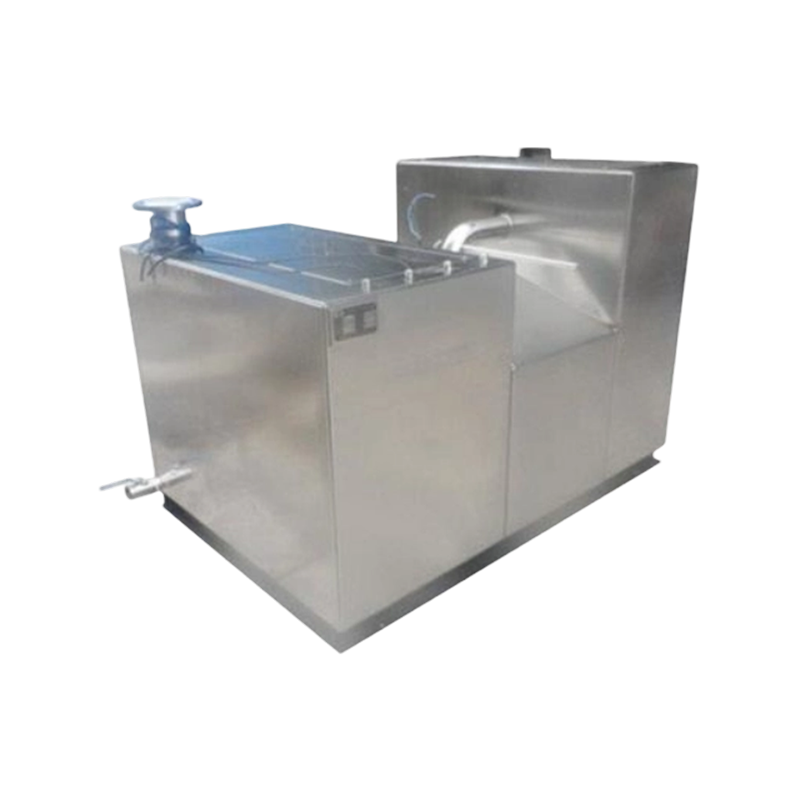

JSWS(GY) Type Integrated Oil Separation and Sewage Lifting Equipment (Double Pump Built-in Type)

Product Overview
The integrated oil separation and sewage lifting equipment is composed of an integrated oil separation equipment and an integrated sewage lifting equipment. By utilizing the difference in oil-water density, it uses natural flotation to separate the floatable oil and some dispersed oil in the wastewater, and sets up a collection pipe on the upper part of the tank to collect the floating oil and export it outside the tank; The separated wastewater enters the sewage lifting tank through the overflow well, and is controlled by the liquid level to remove the pollutants
Water is elevated to the municipal sewage network. It can be widely used for the treatment of wastewater containing animal and vegetable oil in hotels, restaurants, canteens, food processing plants, public canteens and home kitchens, as well as the treatment of industrial wastewater containing mineral oil in oil fields, petrochemical industry, ships, gas stations, machinery processing and manufacturing, as well as coking, and can also be used together with other water treatment devices.

+ Contact us

NEXT:

Product Description

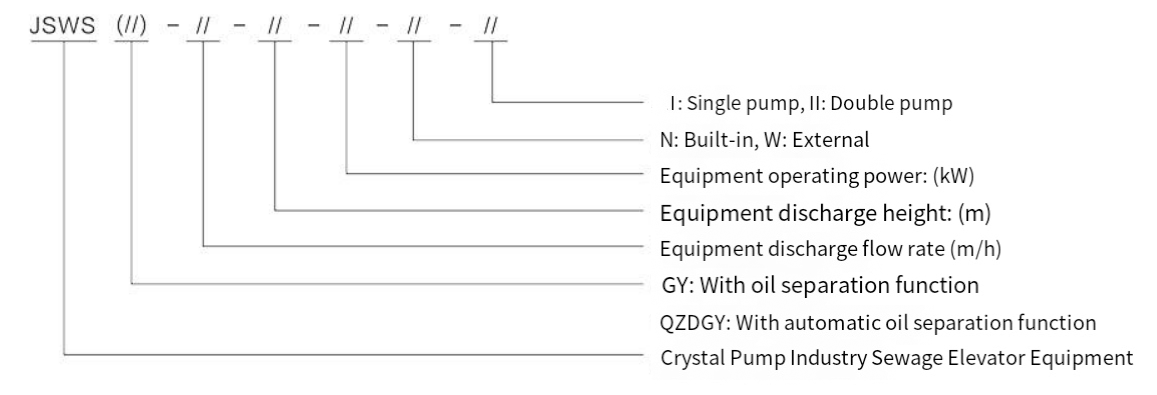

Equipment Model Description

JSWS (GY) series integrated oil separation and sewage lifting equipment configuration table

No.

Name

Specification

Material

Unit

Quantity

Remarks

1

Oil Separator and Water Collection Tank

2700x1200x1000

Stainless Steel

Piece

1

Built-in grid, lift pump included

2

Main Pump

50WQ25-32-5.5

Carbon Steel

Unit

2

-

3

Control Cabinet

JSK-Q5.5-2

-

Unit

1

Special for sewage lifting

4

Integral Channel Steel Base

-

Hot-dip Galvanized Steel

Set

1

6# hot-dip galvanized

5

Liquid Level Sensor

-

-

Set

1

Omron electrode rod liquid level gauge

6

Water Inlet

DN150

Stainless Steel

Piece

1

Stainless steel reserved flange

7

Drain Pipe Check Valve

DN50

Cast Steel

Piece

2

Ball-type check valve

8

Outlet Gate Valve

DN80

Cast Steel

Piece

1

Soft-sealed gate valve

9

Ball Valve

DN40

Brass

Piece

1

Sewage outlet

10

Pipe

DN80

Stainless Steel

Set

1

-

11

Vent Pipe

DN50

Stainless Steel

Piece

1

Reserved flange interface, connected above ground

12

Pipeline

DN80/DN50

Stainless Steel

Batch

1

-

13

Coupling Device

-

Carbon Steel

Set

2

-

14

Guide Rod

-

Galvanized Steel

Set

2

-

15

Grid

-

Stainless Steel

Set

1

Inlet filtration

16

Flow Guide Plate

-

Stainless Steel

Set

1

Oil-water separation

17

Oil Collection Tank

-

Stainless Steel

Set

1

-

18

Oil Outlet

DN50

Brass

Piece

1

-

19

Slag Outlet

DN50

Brass

Piece

1

-

20

Emptying Port

DN50

Brass

Piece

1

-

21

Oil Drain Pipe Valve

DN100

Stainless Steel

Set

1

-

22

Electric Heating Device

1.5kw

-

Set

1

-

JSWS (GY) series integrated oil separation and sewage lifting equipment parameter table

Serial number

 Device Model Traffic Head Power Equipment dimensions (mm) Diameter dimension of takeover Control cabinet Equipment dimensions (mm) Anchor bolt
m³/h M kW Long Wide Tall Water ingress Water outlet Ventilation Long Wide Tall nxΦ
1  JSWS(GY)-10-10-0.75-N-I 10  10  0.75  2600  1000  1400  DN150 DN80 DN50 JSK-Q0.75-2 2700  1200  1700  4x16
2  JSWS(GY)-20-7-0.75-N-Il 20  7  0.75  2600  1000  1400  DN150 DN80 DN50 JSK-Q0.75-2 2700  1200  1700  4x16
3  JSWS(GY)-15-15-1.5-N-II 15  15  1.5  2600  1000  1400  DN150 DN80 DN50 JSK-Q1.5-2 2700  1200  1700  4x16
4  JSWS(GY)-25-10-1.5-N-I 25  10  1.5  2600  1000  1400  DN150 DN80 DN50 JSK-Q1.5-2 2700  1200  1700  4x16
5  JSWS(GY)-15-20-2.2-N-II 15  20  2.2  2600  1200  1400  DN150 DN80 DN50 JSK-Q2.2-2 2700  1400  1700  4x16
6  JSWS(GY)-27-15-2.2-N-II 27  15  2.2  2600  1200  1400  DN150 DN80 DN50 JSK-Q2.2-2 2700  1400  1700  4x16
7  JSWS(GY)-17-25-3-N-II 17  25  3  2600  1200  1400  DN150 DN80 DN50 JSK-Q3-2 2700  1400  1700  4x16
8  JSWS(GY)-24-20-4-N-II 24  20  4  2600  1200  1400  DN150 DN80 DN50 JSK-Q4-2 2700  1400  1700  4x16
9  JSWS(GY)-40-15-4-N-II 40  15  4  2600  1200  1400  DN150 DN80 DN50 JSK-Q4-2 2700  1400  1700  4x16
10  JSWS(GY)-25-32-5.5-N-Il 25  32  5.5  2600  1200  1400  DN150 DN80 DN50 JSK-Q5.5-2 2700  1400  1700  4x16
11  JSWS(GY)-10-10-0.75-W-I 10  10  0.75  2600  1000  1400  DN150 DN80 DN50 JSK-Q0.75-2 3300  1200  1700  4x16
12  JSWS(GY)-20-7-0.75-W-Il 20  7  0.75  2600  1000  1400  DN150 DN80 DN50 JSK-Q0.75-2 3300  1200  1700  4x16
13  JSWS(GY)-15-15-1.5-W-Il 15  15  1.5  2600  1000  1400  DN150 DN80 DN50 JSK-Q1.5-2 3300  1200  1700  4x16
14  JSWS(GY)-25-10-1.5-W-II 25  10  1.5  2600  1000  1400  DN150 DN80 DN50 JSK-Q1.5-2 3300  1200  1700  4x16
15  JSWS(GY)-15-20-2.2-W-II 15  20  2.2  2600  1200  1400  DN150 DN80 DN50 JSK-Q2.2-2 3300  1400  1700  4x16
16  JSWS(GY)-27-15-2.2-W-II 27  15  2.2  2600  1200  1400  DN150 DN80 DN50 JSK-Q2.2-2 3300  1400  1700  4x16
17  JSWS(GY)-17-25-3-W-II 17  25  3  2600  1200  1400  DN150 DN80 DN50 JSK-Q3-2 3300  1400  1700  4x16
18  JSWS(GY)-24-20-4-W-II 24  20  4  2600  1200  1400  DN150 DN80 DN50 JSK-Q4-2 3300  1400  1700  4x16
19  JSWS(GY)-40-15-4-W-II 40  15  4  2600  1200  1400  DN150 DN80 DN50 JSK-Q4-2 3300  1400  1700  4x16
20  JSWS(GY)-25-32-5.5-W-II 25  32  5.5  2600  1200  1400  DN150 DN80 DN50 JSK-Q5.5-2 3300  1400  1700  4x16
