Wholesale JPWQ Series Stainless Steel Self-Priming Stirring Sewage Pump

View Products Contact Us

Submersible Pumps

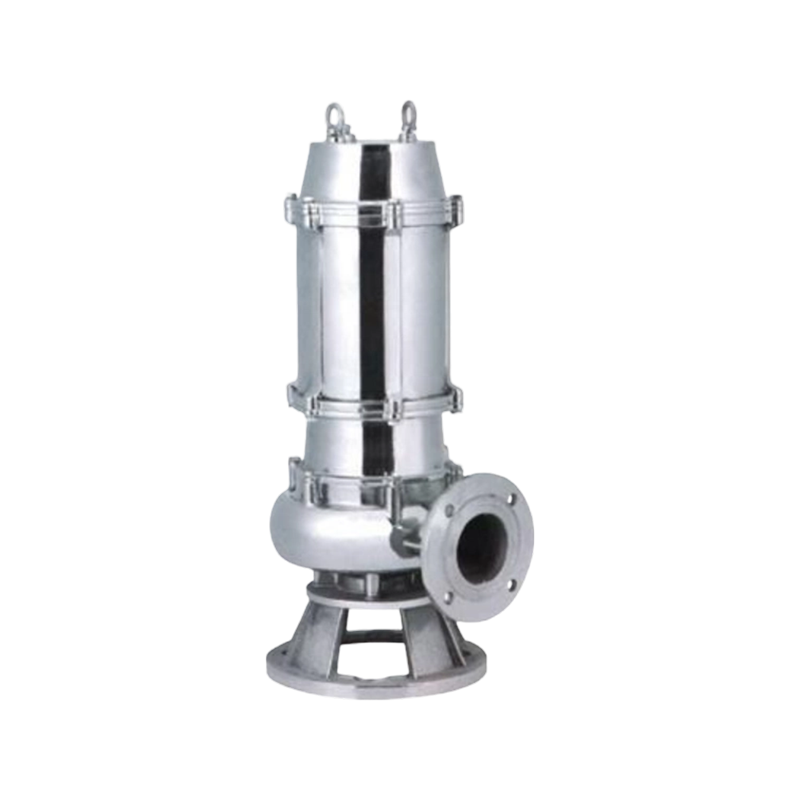

JPWQ Series Stainless Steel Self-Priming Stirring Sewage Pump

Product: The JPWQ series stainless steel self-priming agitator sewage pump is an upgraded version of the JYWQ series. Its core feature is that its flow path components are constructed entirely of stainless steel.

Advantages:

Excellent corrosion resistance: The pump body, impeller, agitator, and other key flow path components are constructed of 304 or 316 stainless steel. It can safely transport corrosive industrial wastewater and chemical liquids containing acids, alkalis, and salts, with a service life far exceeding that of ordinary cast iron pumps.

Sanitary standards and high strength: The stainless steel surface is smooth, resists dirt accumulation, and is easy to clean, meeting the hygienic requirements of the food and pharmaceutical industries. Furthermore, the material is strong and wear-resistant.

Combining versatility and corrosion resistance: While retaining all the high-efficiency self-priming and powerful agitation features of the JYWQ series, its application range has been expanded to include highly corrosive environments.

Selling Points:

"Expert in Corrosive Media": It provides a perfect solution for treating corrosive wastewater in industries such as chemical, electroplating, and pharmaceuticals.

"Sanitary Mixing and Discharging Solution": Suitable for use in food processing, dairy, beverage plants, and other locations with stringent equipment hygiene requirements.

"One-Stop Investment": While the initial purchase cost is higher, its exceptionally long lifespan and extremely low failure rate in corrosive environments result in lower lifecycle costs.

Applications:

Chemical and Electroplating Industries: Transport acidic and alkaline wastewater, electroplating bath solutions, etc.

Food and Pharmaceutical Industries: Treat production cleaning wastewater and corrosive wastewater containing sugars, salts, and organic matter.

Environmental Engineering and Laboratory Wastewater: Safely transport complex laboratory wastewater and highly treated intermediate fluids.

Mariculture and Coastal Facilities: Discharge saline seawater or accumulated water in corrosive environments.

+ Contact us
PREV:
NEXT:

Product Description

Product Overview
JYWQ and JPWQ series automatic mixing sewage pumps use an automatic mixing device on the basis of ordinary sewage pumps. The device rotates with the motor shaft to produce extremely strong mixing force, mixing the sediment in the sewage pool into suspended solids, and sucking them into the pump for discharge, which improves the anti blocking and sewage discharge capacity of the pump, completes drainage, cleaning and desilting at one time, and saves operating costs. It is an environmental protection product with obvious progressiveness and practicality.

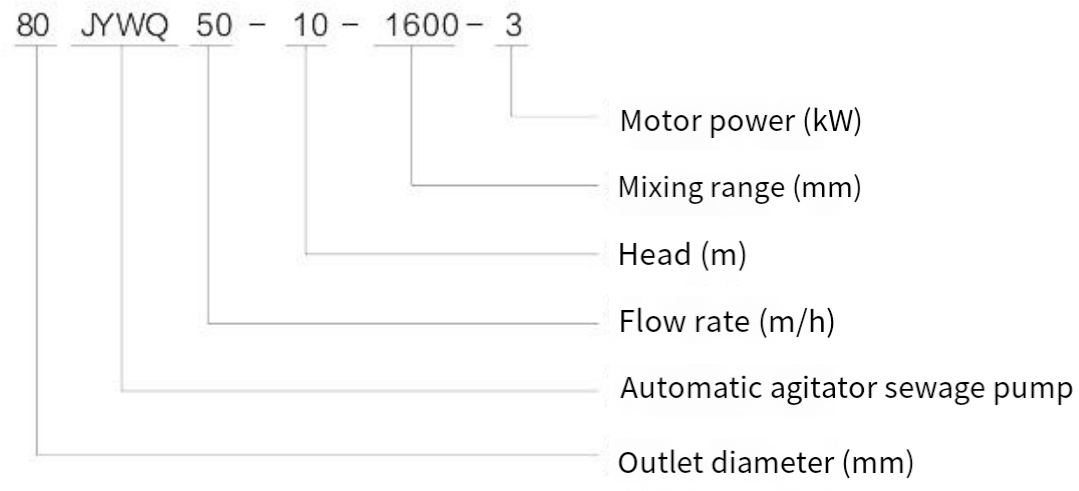

Model meaning

Note: JYWQ is a regular automatic mixing and discharging pump
JPWQ is an automatic mixing and discharging pump with a stainless steel jacket and internal circulation cooling system



Model Caliber(mm) Traffic(m³/h) Head(m) Mixing diameter(mm) Speed(r/min) Power(kW) Automatic coupler
50-12-15-1200-1.5 50  12  15  1200  2900  1.5  GAK-50
50-12-7-1200-1.1 50  20  7  1200  2900  1.1  GAK-50
50-10-10-1200-1.1 50  10  10  1200  2900  1.1  GAK-50
50-15-15-1200-2.2 50  15  15  1200  2900  2.2  GAK-50
50-25-10-1200-2.2 50  25  10  1200  2900  2.2  GAK-50
50-15-20-1200-2.2 50  15  20  1200  2900  2.2  GAK-50
50-20-15-1200-2.2 50  20  15  1200  2900  2.2  GAK-50
50-42-9-1200-3 50  42  9  1200  2900  3  GAK-50
50-17-25-1200-3 50  17  25  1200  2900  3  GAK-50
50-25-22-1200-4 50  25  22  1200  2900  4  GAK-50
50-40-15-1400-4 50  40  15  1400  2900  4  GAK-50
50-25-32-1600-5.5 50  25  32  1600  2900  5.5  GAK-50
50-40-30-1600-7.5 50  40  30  1600  2900  7.5  GAK-50
65-25-15-1400-3 65  25  15  1400  2900  3  GAK-65
65-37-13-1400-3 65  37  13  1400  2900  3  GAK-65
65-25-28-1400-4 65  25  28  1400  2900  4  GAK-65
80-40-7-1600-2.2 80  40  7  1600  2900  2.2  GAK-80
80-29-8-1600-2.2 80  29  8  1600  2900  2.2  GAK-80
80-43-13-1600-4 80  43  13  1600  2900  4  GAK-80
80-50-10-1600-3 80  50  10  1600  1450  3  GAK-80
80-40-15-1600-4 80  40  15  1600  2900  4  GAK-80
80-60-13-1600-4 80  60  13  1600  2900  4  GAK-80
80-35-25-1600-5.5 80  35  25  1600  2900  5.5  GAK-80
80-50-25-1600-7.5 80  50  25  1600  2900  7.5  GAK-80
80-50-30-1600-7.5 80  50  30  1600  2900  7.5  GAK-80
100-80-9-2000-4 100  80  9  2000  1450  4  GAK-100
100-110-10-2000-5.5 100  110  10  2000  1450  5.5  GAK-100
100-70-15-2000-5.5 100  70  15  2000  1450  5.5  GAK-100
100-100-15-2000-7.5 100  100  15  2000  1450  7.5  GAK-100
100-80-20-2000-7.5 100  80  20  2000  2900  7.5  GAK-100
100-50-35-2000-11 100  50  35  2000  2900  11  GAK-100
100-70-22-2000-7.5 100  70  22  2000  2900  7.5  GAK-100
100-100-22-2000-15 100  100  22  2000  1450  15  GAK-100
100-80-30-2000-15 100  80  30  2000  1450  15  GAK-100
150-150-10-2000-7.5 150  150  10  2000  1450  7.5  GAK-150
150-210-7-2500-7.5 150  210  7  2500  1450  7.5  GAK-150
150-250-6-2500-7.5 150  250  6  2500  1450  7.5  GAK-150
150-150-15-2500-11 150  150  15  2500  1450  11  GAK-150
150-200-10-2500-15 150  200  10  2500  1450  15  GAK-150
150-65-40-3200-18.5 150  65  40  3200  1450  18.5  GAK-150
150-180-22-2600-18.5 150  180  22  2600  1450  18.5  GAK-150
150-150-26-2600-18.5 150  150  26  2600  1450  18.5  GAK-150
150-110-30-2600-18.5 150  110  30  2600  1450  18.5  GAK-150
150-300-15-2600-22 150  300  15  2600  1450  22  GAK-150
150-130-30-2600-22 150  130  30  2600  1450  22  GAK-150
150-100-40-3000-30 150  100  40  3000  1450  30  GAK-150
200-300-7-3000-11 200  300  7  3000  1450  11  GAK-200
200-250-11-3000-15 200  250  11  3000  1450  15  GAK-200
200-300-10-3000-15 200  300  10  3000  1450  15  GAK-200
200-250-15-3000-18.5 200  250  15  3000  1450  18.5  GAK-200
200-400-10-3000-22 200  400  10  3000  1450  22  GAK-200
200-200-20-3000-22 200  200  20  3000  1450  22  GAK-200
200-250-22-3000-30 200  250  22  3000  1450  30  GAK-200
250-600-7-3000-22 250  600  7  3000  1450  22  GAK-250
250-600-9-3000-30 250  600  9  3000  1450  30  GAK-250
250-600-12-3000-37 250  600  12  3000  1450  37  GAK-250
250-600-15-3000-45 250  600  15  3000  1450  45  GAK-250
250-600-20-3500-55 250  600  20  3500  1450  55  GAK-250
250-600-25-3500-75 250  600  25  3500  1450  75  GAK-250
300-800-12-3500-45 300  800  12  3500  980  45  GAK-300
300-800-15-3500-55 300  800  15  3500  980  55  GAK-300
300-900-10-3500-45 300  900  10  3500  980  45  GAK-300
300-1100-10-3500-55 300  1100  10  3500  980  55  GAK-300
