Wholesale JYWQ Series Self-Priming Mixing Sewage Pump

View Products Contact Us

Submersible Pumps

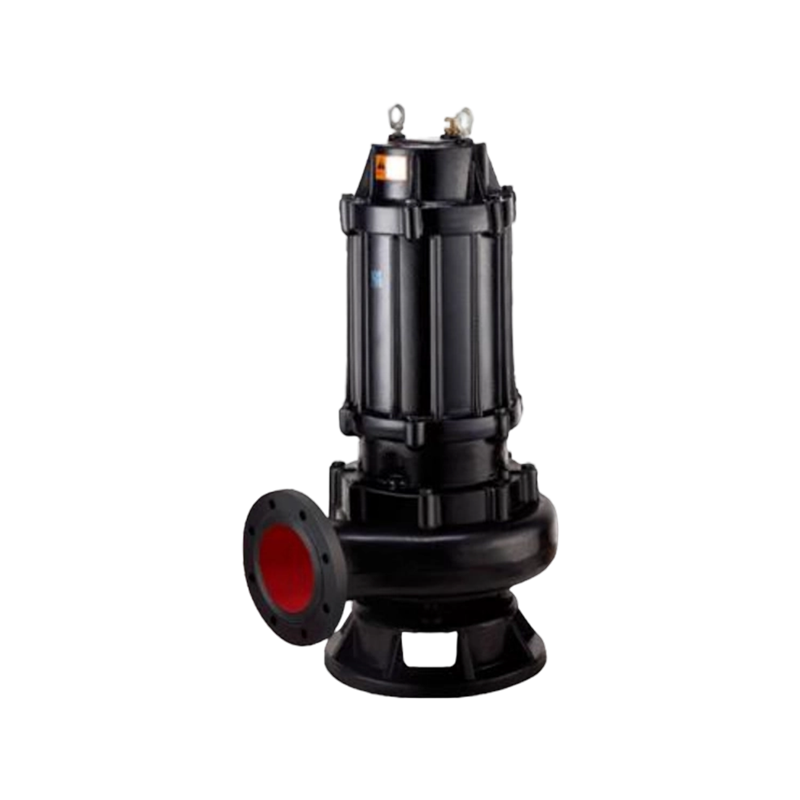

JYWQ Series Self-Priming Mixing Sewage Pump

Product: The JYWQ series self-priming agitator sewage pump is a dry-install, self-priming sewage pump with automatic agitation.

Advantages:

Efficient self-priming and powerful agitation: It quickly creates a vacuum and pumps liquid without the need for a foot valve or water inlet. Its unique mechanical agitation mechanism (such as a rotating agitator or impeller) powerfully agitates the bottom sediment while pumping water, suspending and discharging compacted sludge and debris.

Strong anti-clogging capability: The spacious flow channel combined with the agitation function easily handles sewage containing impurities such as solid particles and fibers, effectively preventing clogging.

Dry-installation and easy maintenance: The motor and pump body are dry-installed, making installation, routine inspection, and maintenance extremely convenient without submersion.

Selling Points:

"Sludge-killer": Designed for applications requiring regular removal of sediment and viscous sewage, it serves as both a sewage pump and agitator.

"Ready to use, worry-free and labor-saving": Its superior self-priming capability allows for flexible deployment, eliminating the need for complex fixed installation and water filling preparations.

"Low maintenance": Its dry-type construction makes maintenance of key components, such as bearings and mechanical seals, as simple as that of a conventional centrifugal pump.

Applications:

Wastewater treatment plants: For sand removal and sludge return from grit chambers and sedimentation tanks.

Industrial wastewater tanks: For cleaning industrial wastewater containing sediment, such as wastewater from the papermaking and printing and dyeing industries.

Construction sites: For draining foundation pit water containing silt, sand, and gravel particles.

Rural and urban areas: For pumping liquid-slag mixtures from septic tanks and biogas digesters.



+ Contact us
PREV:
NEXT:

Product Description

Product Overview
JYWQ and JPWQ series automatic mixing sewage pumps use an automatic mixing device on the basis of ordinary sewage pumps. The device rotates with the motor shaft to produce extremely strong mixing force, mixing the sediment in the sewage pool into suspended solids, and sucking them into the pump for discharge, which improves the anti blocking and sewage discharge capacity of the pump, completes drainage, cleaning and desilting at one time, and saves operating costs. It is an environmental protection product with obvious progressiveness and practicality.

Model meaning

Note: JYWQ is a regular automatic mixing and discharging pump
JPWQ is an automatic mixing and discharging pump with a stainless steel jacket and internal circulation cooling system



Model Caliber(mm) Traffic(m³/h) Head(m) Mixing diameter(mm) Speed(r/min) Power(kW) Automatic coupler
50-12-15-1200-1.5 50  12  15  1200  2900  1.5  GAK-50
50-12-7-1200-1.1 50  20  7  1200  2900  1.1  GAK-50
50-10-10-1200-1.1 50  10  10  1200  2900  1.1  GAK-50
50-15-15-1200-2.2 50  15  15  1200  2900  2.2  GAK-50
50-25-10-1200-2.2 50  25  10  1200  2900  2.2  GAK-50
50-15-20-1200-2.2 50  15  20  1200  2900  2.2  GAK-50
50-20-15-1200-2.2 50  20  15  1200  2900  2.2  GAK-50
50-42-9-1200-3 50  42  9  1200  2900  3  GAK-50
50-17-25-1200-3 50  17  25  1200  2900  3  GAK-50
50-25-22-1200-4 50  25  22  1200  2900  4  GAK-50
50-40-15-1400-4 50  40  15  1400  2900  4  GAK-50
50-25-32-1600-5.5 50  25  32  1600  2900  5.5  GAK-50
50-40-30-1600-7.5 50  40  30  1600  2900  7.5  GAK-50
65-25-15-1400-3 65  25  15  1400  2900  3  GAK-65
65-37-13-1400-3 65  37  13  1400  2900  3  GAK-65
65-25-28-1400-4 65  25  28  1400  2900  4  GAK-65
80-40-7-1600-2.2 80  40  7  1600  2900  2.2  GAK-80
80-29-8-1600-2.2 80  29  8  1600  2900  2.2  GAK-80
80-43-13-1600-4 80  43  13  1600  2900  4  GAK-80
80-50-10-1600-3 80  50  10  1600  1450  3  GAK-80
80-40-15-1600-4 80  40  15  1600  2900  4  GAK-80
80-60-13-1600-4 80  60  13  1600  2900  4  GAK-80
80-35-25-1600-5.5 80  35  25  1600  2900  5.5  GAK-80
80-50-25-1600-7.5 80  50  25  1600  2900  7.5  GAK-80
80-50-30-1600-7.5 80  50  30  1600  2900  7.5  GAK-80
100-80-9-2000-4 100  80  9  2000  1450  4  GAK-100
100-110-10-2000-5.5 100  110  10  2000  1450  5.5  GAK-100
100-70-15-2000-5.5 100  70  15  2000  1450  5.5  GAK-100
100-100-15-2000-7.5 100  100  15  2000  1450  7.5  GAK-100
100-80-20-2000-7.5 100  80  20  2000  2900  7.5  GAK-100
100-50-35-2000-11 100  50  35  2000  2900  11  GAK-100
100-70-22-2000-7.5 100  70  22  2000  2900  7.5  GAK-100
100-100-22-2000-15 100  100  22  2000  1450  15  GAK-100
100-80-30-2000-15 100  80  30  2000  1450  15  GAK-100
150-150-10-2000-7.5 150  150  10  2000  1450  7.5  GAK-150
150-210-7-2500-7.5 150  210  7  2500  1450  7.5  GAK-150
150-250-6-2500-7.5 150  250  6  2500  1450  7.5  GAK-150
150-150-15-2500-11 150  150  15  2500  1450  11  GAK-150
150-200-10-2500-15 150  200  10  2500  1450  15  GAK-150
150-65-40-3200-18.5 150  65  40  3200  1450  18.5  GAK-150
150-180-22-2600-18.5 150  180  22  2600  1450  18.5  GAK-150
150-150-26-2600-18.5 150  150  26  2600  1450  18.5  GAK-150
150-110-30-2600-18.5 150  110  30  2600  1450  18.5  GAK-150
150-300-15-2600-22 150  300  15  2600  1450  22  GAK-150
150-130-30-2600-22 150  130  30  2600  1450  22  GAK-150
150-100-40-3000-30 150  100  40  3000  1450  30  GAK-150
200-300-7-3000-11 200  300  7  3000  1450  11  GAK-200
200-250-11-3000-15 200  250  11  3000  1450  15  GAK-200
200-300-10-3000-15 200  300  10  3000  1450  15  GAK-200
200-250-15-3000-18.5 200  250  15  3000  1450  18.5  GAK-200
200-400-10-3000-22 200  400  10  3000  1450  22  GAK-200
200-200-20-3000-22 200  200  20  3000  1450  22  GAK-200
200-250-22-3000-30 200  250  22  3000  1450  30  GAK-200
250-600-7-3000-22 250  600  7  3000  1450  22  GAK-250
250-600-9-3000-30 250  600  9  3000  1450  30  GAK-250
250-600-12-3000-37 250  600  12  3000  1450  37  GAK-250
250-600-15-3000-45 250  600  15  3000  1450  45  GAK-250
250-600-20-3500-55 250  600  20  3500  1450  55  GAK-250
250-600-25-3500-75 250  600  25  3500  1450  75  GAK-250
300-800-12-3500-45 300  800  12  3500  980  45  GAK-300
300-800-15-3500-55 300  800  15  3500  980  55  GAK-300
300-900-10-3500-45 300  900  10  3500  980  45  GAK-300
300-1100-10-3500-55 300  1100  10  3500  980  55  GAK-300
