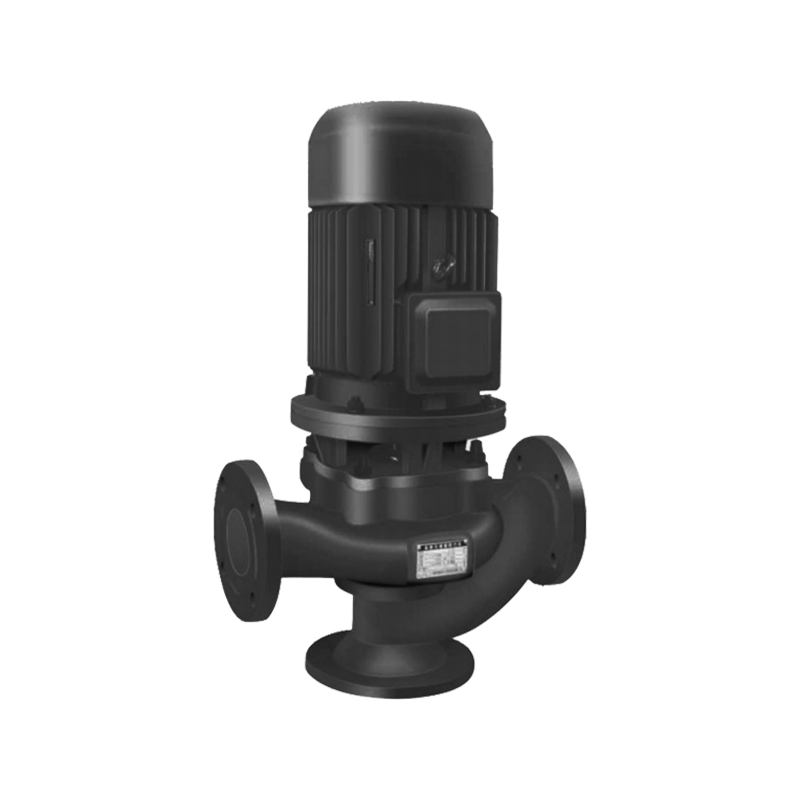

GW Series Non-Clogging Single-Stage Pipeline Sewage Pumps

Product introduction

Pumps for vertical single-stage single-suction centrifugal sewage pump,inlet and outlet centers in the same level,inlet and outlet flange the same,to help install and knock down,small size,can be the same as the valve installed in the pipeline in any position.

Pump and motor direct-axis,is a mechanical-electrical integration products,compact structure,stable performance.

Mechanical seal with tungsten carbide hard wear-resistant has durable,wear-resistant characteristics,it can pump more than 8000 hours of continuous operation safe.

Hydraulic performance of advanced machine,high efficiency,low noise operation.

In the motor fan side with protective cover,machine can be placed to work outdoors,without room can save a lot of infrastructure costs.

In the context of using,it ensures Motor will not overload.



Product Description

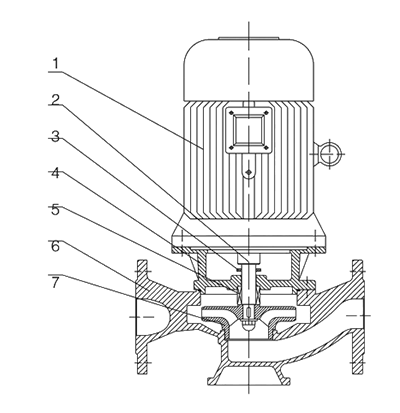

Arrangement drawing

1. Motor 2. Pump shaft
3. File hydrosphere 4. Motor cover
5. Mechanical mark 6. Pump body
7. Impeller 8. Packing ring

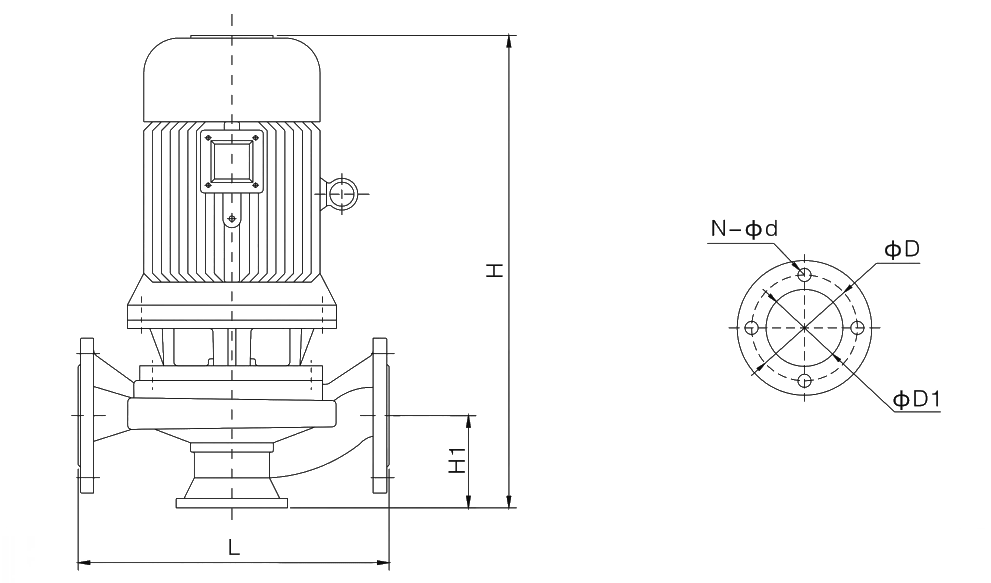

GW series installation size diagram

GW performance parameters and installation size table

Type Calibe(φ) Flowing rate(m³/h) Head(m) Rotation speed(r/min) Power(KW) H H₁ L φD φ D n-φd
25-8-22-1.5 25  22  2900  1.5  430  110  270  100  120  4-14
50-20-7-0.75 50  20  2900  0.75  500  130  330  125  150  4-14
50-10-10-0.75 50  10  10  2900  0.75  500  130  330  125  150  4-14
50-15-15-1.5 50  15  15  2900  1.5  510  130  330  125  150  4-14
50-25-10-1.5 50  25  10  2900  1.5  510  130  330  125  150  4-14
50-20-15-1.5 50  20  15  2900  1.5  510  130  330  125  150  4-14
50-27-15-2.2 50  27  15  2900  2.2  510  130  330  125  150  4-14
50-15-25-2.2 50  15  25  2900  2.2  510  130  330  125  150  4-14
50-18-30-3 50  18  30  2900  560  130  330  125  150  4-14
50-24-20-4 50  24  20  2900  580  130  330  125  150  4-14
50-25-32-5.5 50  25  32  2900  5.5  620  140  350  145  170  4-14
50-30-30-7.5 50  30  30  2900  7.5  660  140  350  145  170  4-14
50-20-40-7.5 50  20  40  2900  7.5  660  140  350  145  170  4-14
65-42-9-2.2 65  42  2900  2.2  500  140  310  120  160  4-14
65-25-15-2.2 65  25  15  2900  2.2  500  140  310  120  160  4-14
65-37-13-3 65  37  13  2900  560  140  330  120  160  4-14
65-25-30-4 65  25  30  2900  600  140  330  120  160  4-14
65-40-30-7.5 65  40  30  2900  7.5  600  140  350  145  170  4-14
65-35-50-11 65  35  50  2900  11  750  150  370  160  200  4-14
65-35-60-15 65  35  60  2900  15  800  150  370  160  200  4-14
80-40-7-2.2 80  40  2900  2.2  610  160  360  170  200  4-14
80-30-8-2.2 80  30  2900  2.2  610  160  360  170  200  4-14
80-50-10-3 80  50  10  2900  650  180  420  170  200  4-14
80-43-13-3 80  43  13  2900  650  180  420  170  200  4-14
80-60-13-4 80  60  13  2900  620  160  360  150  190  4-18
80-40-15-4 80  40  15  2900  620  160  360  150  190  4-18
80-80-15-7.5 80  80  15  2900  7.5  710  180  420  150  190  4-18
80-65-25-7.5 80  65  25  2900  7.5  710  180  420  150  190  4-18
100-100-7-4 100  100  1450  700  210  540  170  210  4-18
100-80-10-4 100  80  10  1450  700  210  540  170  210  4-18
100-110-10-5.5 100  110  10  1450  5.5  780  225  540  220  250  4-18
100-65-15-5.5 100  65  15  1450  5.5  780  225  540  220  250  4-18
100-100-15-7.5 100  100  15  1450  7.5  780  225  540 220  250  4-18
100-85-20-7.5 100  85  20  1450  7.5  780  225  540  220  250  4-18
100-50-22-7.5 100  50  22  1450  7.5  780  225  540  220  250  4-18
100-100-25-11 100  100  25  1450  11  890  240  630  240  300  4-18
100-65-25-11 100  70  22  1450  11  890  240  630  240  300  4-18
100-50-35-11 100  50  35  1450  11  910 260  660  240  300  4-18
100-87-28-15 100  87  28  1450  15  910  260  660  240  300  4-18
100-100-30-15 100  100  30  1450  15  910  260  660  240  300  4-18
100-100-35-18.5 100  100  35  1450  18.5  910  260  660  240  300  4-18
100-60-50-15 100  60  50  2900  15  910  260  660  240  300  4-18
150-140-7-5.5 150  140  7 1450  5.5  800  250  650  240  280  4-18
150-120-10-5.5 150  120  10  1450  5.5  800  250  650  240  280  4-18
150-210-7-7.5 150  210  1450  7.5  800  250  650  240  280 4-18
150-145-9-7.5 150  145  1450  7.5  800  250  650  240  280  4-18
150-110-15-7.5 150  110  15  1450  7.5  800  250  650 240 280  4-18
150-200-10-15 150  200  10  1450  15  950  250  690  260  320  4-22
150-180-15-15 150  180  15  1450  15  950  250  690  260  320 4-22
150-140-15-15 150  140  18  1450  15  950  250  690  260  320  4-22
150-200-14-18.5 150  200 14  1450  18.5  970 250  690  260  320  4-22
150-180-20-18.5 150  180  20  1450  18.5  970  250  690  260  320  4-22
150-150-25-18.5 150  150  25  1450  18.5  970  250  690  260  320  4-22
150-200-22-22 150  200  22  1450  22  970  250  690  260  320  4-22
150-180-25-22 150  180  25  1450  22  970  250  690  260  320  4-22
150-130-30-22 150  130  30  1450  22  970  250  690  260  320  4-22
150-250-22-30 150  250  22  1450  30  1040  260  690  290  340  4-22
150-180-30-30 150  180  30  1450  30  1040  260  690  290  340  4-22
150-200-30-37 150  200  30  2900  37  1040  260  690  290  340  4-22
150-150-35-37 150  150  35  2900  37  1040  260  690  290  340  4-22
150-160-45-37 150  160  45  2900  37  1040  260  690  290  340  4-22



Type Calibe(φ) Flowing rate(m³/h) Head(m) Rotation speed(r/min) Power(KW) H H₁ L AxA BxB n-φd
200-360-6-11 200 360 6 1450 11 960 290 800 300*300 350*350 4-22
200-300-7-11 200  300  1450  11  960  290  800  300*300 350*350 4-22
200-400-7-15 200  400  1450  15  960  290  800  300*300 350*350 4-22
200-250-11-15 200 250 11 1450 15 960 290 800 300*300 350*350 4-22
200-300-10-18.5 200  300  10  1450  18.5  1000  290  800  300*300 350*350 4-22
200-250-15-18.5 200 250 15 1450 18.5 1000 290 800 300*300 350*350 4-22
200-400-10-22 200 400 10 1450 22 1000 290 800 300*300 350*350 4-22
200-310-13-22 200  310  13  1450  22  1000  290  800  300*300 350*350 4-22
200-300-15-22 200 300 15 1450 22 1000 290 800 300*300 350*350 4-22
200-400-13-30 200  400  13  1450  30  1000  290  800  300*300 350*350 4-22
200-360-15-30 200  360  15  1450  30  1000  290  800  300*300 350*350 4-22
200-250-22-30 200 250 22 1450 30 1000 290 800 300*300 350*350 4-22
200-350-25-37 200  350  25  1450  37  1000  290  800  300*300 350*350 4-22
200-400-25-45 200  400  25  1450  45  1320  300  810  310*310 360*360 4-22
200-380-28-45 200 380 28 1450 45 1320 300 810 310*310 360*360 4-22
200-250-35-45 200  250  35  1450  45  1320  300  810  310*310 360*360 4-22
200-400-30-55 200  400  30  1450  55  1400  300  810  310*310 360*360 4-22
200-250-40-55 200 250 40 1450 55 1400 300 810 310*310 360*360 4-22
200-350-40-75 200  350  40  1450  75  1520  300  810  310*310 360*360 4-22
250-600-9-30 250 600 9 980 30 1100 350 900 320*320 380*380 4-23
250-500-10-30 250  500  10  980  30  1100  350  900  320*320 380*380 4-23
250-700-10-37 250  700  10  1450  37  1150  350  900  320*320 380*380 4-23
250-600-12-37 250  600  12  1450  37  1150  350  900  320*320 380*380 4-23
  250  600  15  1450  45  1200  350  900  320*320 380*380 4-23
250-600-15-45 250  600  20  1450  55  1320  350  900  320*320 380*380 4-23
250-600-20-55 250 700 20 1450 75 1450 350 900 320*320 380*380 4-23
250-700-20-75 250  600  25  1450  75  1450  350  900  320*320 380*380 4-23
250-600-25-75 250  600  30  1450  90  1550  350  900  320*320 380*380 4-23
250-600-30-90 300 900 8 980 37 1200 390 1100 410*410 450*450 4-23
300-900-8-37 300  800  12  980  45  1320  390  1100  410*410 450*450 4-23
300-800-12-45 300 500 15 980 45 1450 390 1100 410*410 450*450 4-23
300-500-15-45 300  800  15  980  55  1450  390  1100  410*410 450*450 4-23
300-800-15-55 300  600  20  980  55  1550  390  1100  410*410 450*450 4-23
300-600-20-55 300 800 20 980 75 1800 390 1100 410*410 450*450 4-23
300-800-20-75 300  950  20  980  90  1870  390  1100  410*410 450*450 4-23
300-950-20-90 300  1000  25  1450  110  1800  390  1100  410*410 450*450 4-23
300-1000-25-110 300 800 32 1450 110 1800 390 1100 410*410 450*450 4-23
300-800-32-110 300  800  36  1450  132  1870  390  1100  410*410 450*450 4-23
300-800-36-132 350  1200  980  45  1400  480  1250  430*430 480*480 4-23
350-1200-8-45 350 1100 10 980 55 1450 480 1250 430*430 480*480 4-23
350-1100-10-55 350  1300  12  980  75  1480  480  1250  430*430 480*480 4-23
350-1300-12-75 350  1500  15  980  90  1550  480  1250  430*430 480*480 4-23
350-1500-15-90 350 1200 18 980 90 1550 480 1250 430*430 480*480 4-23
350-1200-18-90 350  1100  28  980  132  1700  480  1500  430*430 480*480 4-23
350-1100-28-132 350 1000 36 980 160 1780 480 1500 430*430 480*480 4-23
350-1000-36-160 400  1760  7.5  580  55  1750  550  1450  470*470 520*520 4-33
  400  1300  10  580  55  1750  550  1450  470*470 520*520 4-33
  400  2600  740  75  1750  550  1450  470*470 520*520 4-33
400-1300-10-55 400 1500 10 980 75 1750 550 1450 470*470 520*520 4-33
400-2600-6-75 400  2200  980  110  1800  550  1450  470*470 520*520 4-33
400-1500-10-75 400  2000  15  740  132  1800  550  1450  470*470 520*520 4-33
400-2200-9-110 400  1600  20  740  132  1800  550  1450  470*470 520*520 4-33
400-2000-15-132 400  1700  22  980  160  1900  550  1450  470*470 520*520 4-33
400-1600-20-132 400  1500  26  980  160  1900  550  1450  470*470 520*520 4-33
400-1700-22-160 400  2000  22  980  200  1950  550  1450  470*470 520*520 4-33
400-1500-26-160 400  1700  30  980  200  1950  550  1450  470*470 520*520 4-33
400-2000-22-200 400 1800 32 740 250 2100 550 1450 470*470 520*520 4-33
400-1700-30-200 400  2000  30  740  280  2100  550  1450  470*470 520*520 4-33
400-1800-32-250 500  2500  10  740  110  1900  650  1600  620*620 700*700 4-33
400-2000-30-280 500  2000  15  740  110  1900  650  1600  620*620 700*700 4-33
500-2500-10-110 500  2800  10  740  132  1950  650  1600  620*620 700*700 4-33
500-2000-15-110 500  3600  10  740  160  2100  650  1650  620*620 700*700 4-33
500-2800-10-132 500  2600  15  740  160  2100  650  1650  620*620 700*700 4-33
500-3600-10-160 500  2000  20  740  160  2100  650  1650  620*620 700*700 4-33
500-2600-15-160 500 3000 15 740 200 2200 650 1650 620*620 700*700 4-33
500-2000-20-160 500  2500  20  740  200  2200  650  1650  620*620 700*700 4-33
500-3000-15-200 500  2800  18  740  220  2250  650  1650  620*620 700*700 4-33
500-2500-20-200 500  2400  22  740  220  2250  650  1650  620*620 700*700 4-33
500-2800-18-220 500  4000  15  980  250  2300  650  1600  620*620 700*700 4-33
500-2400-22-220 500  2600  24  980  250  2300  650  1600  620*620 700*700 4-33
