Wholesale Floating Submersible Sewage Pumping Station


Intelligent Prefabricated Series Pumping Stations

Floating Submersible Sewage Pumping Station

Features, functions, and advantages
Features: No forebay, no pump room, zero civil engineering, zero construction difficulty, high assembly rate (100%)
Function: Zero sedimentation, zero blockage, ultra-low water level operation (0.5m water depth), intelligent, assembled, one click start, remote control
Advantages: Small investment, short construction period (1 day), long lifespan (20 years), no occupation of farmland, easy maintenance
Recommended application conditions
Floating submersible sewage pumping stations have no limit on the depth of the river, and it is recommended to prioritize pipeline water supply projects.

Product Description

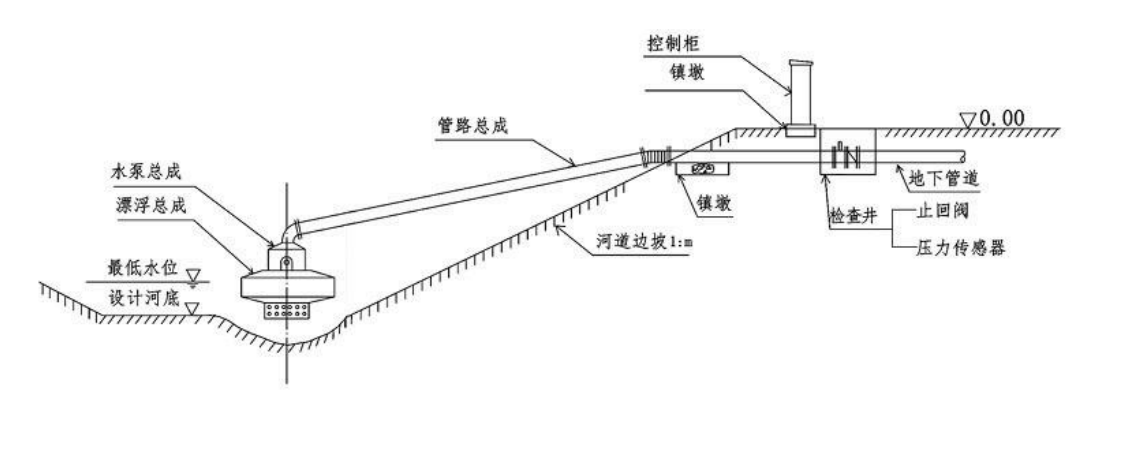

Structural composition

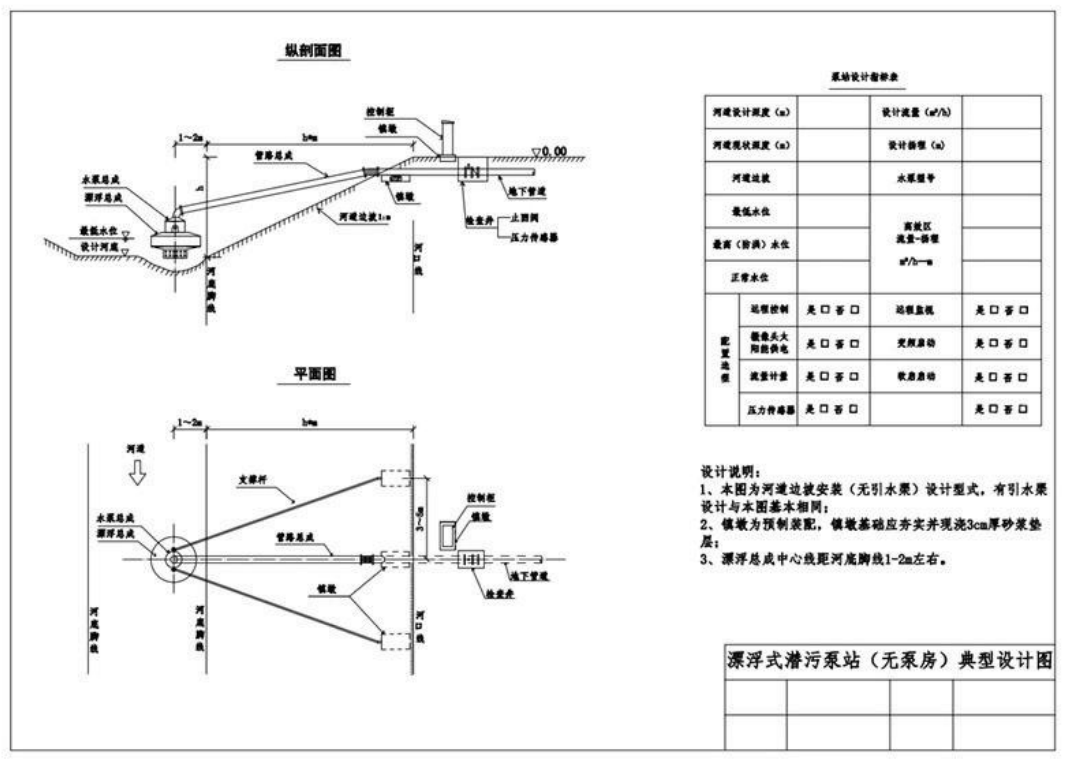

Typical Design Drawing

Selection range
Pump type
Flow rate (m³/h) Head (m) Power (kw)
Submersible sewage pump 60-1200 8-60 7.5-132



Scope of application
WQ series submersible sewage pump station - generally used for pipeline water transmission projects
