Wholesale Float into the Underwater Horizontal Centrifugal Pump Station


Intelligent Prefabricated Series Pumping Stations

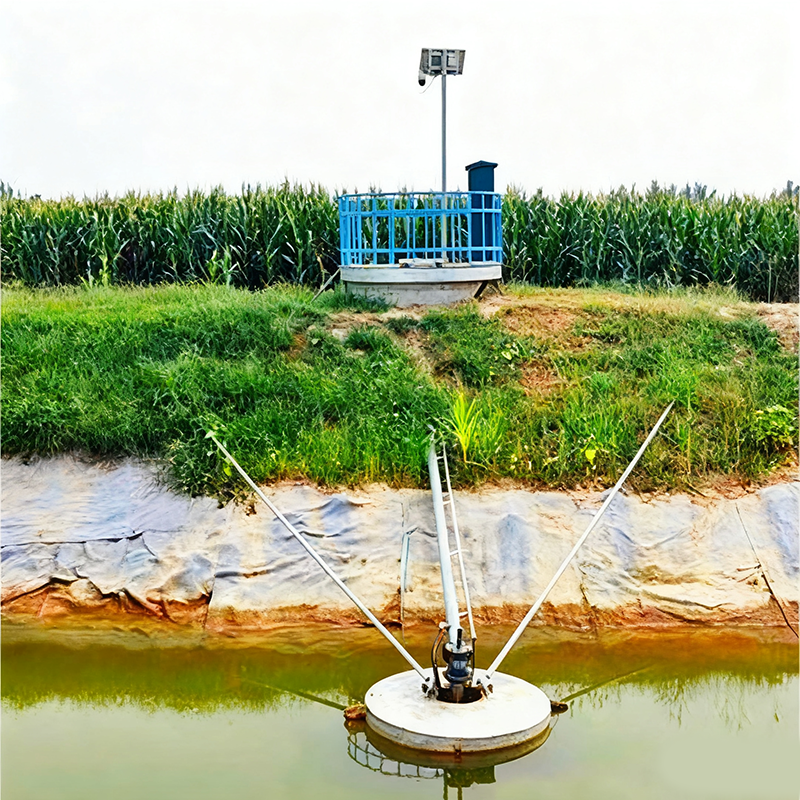

Float into the Underwater Horizontal Centrifugal Pump Station

Features, functions, and advantages
Features: No forebay, no pump room, zero civil engineering, zero construction difficulty, high assembly rate (100%)
Function: Zero sedimentation, zero blockage, ultra-low water level operation, intelligent, assembled, one click start, remote control
Advantages: Small investment, short construction period (1 day), long lifespan (20 years), no occupation of farmland, convenient maintenance
Recommended application conditions
The maintenance and application of the horizontal centrifugal pump station are very convenient, and it is preferred to use it when the river depth is 5-6.5m and the minimum water depth is about 0.5m.

Product Description

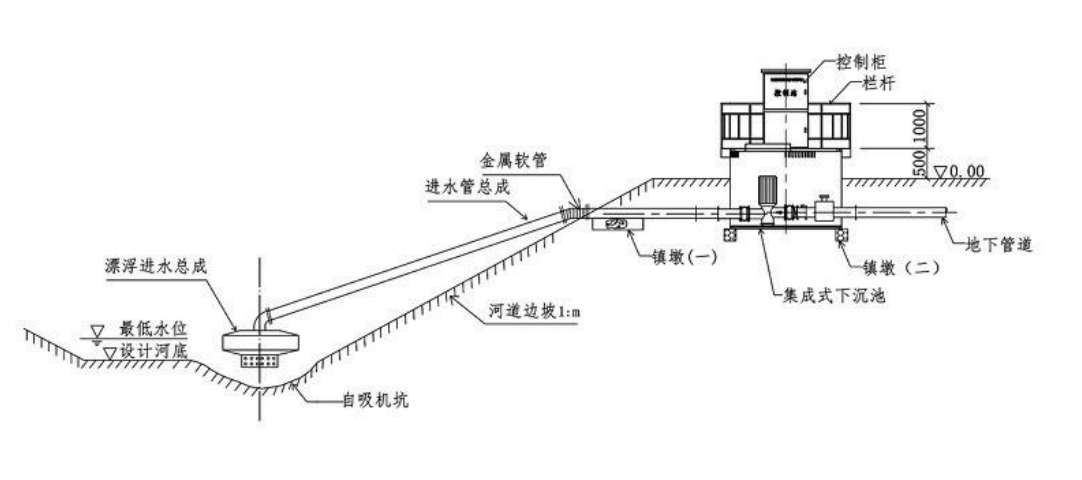

Structural composition

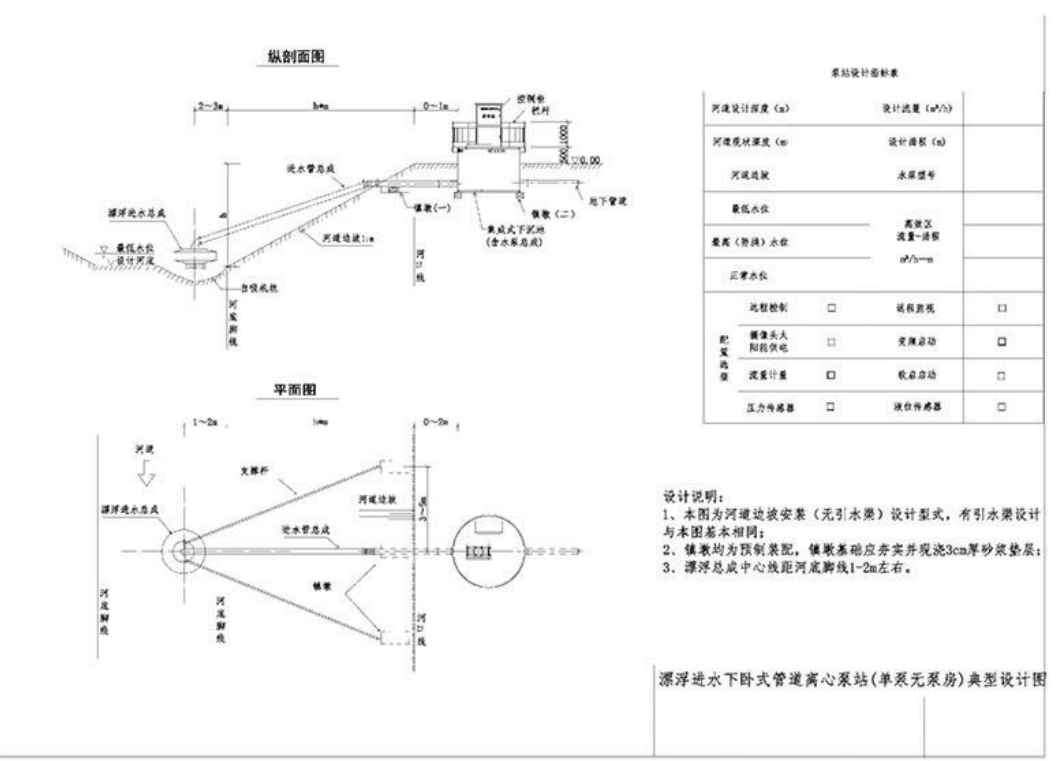

Typical Design Drawing

Design selection scope

Selection range
Pump type
Flow rate (m³/h) Head (m) Power (kw)
Vertical pipeline 60-1400 10-80 7.5-160
Double suction centrifugal pump 200-2300 10-80 22-110
Mixed-flow pump 130-3300 3-20 7.5-132



Scope of application
HW mixed flow pump - generally used for open channel water supply or low head pipeline water supply
SH double suction pump - generally used for pipeline water supply
ISG, ISW vertical and horizontal pipeline pumps - generally used for pipeline water supply
