Wholesale Floating Axial Flow Pump Station


Intelligent Prefabricated Series Pumping Stations

Floating Axial Flow Pump Station

Features, functions, and advantages
Features: No forebay, no pump room, zero civil engineering, zero construction difficulty, high assembly rate (100%)
Function: Zero sedimentation, zero blockage, ultra-low water level operation (0.5m water depth), intelligent, assembled, one click start, remote control
Advantages: Small investment, short construction period (1 day), long lifespan (20 years), no occupation of farmland, easy maintenance
Recommended application conditions
The floating submersible axial flow pump station has no limit on the depth of the river, and it is recommended to prioritize the use of low lift and high flow Yangshui stations.

Product Description

Structural composition

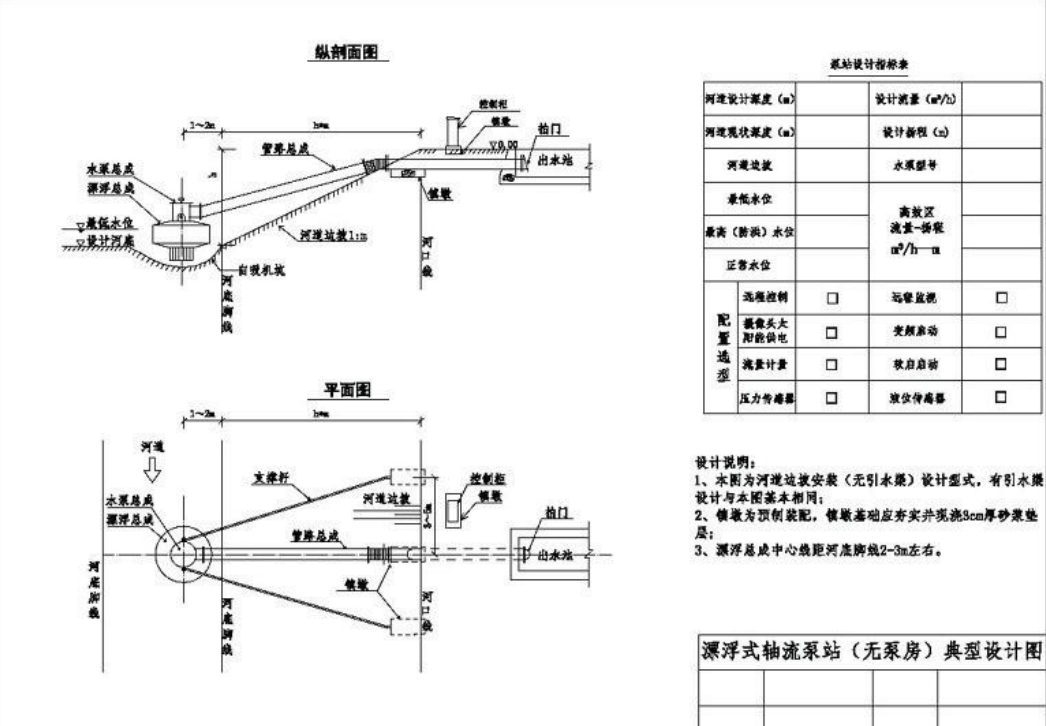

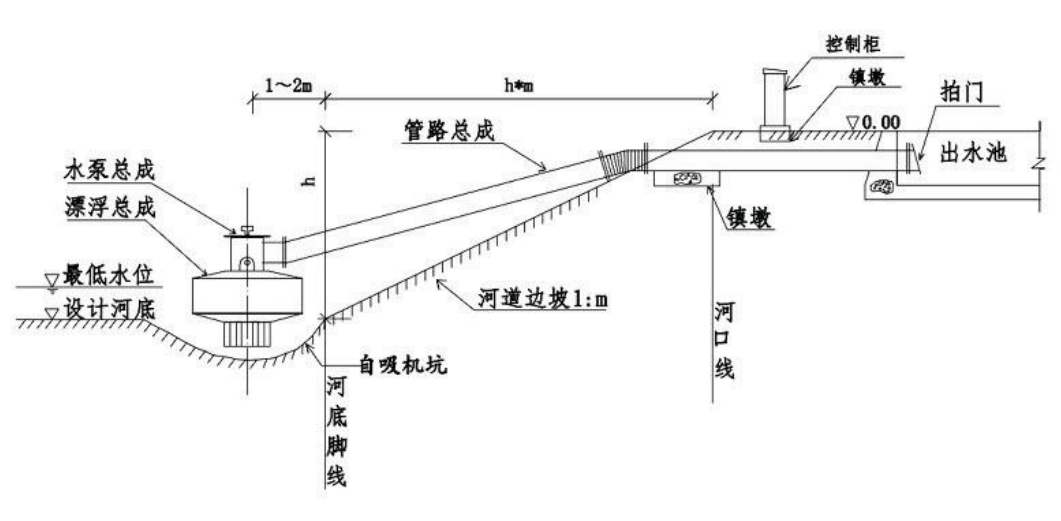

Typical Design Drawing

Selection range
Pump type
Flow rate (m³/h) Head (m) Power (kw)
Submersible axial flow pump 800-6000 3-12 11-185



Scope of application
QZ, QH series submersible axial flow pumps, submersible mixed flow pump stations - generally used for low head, high flow pump stations for open channel water supply.
