Product Description

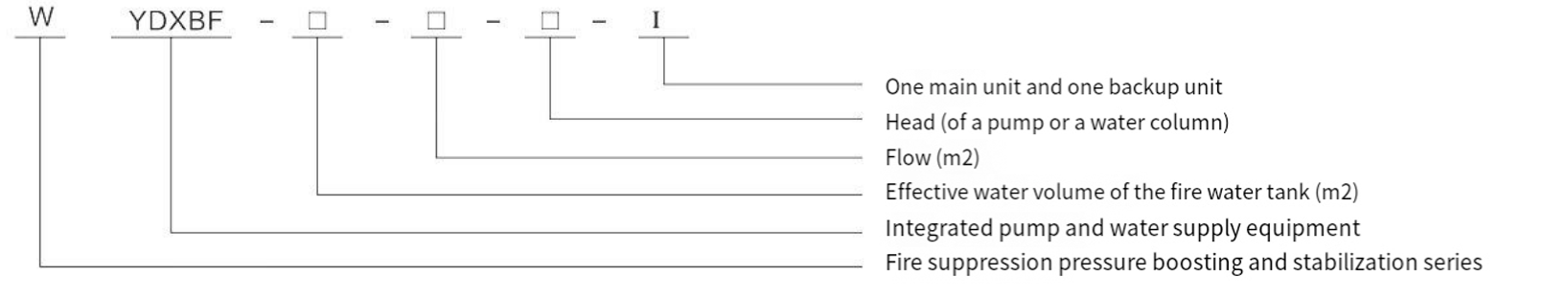

The significance of WYDXBF fire pressure boosting and stabilizing water supply equipment model

WYDXBF Fire Pressure Boosting and Stabilizing Water Supply Equipment Table

Serial number	Pump station model	Firefighting facilities	Water pump						Control cabinet model	Air pressure tank
Serial number	Pump station model	Firefighting facilities	Model	Quantity (units)	Operation mode	Flow rate (m ³/h)	Head (m)	Power (kw)	Control cabinet model	Volume (l)	Model
1	WYDXBF-6-18-30-I	Boosting facilities	XBD4.05/5GQ-200QJ20/3	2	One in use and one standby	18	30	4	JSK2/4	300	GC310
2	WYDXBF-9-18-30-I	Boosting facilities	XBD4.05/5GQ-200QJ20/3			18	30	4	JSK2/4	300	GC310
3	WYDXBF-12-18-30-I	Boosting facilities	XBD4.05/5GQ-200QJ20/3			18	30	4	JSK2/4	300	GC310
4	WYDXBF-18-3.6-30-I	Boosting facilities	XBD3.6/1GQ-100QJ3.6/3			3.6	30	0.75	JSK2/0.75	150	GC170
5	WYDXBF-18-18/3.6-30-I	Boosting facilities	XBD4.05/5GQ-200QJ20/3			18	30	4	JSK2/4	300	GC310
5	WYDXBF-18-18/3.6-30-I	Boosting facilities	XBD3.6/1GQ-100QJ3.6/3			3.6	30	0.75	JSK2/0.75	150	GC170

WYDXBF Fire Pressure Boosting and Stabilizing Water Supply Equipment Table

Serial number	Nominal volume (m ³)	Effective volume (m ³)	Box size (mm)			Diameter of takeover DN (mm)				Location parameters (mm)		Number of foundation bars and foundation spacing (mm)	Operating weight (Kg)
			L	B	H	Inlet pipe DN1	Water outlet pipe DN2	Drainage pipe DN3	Drain pipe DN4	Inlet pipe h1	Inlet pipe h2
1	10	6	2500	2000	2000	50	100	70	50	50	100	3/1000,1/500	9800
2	12	9	3000	2000	2000		100					4/1000	12900
3	18	12	3000	3000	2000		100					4/1000	15400
4	24	18	4000	3000	2000		100					5/1000	20900
5	32	18	4000	4000	2000		100					5/1000	27000
