Water Supply Pumps

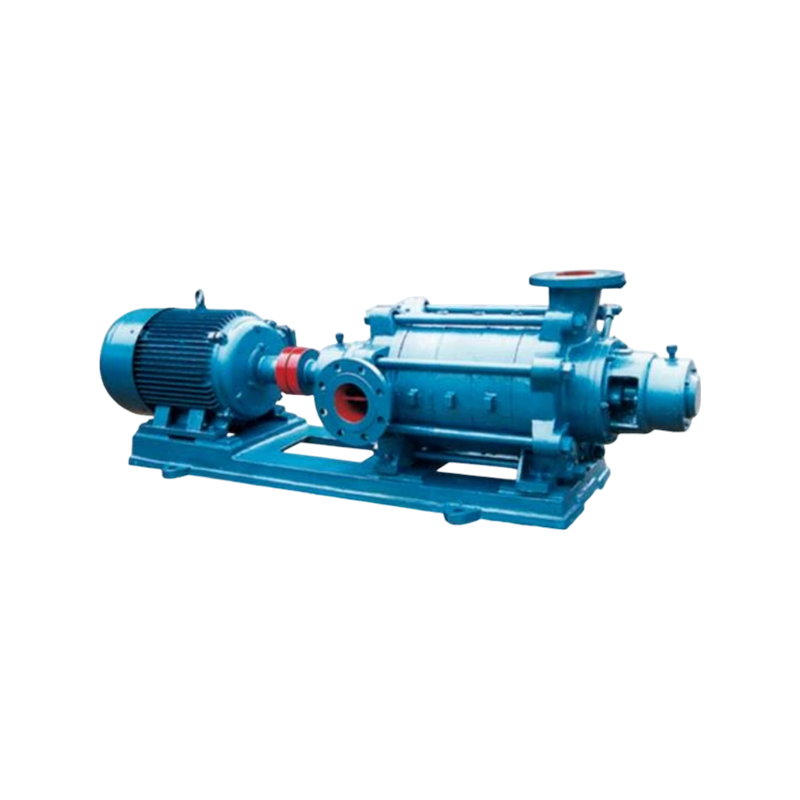

TSWA Series Horizontal Multistage Centrifugal Pumps

Product Overview
The TSWA multi-stage centrifugal pump is an energy-saving series product developed and produced by our unit, which has the advantages of high efficiency, low operating noise, good anti cavitation performance, reasonable structure, and long service life.
The TSWA multi-stage centrifugal pump series has 5 varieties and 40 specifications, with a performance range of flow rate Q=15-191m ³/h, head H=17-247m, and speed n=1450r/min.
The TSWA multi-stage centrifugal pump can transport clean water below 80 ℃ or liquids with physical and chemical properties similar to water. It is widely used for water supply and drainage in urban buildings, factories, and mines, especially for cooling and air conditioning water supply in hotels, restaurants, and entertainment venues.

+ Contact us

PREV: JSDK Immersion Vertical Multistage Centrifugal Pump

Product Description

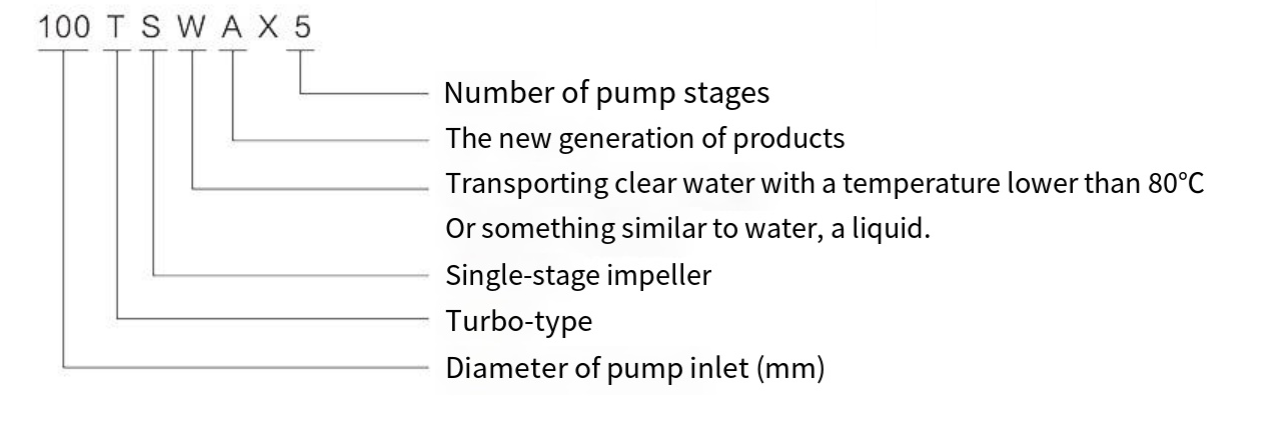

Model significance

Model	Series	Traffic Q		Head(m)	Motor power(kW)	Vacuum suction HS(m)
Model	Series	(m³/h)	(L/s)	Head(m)	Motor power(kW)	Vacuum suction HS(m)
50TSWA	2	18	5	18.4	2.2	7.2
	3	18	5	27.6	3	7.2
	4	18	5	36.8	4	7.2
	5	18	5	46	5.5	7.2
	6	18	5	55.2	5.5	7.2
	7	18	5	64.4	7.5	7.2
	8	18	5	73.6	7.5	7.2
	9	18	5	82.8	7.5	7.2
75TSWA	2	36	10	23	5.5	7.2
	3	36	10	34.5	7.5	7.2
	4	36	10	46	11	7.2
	5	36	10	57.5	11	7.2
	6	36	10	69	15	7.2
	7	36	10	80.5	15	7.2
	8	36	10	92	18.5	7.2
	9	36	10	103.5	18.5	7.2
100TSWA	2	69	19.2	31.2		7
	3	69	19.2	46.8	15	7
	4	69	19.2	62.4	22	7
	5	69	19.2	78	30	7
	6	69	19.2	93.6	30	7
	7	69	19.2	109.2	37	7
	8	69	19.2	124.8	45	7
	9	69	19.2	140.4	45	7
125TSWA	2	90	25	43.2	22	6.8
	3	90	25	64.8	30	6.8
	4	90	25	86.4	45	6.8
	5	90	25	108	55	6.8
	6	90	25	129.6	75	6.8
	7	90	25	151.2	75	6.8
	8	90	25	172.8	90	6.8
	9	90	25	194.4	90	6.8
150TSWA	2	155	43	60	45	7.7
	3	155	43	90	75	7.7
	4	155	43	120	90	7.7
	5	155	43	150	110	7.7
	6	155	43	180	132	7.7
	7	155	43	210	155	7.7
	8	155	43	240	180	7.7
	9	155	43	270	180	7.7
