JSDK Immersion Vertical Multistage Centrifugal Pump

Product Overview
JSDK is a new generation product independently developed by Jingshui based on JSDQ's mature products. The product adopts a brand new industrial hydraulic structure design, and its energy efficiency index can reach MEI ≥ 0.7. It has the characteristics of energy saving, low noise, environmental protection, compact structure, beautiful appearance, light weight, easy use and maintenance, and high reliability.
JSDK is a non self suction vertical multi-stage centrifugal pump installed with a standard motor. The motor shaft is directly connected to the pump shaft through a coupling with the pump head. A protective device can be configured as needed to effectively protect the pump from dry running, missing items, overload, and other conditions. To meet the installation depth of the sink or container, a cavity can be installed to change the length of the pump itself. The length of different stages can be found in the size and weight table and the available product range.
Typical Applications
JSDK is used for conveying machine tool coolant, lubricants, condensate water, industrial invasive equipment, and other applications suitable for immersion pumps. It is suitable for different temperature, flow rate, and pressure ranges, and is specifically used for electric discharge machines, lathes, grinders, machining centers, cooling devices, industrial cleaning equipment, filtration systems, etc.
Working conditions
Liquid: A clean, thin, non flammable, non explosive liquid that does not contain particles or fibers, or has physical and chemical properties similar to water
Liquid temperature: -20 ℃ to 70 ℃, 70 ℃ to 105 ℃
Environmental temperature: maximum+40 ℃
Altitude: less than 1000m

+ Contact us

PREV: VCP Series Vertical Long Shaft Pumps
NEXT: TSWA Series Horizontal Multistage Centrifugal Pumps

Product Description

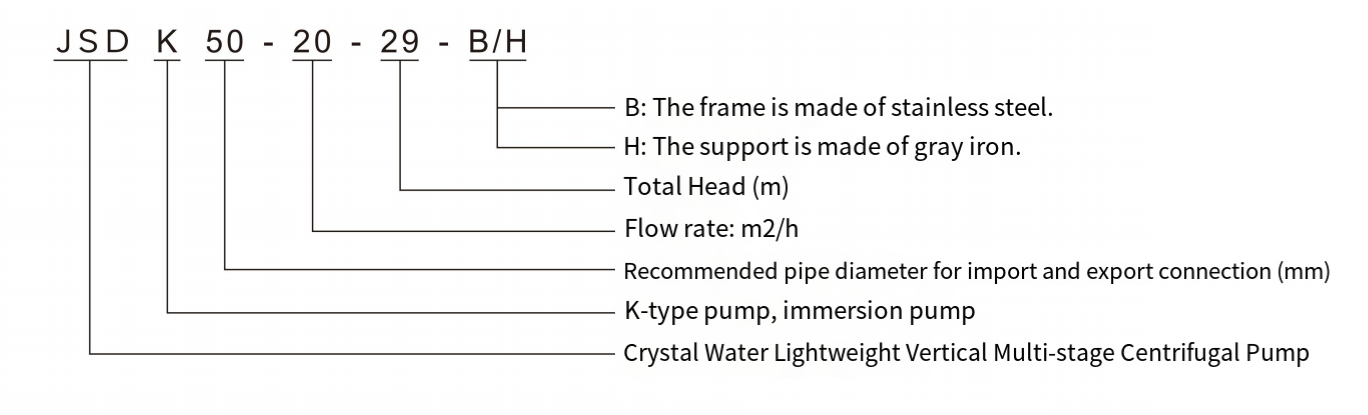

Model Description

JS DK25 - 1 performance table
Serial number	Model	Equipped with motor power (kW)	Q(m³/h)	0.5	0.8	1	1.2	1.4	1.6	1.8	2	2.2
1	JSDK25-1-10.5	0.37	H(m)	11.5	11	10.5	10.2	9.7	9	8	6.8	5.5
2	JSDK25-1-16			17	16.5	16	15.5	14.8	13.5	12	10	8.5
3	JSDK25-1-21.5			23	22.5	21.5	21	19.8	18	16	13.5	11
4	JSDK25-1-27			28.5	28	27	26	24.5	22.5	20	17	14
5	JSDK25-1-32.5			34.5	33.5	32.5	31.5	30	27	24	20.5	17
6	JSDK25-1-38			40.5	39.5	38	37	35	31.5	28	24	20
7	JSDK25-1-43.5	0.55		46	45	43.5	42	40	36.5	33	27.5	23.5
8	JSDK25-1-49			52	51	49	47	45	41	37	32	27
9	JSDK25-1-55			58	56.5	55	52.5	50	46	42	36.5	30.5
10	JSDK25-1-61			63.5	62.5	61	58.5	55	51	47	40	33.5
11	JSDK25-1-67	0.75		69	68	67	64.5	61	56.5	52	44.5	37
12	JSDK25-1-73			75	74	73	70	66.5	61.5	56	49	40.5
13	JSDK25-1-84			86.5	85.5	84	81	76.5	71	65	57	47
14	JSDK25-1-95	1.1		98	96.5	95	92	86.5	80.5	73	64	53
15	JSDK25-1-106			109	107.5	106	103	96.5	90.5	82	72	59
16	JSDK25-1-117			121	125	122.5	118	112.5	105	95	83	69
17	JSDK25-1-122.5			127	125	122.5	118	112.5	105	95	83	69
18	JSDK25-1-128	1.5		133	131	128	123	118	110	100	87	72.5
19	JSDK25-1-139			145	142.5	139	137	129	120	109	95	79.5
20	JSDK25-1-150			157	154	150	145	138	130	118	103	86.5
21	JSDK25-1-167			174	171	167	161	153	145	132	116	96.5
22	JSDK25-1-179	2.2		186	183	179	172	163	155	141	125	103.5
23	JSDK25-1-185			192	189	185	177	168	160	146	129	107
24	JSDK25-1-191			198	195	191	183	173	165	151	133	111
25	JSDK25-1-203			211	207	203	195	184	175	160	141	118
26	JSDK25-1-215			224	220	215	207	194	185	169	149	125
27	JSDK25-1-226			236	232	226	219	205	195	178	157	132
28	JSDK25-1-237			248	244	237	231	215	205	187	165	139
