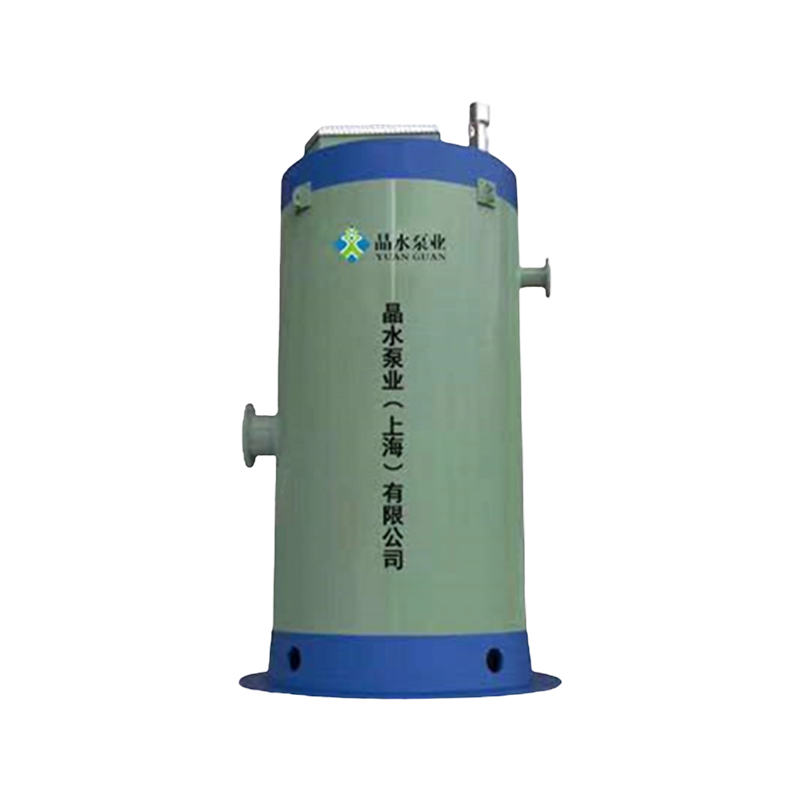

JSWS(YZ) Integrated Prefabricated Pumping Station

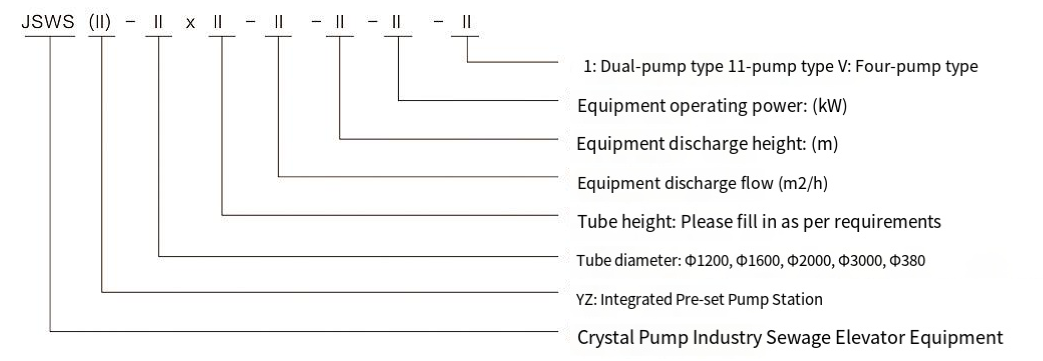

Equipment Model Description

Characteristic description
1. Very little land occupation
Prefabricated pump stations are buried underground, without pump station civil engineering on the ground, and do not occupy land indicators. The buried structure integrates it with the surrounding environment, making it beautiful and elegant, and creating a beautiful environment.
2. Integrated product
Whether you require a dry or wet pump pit, or a combination of both, we can accurately prefabricate this pump station. As an integrated unit transportation, the pump station includes components such as cylinder system, water pump system, grille system, pipeline system, valve system, control system, etc.
3. Durable and sturdy
The equipment cylinder is made of alkali free fiberglass and wrapped with 901 resin. Its strength is twice that of traditional laminated fiberglass, with a circumferential tensile strength greater than 300MPa, an axial tensile strength greater than 80MPa, and a compressive strength greater than 200MPa. It can fully resist corrosion, tearing, and other destructive forces, and ensure permanent waterproofing, durability, and sturdiness.
4. Short project duration
Prefabricated pump stations are supplied as complete sets, and the assembly and testing of various systems are completed in the factory, greatly reducing the time required for installation and commissioning after the goods arrive at the site. The workload of civil engineering is only 1/10 of that of traditional pump stations. Greatly shortened the duration of the entire project.
5. Efficient and environmentally friendly, cost saving
The prefabricated pump station ensures efficient operation of the system through CFD flow field analysis, and in addition, the crystal water dedicated automatic control system ensures that the water pump can automatically adjust according to system requirements, ensuring automatic and efficient operation and saving operating costs. In addition, compared to traditional pump station structures, it saves nearly 25% in pump station investment. And it occupies a small area.
6. Fully automatic control
Use float switch (standard) input type liquid level transmitter or ultrasonic level gauge and other sensors to detect the liquid level and automatically control the start and stop of the water pump. Various protection functions such as overload and short circuit are complete, which can effectively reduce the damage rate of equipment.
Additional optional features can be added according to customer needs, such as a fully Chinese human-machine interface that dynamically displays the operating status and alarm information of each device; Establish wireless WiFi signal reception and monitor the operation, malfunction, and other status of the device using a mobile terminal (phone or tablet) (when controlling with a mobile terminal, a human-machine interface must be provided); Utilize remote monitoring software to remotely monitor the operational status of devices from a computer and collect and manage data.
7. Easy installation and maintenance
Prefabricated pump station is installed as a whole; Equipment such as pumps and grates in the pump station do not need to enter the cylinder during maintenance, and can be directly lifted in and out from the top; In the internal pipeline system, there are maintenance platforms and climbing stairs inside the pump station.
8. Long service life
The inner wall of the cylinder is smooth and can be used for a long time without getting dirty or requiring maintenance. The water pump system, grille system, and pipeline system are all made of anti-corrosion materials, with a long service life.

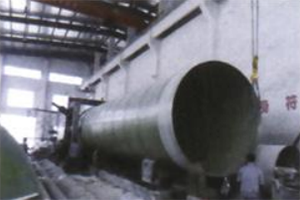

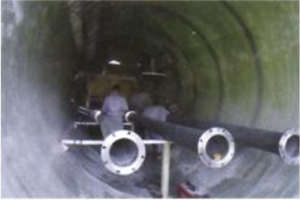

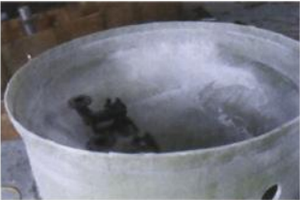

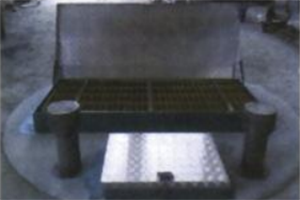

Pump barrel: GRP reinforced winding glass fiber barrel with computer-controlled process, continuous winding, uniform thickness, one-time molding, ensuring design requirements, stable quality, permanent waterproof and leak proof.	Unique bottom design: Optimized anti settling pit bottom design, reduces particle sedimentation, and conforms to fluid dynamics anti floating design.	Pump station top cover design: High and light GRP molding, reasonable layout, and efficient utilization.	Internal design of pump barrel: factory integration, integrated delivery, diversified management, high-quality 304 material valves, all accessories installed before leaving the factory. Maintenance platform: Designed and laid out according to customer needs, with the maintenance platform and cylinder having the same lifespan.
