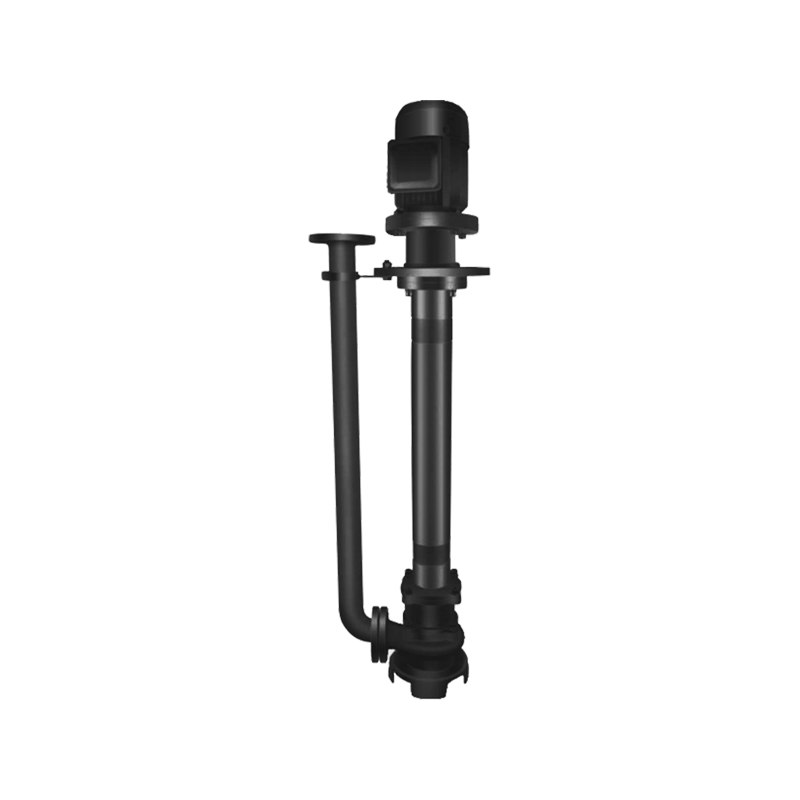

YW Series Non-Clogging Single-Stage Pipeline Submersible Sewage Pumps

YW pump features

Huge Road with anti-clogging design of hydraulic components,greatly improve the dirt,through capacity,and can effectively through  the pump fivetimes the diameter of the fiber material and a diameter of diameter of about 50%of the solid particles.

Design is reasonable,electrical motor is suitable,efficient,energy-saving effect is remarkable.

Seal double-face carbide material,a long time in the oil rom to run,can pump more than 8000 hours of continuous operation.

Pumps for vertical structure,immersed in the liquid when the pump is easy to start and therefore there is no exhaust to find problems,also it has non-leakage characteristics,liquid depth of up to 0.5-5 meters.

Spindle structure of modern,reliable,pumps and motors used Coupling,shaft size precision,ensuring a balance of the pump running,with sufficient safety factor.

Pumps are single-tube installation and installation of two pairs of tube,bearing entities in installation has round and square disc..



+ Contact us
PREV:
NEXT:

Product Description

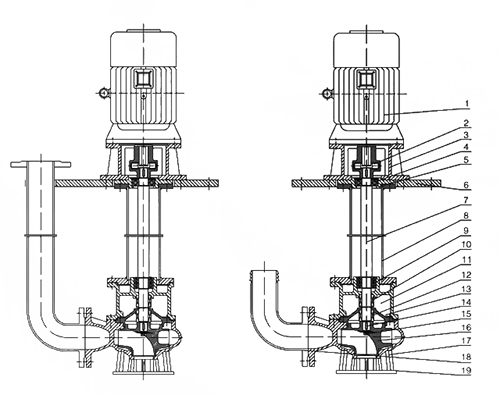

YW series structure diagram

1. Electric motor 11. Oil chamber
2. Shaft joint 12. Mechanical seal
3. Motor cabinet 13. Back shroud
4. Upper bearing 14. Key
5. Upper bearing support 15. Impeller bolt
6. Installation plate 16. Impeller
7. Lengthened axle 17. Pump body
8. Supporting tube 18. Discharge tube
9. Lower bearing 19. Chassis
10. Upper mechanical seal

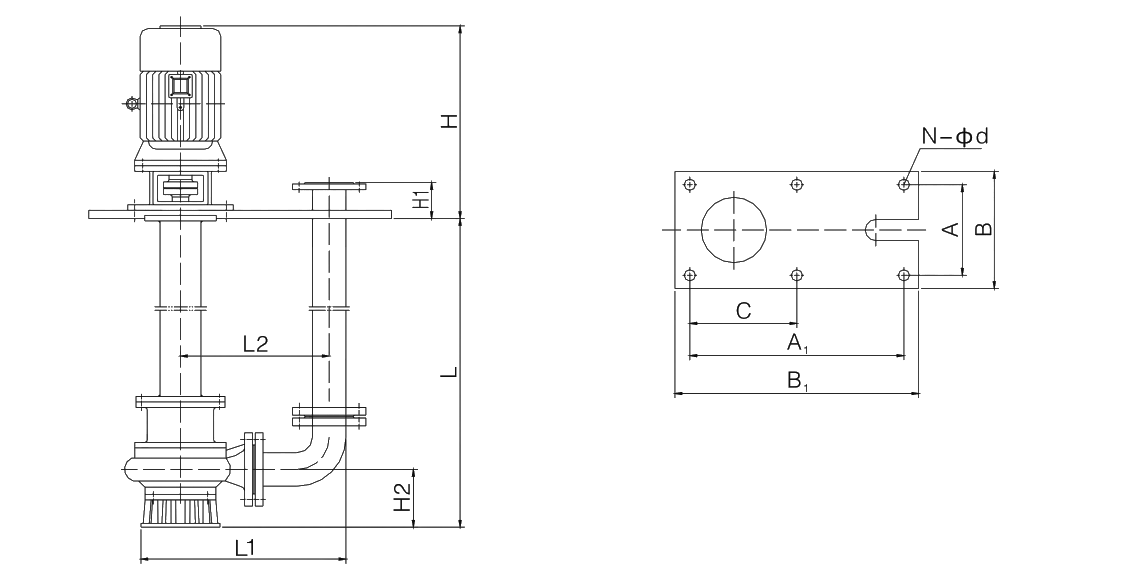

YW series installation size diagram

Note: Lis the immersion depth

YW performance parameters and installation size table

Type Calibe(φ) Flowing rate(m³/h) Head(m) Rotation speed(r/min) Power(KW) H H₁ H₂ L₁ L₂ A A₁ B B₁ N-φd C
25-8-22-1.5 25 8 22 2900 1.5 360 60 115 310 200 230 500 280 560 4-14 -
50-20-7-0.75 50 20 7 2900 0.75 360 80 125 405 225 250 550 300 600 4-14 -
50-10-10-0.75 50 10 10 2900 0.75 360 80 125 405 225 250 550 300 600 4-14 -
50-15-15-1.5 50 15 15 2900 1.5 370 80 125 405 225 250 550 300 600 4-14 -
50-25-10-1.5 50 25 10 2900 1.5 370 80 125 405 225 250 550 300 600 4-14 -
50-20-15-1.5 50 20 15 2900 1.5 370 80 125 405 225 250 550 300 600 4-14 -
50-27-15-2.2 50 27 15 2900 2.2 400 80 125 405 225 250 550 300 600 4-14 -
50-15-25-2.2 50 15 25 2900 2.2 400 80 125 405 225 250 550 300 600 4-14 -
50-18-30-3 50 18 30 2900 3 440 80 125 405 265 250 550 300 600 4-14 -
50-24-20-4 50 24 20 2900 4 460 80 125 405 265 250 550 300 600 4-14 -
50-25-32-5.5 50 25 32 2900 5.5 540 80 160 405 265 300 550 350 600 4-14 -
50-30-30-7.5 50 30 30 2900 7.5 570 80 160 405 265 300 550 350 600 4-14 -
50-20-40-7.5 50 20 40 2900 7.5 570 80 160 405 265 300 550 350 600 4-14 -
65-42-9-2.2 65 42 9 2900 2.2 400 80 130 440 260 270 550 320 600 4-14 -
65-25-15-2.2 65 25 15 2900 2.2 400 80 130 440 260 270 550 320 600 4-14 -
65-37-13-3 65 37 13 2900 3 440 80 130 440 260 270 550 320 600 4-14 -
65-25-30-4 65 25 30 2900 4 470 80 130 440 260 270 550 320 600 4-14 -
65-40-30-7.5 65 40 30 2900 7.5 570 80 130 450 280 250 550 300 600 4-14 -
65-35-50-11 65 35 50 2900 11 700 80 130 450 300 320 660 380 720 4-14 -
65-35-60-15 65 35 60 2900 15 740 80 130 450 300 320 660 380 720 4-14 -
80-40-7-2.2 80 40 7 2900 2.2 400 100 160 530 325 250 600 300 650 4-14 -
80-30-8-2.2 80 30 8 2900 2.2 400 100 160 530 325 250 600 300 650 4-14 -
80-50-10-3 80 50 10 2900 3 440 100 160 530 325 250 600 300 650 4-14 -
80-43-13-3 80 43 13 2900 3 440 100 160 530 325 250 600 300 650 4-14 -
80-60-13-4 80 60 13 2900 4 470 80 160 530 325 250 600 300 650 4-14 -
80-40-15-4 80 40 15 2900 4 470 80 160 530 325 250 600 300 650 4-14 -
80-80-15-7.5 80 80 15 2900 7.5 570 80 170 530 325 250 600 300 650 4-14 -
80-65-25-7.5 80 65 25 2900 7.5 570 80 170 530 325 250 600 300 650 4-14 -
100-100-7-4 100 100 7 1450 4 470 100 180 630 400 320 660 380 720 4-18 -
100-80-10-4 100 80 10 1450 4 570 100 180 630 400 320 660 380 720 4-18 -
100-110-10-5.5 100 110 10 1450 5.5 570 100 190 630 400 320 660 380 720 4-18 -
100-65-15-5.5 100 65 15 1450 5.5 570 100 190 630 400 320 660 380 720 4-18 -
100-100-15-7.5 100 100 15 1450 7.5 570 100 190 630 400 320 660 380 720 4-18 -
100-85-20-7.5 100 85 20 1450 7.5 570 100 190 630 400 320 660 380 720 4-18 -
100-50-22-7.5 100 50 22 1450 7.5 570 100 190 630 400 320 660 380 720 4-18 -
100-100-25-11 100 100 25 1450 11 700 100 200 700 430 380 720 380 800 4-18 -
100-70-22-11 100 70 22 1450 11 700 100 200 700 475 400 820 380 900 4-18 -
100-50-35-11 100 50 35 1450 11 700 100 200 700 475 400 820 400 900 4-18 -
100-87-28-15 100 87 28 1450 15 740 100 220 700 475 400 820 400 900 4-18 -
100-100-30-15 100 100 30 1450 15 740 100 220 700 475 400 820 400 900 4-18 -
100-100-35-18.5 100 100 35 1450 18.5 740 100 220 700 470 400 820 400 900 4-18 -
100-60-50-15 100 60 50 2900 15 740 100 220 700 470 400 820 400 900 4-18 -
150-140-7-5.5 150 140 7 1450 5.5 510 140 220 840 520 520 920 600 1000 4-23 -
150-120-10-5.5 150 120 10 1450 5.5 510 140 220 840 520 520 920 600 1000 4-23 -
150-210-7-7.5 150 210 7 1450 7.5 510 140 220 840 520 520 920 600 1000 4-23 -
150-145-9-7.5 150 145 9 1450 7.5 510 140 220 840 520 520 920 600 1000 4-23 -
150-110-15-7.5 150 110 15 1450 7.5 510 140 220 840 520 520 920 600 1000 4-23 -
150-200-10-15 150 200 10 1450 15 740 140 220 840 520 520 920 600 1000 4-23 -
150-180-15-15 150 180 15 1450 15 740 140 220 840 520 520 920 600 1000 4-23 -
150-140-18-15 150 140 18 1450 15 740 140 220 840 520 520 920 600 1000 4-23 -
150-200-14-18.5 150 200 14 1450 18.5 800 140 220 840 520 520 920 600 1000 4-23 -
150-180-20-18.5 150 180 20 1450 18.5 800 140 220 840 520 520 920 600 1000 4-23 -
150-150-25-18.5 150 150 25 1450 18.5 800 140 220 840 520 520 920 600 1000 4-23 -
150-200-22-22 150 200 22 1450 22 800 140 220 840 520 520 920 600 1000 4-23 -
150-180-25-22 150 180 25 1450 22 800 140 220 840 520 520 920 600 1000 4-23 -
150-130-30-22 150 130 30 1450 22 800 140 220 840 520 520 920 600 1000 4-23 -
150-250-22-30 150 250 22 1450 30 950 140 275 870 550 520 920 600 1000 4-23 -
150-180-30-30 150 180 30 1450 30 950 140 275 275 275 520 920 600 1000 4-23 -
150-200-30-37 150 200 30 1450 37 950 140 275 275 275 520 920 600 1000 4-23 -
150-150-35-37 150 150 35 1450 37 950 140 275 275 275 520 920 600 1000 4-23 -
150-160-45-37 150 160 45 1450 37 950 140 275 275 275 520 920 600 1000 4-23 -
200-360-6-11 200 360 6 1450 11 740 200 270 1000 630 680 1220 750 1300 4-23 -
200-300-7-11 200 300 7 1450 11 740 200 270 1000 630 680 1220 750 1300 4-23 -
200-400-7-15 200 400 7 1450 15 740 200 270 1000 630 680 1220 750 1300 4-23 -
200-250-11-15 200 250 11 1450 15 740 200 270 1000 630 680 1220 750 1300 4-23 -
200-300-10-18.5 200 300 10 1450 18.5 800 200 270 1000 630 680 1220 750 1300 4-23 -
200-250-15-18.5 200 250 15 1450 18.5 800 200 270 1000 630 680 1220 750 1300 4-23 -
200-400-10-22 200 400 10 1450 22 800 200 270 1000 630 680 1220 750 1300 4-23 -
200-310-13-22 200 310 13 1450 22 800 200 270 1000 630 680 1220 750 1300 4-23 -
200-300-15-22 200 300 15 1450 22 800 200 270 1000 630 680 1220 750 1300 4-23 -
200-400-13-30 200 400 13 1450 30 950 200 270 1000 630 680 1220 750 1300 4-23 -
200-360-15-30 200 360 15 1450 30 950 200 270 1000 630 680 1220 750 1300 4-23 -
200-250-22-30 200 250 22 1450 30 950 200 270 1000 630 680 1220 750 1300 4-23 -
200-350-25-37 200 350 25 1450 37 950 200 270 1000 630 680 1220 750 1300 4-23 -
200-400-25-45 200 400 25 1450 45 870 200 280 1050 650 680 1220 750 1300 4-23 -
200-380-28-45 200 380 28 1450 45 870 200 280 1050 650 680 1220 750 1300 4-23 -
200-250-35-45 200 250 35 1450 45 870 200 280 1050 650 680 1220 750 1300 4-23 -
200-400-30-55 200 400 30 1450 55 950 200 280 1050 650 680 1220 750 1300 4-23 -



Type Calibe(φ) Flowing rate(m³/h) Head(m) Rotation speed(r/min) Power(KW) H H₁ H₂ L₁ L₂ A A₁ B B₁ N-φd C
200-250-40-55 200 250 40 1450 55 950 200 280 1050 650 680 1220 750 1300 4月23日 -
200-350-40-75 200 350 40 1450 75 1070 200 280 1050 650 680 1220 750 1300 4月23日 -
250-600-9-30 250 600 9 980 30 850 250 320 1100 650 680 1220 750 1300 6-23 610
250-500-10-30 250 500 10 980 30 850 250 320 1100 650 680 1220 750 1300 6-23 610
250-700-10-37 250 700 10 1450 37 950 250 320 1100 650 680 1220 750 1300 6-23 610
250-600-12-37 250 600 12 1450 37 950 250 320 1100 650 680 1220 750 1300 6-23 610
250-600-15-45 250 600 15 1450 45 1010 250 320 1100 650 680 1220 750 1300 6-23 610
250-600-20-55 250 600 20 1450 55 1250 250 320 1100 650 680 1220 750 1300 6-23 610
250-700-20-75 250 700 20 1450 75 1310 250 320 1100 650 680 1220 750 1300 6-23 610
250-600-25-75 250 600 25 1450 75 1310 250 320 1100 650 680 1220 750 1300 6-23 610
250-600-30-90 250 600 30 1450 90 1420 250 320 1100 650 680 1220 750 1300 6-23 610
300-900-8-37 300 900 8 980 37 1010 250 400 1200 800 680 1300 750 1400 6-23 650
300-800-12-45 300 800 12 980 45 1250 250 400 1200 800 680 1300 750 1400 6-23 650
300-500-15-45 300 500 15 980 45 1310 250 400 1200 800 680 1300 750 1400 6-23 650
300-800-15-55 300 800 15 980 55 1310 250 400 1200 800 680 1300 750 1400 6-23 650
300-600-20-55 300 600 20 980 55 1420 250 400 1200 800 680 1300 750 1400 6-23 650
300-800-20-75 300 800 20 980 75 1400 250 400 1200 800 680 1300 750 1400 6-23 650
300-950-20-90 300 950 20 980 90 1470 250 400 1200 800 680 1300 750 1400 6-23 650
300-1000-25-110 300 1000 25 1450 110 1400 250 400 1200 800 680 1300 750 1400 6-23 650
300-800-32-110

300

300

800

800

32

36

1450

1450

110

132

1400

1470

 250

400

400

1200

1200

800

800

 680 1300 750 1400 6-23 650
300-800-36-132 350 1200 8 980 45 1250 250 450 1350 950 680 1300 750 1400 6-23 650
350-1200-8-45 350 1100 10 980 55 130 250 450 1350 950 680 1400 750 1500 6-23 700
350-1100-10-55 350 1300 12 980 75 1360 250 450 1350 950 680 1400 750 1500 6-23 700
350-1300-12-75 350 1500 15 980 90 1450 250 450 1350 950 680 1400 750 1500 6-23 700
350-1500-15-90 350 1200 18 980 90 1450 250 450 1350 950 680 1400 750 1500 6-23 700
350-1200-18-90             250       680 1400 750 1500 6-23 700
350-1100-28-132 350 1100 28 980 132 1600 250 450 1500 1100 680 1400 750 1500 6-23 700
350-1000-36-160 350 1000 36 980 160 1680 250 450 1500 1100 680 1400 750 1500 6-23 700
400-1760-7.5-55 400 1760 7.5 580 55 1500 250 470 1540 1100 780 1900 850 2000 6-23 950
400-1300-10-55 400 1300 10 580 55 1500 250 470 1540 1100 780 1900 850 2000 6-23 950
400-2600-6-75 400 2600 6 740 75 1500 250 470 1480 1040 780 1900 850 2000 6-23 950
400-1500-10-75 400 1500 10 980 75 1500 250 470 1480 1040 780 1900 850 2000 6-23 950
400-2200-9-110 400 2200 9 980 110 1580 250 470 1480 1040 780 1900 850 2000 6-23 950
400-2000-15-132 400 2000 15 740 132 1580 250 470 1480 1040 780 1900 850 2000 6-23 950
400-1600-20-132 400 1600 20 740 132 1580 250 470 1480 1040 780 1900 850 2000 6-23 950
400-1700-22-160 400 1700 22 980 160 1800 250 510 1480 1040 780 1900 850 2000 6-23 950
400-1500-26-160 400 1500 26 980 160 1800 250 510 1480 1040 780 1900 850 2000 6-23 950
400-2000-22-200 400 2000 22 980 200 1900 250 510 1480 1040 780 1900 850 2000 6-23 950
400-1700-30-200 400 1700 30 980 200 1900 250 510 1480 1040 780 1900 850 2000 6-23 950
400-1800-32-250 400 1800 32 740 250 2000 250 510 1540 1100 780 1900 850 2000 6-23 950
400-2000-30-280 400 2000 30 740 280 2000 250 510 1540 1100 780 1900 850 2000 6-23 950
500-2500-10-110 500 2500 10 740 110 1800 250 580 1950 1200 850 2100 950 2200 6-23 1050
500-2000-15-110 500 2000 15 740 110 1800 250 580 1950 1200 850 2100 950 2200 6-23 1050
500-2800-10-132 500 2800 10 740 132 1800 250 580 1950 1200 850 2100 950 2200 6-23 1050
500-3600-10-160 500 3600 10 740 160 1900 250 580 2010 1250 850 2100 950 2200 6-23 1050
500-2600-15-160 500 2600 15 740 160 1900 250 580 2010 1250 850 2100 950 2200 6-23 1050
500-2000-20-160 500 2000 20 740 160 1900 250 580 2010 1250 850 2100 950 2200 6-23 1050
500-3000-15-200 500 3000 15 740 200 2000 250 580 2010 1250 850 2100 950 2200 6-23 1050
500-2500-20-200 500 2500 20 740 200 2000 250 580 2010 1250 850 2100 950 2200 6-23 1050
500-2800-18-220 500 2800 18 740 220 2050 250 580 2010 1250 850 2100 950 2200 6-23 1050
500-2400-22-220 500 2400 22 740 220 2050 250 580 2010 1250 850 2100 950 2200 6-23 1050
500-4000-15-250 500 4000 15 980 250 2100 250 580 1950 1200 850 2100 950 2200 6-23 1050
500-2600-24-250 500 2600 24 980 250 2100 250 580 1950 1200 850 2100 950 2200 6-23 1050
