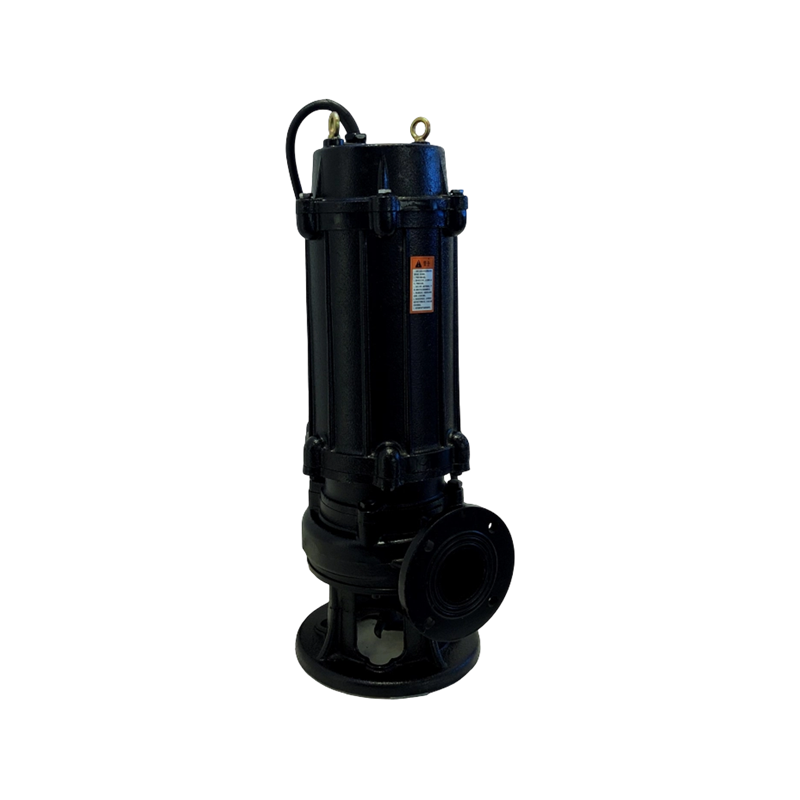

WQ Submersible Sewage Pump

Product introduction

Dredge pump series is the new type environment friendly product successfully developed by our company after several improvements by introducing the advanced international technologies and taking into account the requirements of the users and the service conditions of the product. It's featured by the advantages of high efficiency, energy saving, anti-winding, non blockage, automatic installation and automatic control, etc. It could smoothly transmit the liquid containing large amount of granule solids, food plastics and other long fiber or suspended substances.

This series of pump adopts the unique impeller structure. Compared with the traditional impeller, this pump adopts the form of single flow passage or dual flow passages, which is very similar to the bending tube with the same section area. Therefore, the pump possesses quite good overflowing features, equipped with reasonable volute, the pump has quite high efficiency; the impeller has passed the static and dynamic equilibrium so that the pump is quite stable and reliable in operation.

This series pump has advanced and highly efficient hydraulic performance. It has diversified structure and means of installation, which could simplify the pump station and save the investment.

Mainpurposes
This series of pump is mainly used in the public utility project, buildings, industries dredge, environment protection sewage treatment, industrial enterprises and deliver the sewage, waste water and rainwater containing solid substance and long fibers.

+ Contact us

NEXT: QW Series Mobile High-Efficiency Non-Clogging Sewage Pumps

Product Description

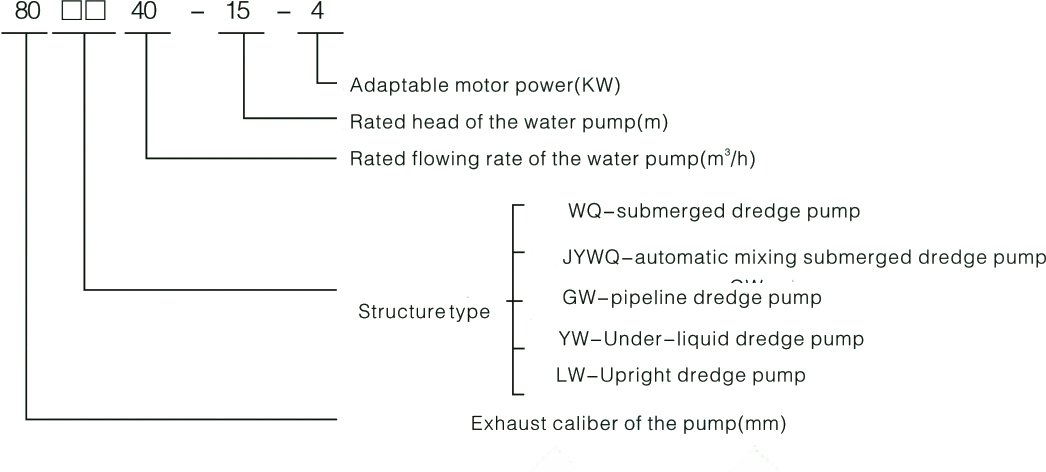

Meaning of each type

Service conditions
media temperature s no more than 60 degree, the media intensity is 120okg/m3 and the PH value ranges from 5 to 9.

Under general circumstances, the pump must be used within stipulated range of head to ensure the overload of the electric motor. lf it's required to used in the whole head range, please note while placing the order so that the manufacturer could prepare it in time.

In the operation process, the curent in the electric pump shall not exceed the rated current of the electric motor.

The exposed part of the pump and electric motor without the internal gravity circularand cooling system out of the liquid level shall not exceed 1/3 of the whole height.

Performing standards
GB/T24674-2009 Sewage and Filth Submerged Electric Pump
JB/T5118-2001 Sewage and Filth Submerged Electric Pump

Alert
It's prohibited to pull the cable with force.
When the submerged electric pump is under operation,it shall be dived completely and it's prohibited for dehydration operation.
When the electric pump is operating,ensure the reliable earthing and it's prohibited for the people or animal to approach the working area or touch the electric pump.
lt's prohibited to use used under or over the stipulated range of head to avoid the overload operation of the electric pump.
When being a litle bit far away from the power source,the cable line must be correspondingly thickened to avoid the low voltage.
After shutdown of the power sourceof theelectric pump，it couldbedrawnoutofthewatersuraceonlyafertheelectrcmotorofthepumpgetingcold, so as to avoid the explosin and other accidents.

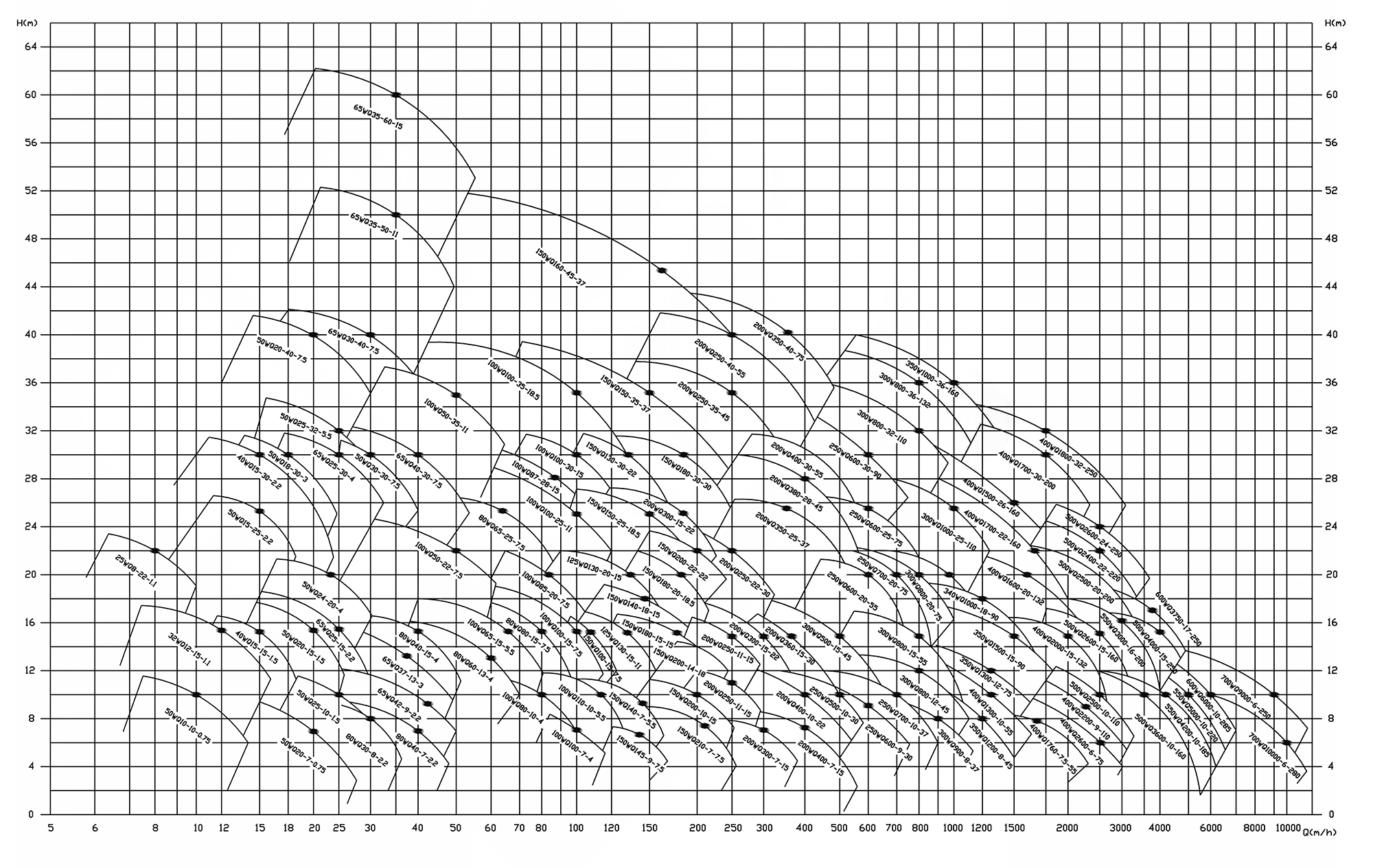

Dredge pump series performance curve graph

Features of the WQ series pump

It's designed by utilizing the big flow channel and blockage-resistance hydraulic components,which greatly improves the passage competence of the waste as the fiber substance thre times of the pump caliber and the solid granule with the diameter of 30%of the pump caliber.

It's designed reasonably and supported with reasonable motor.It has high efficiency and obvious energy saving effects.

The mechanical seal adopts the dual channel series seal and the materials are hard anti-erosive tungsten carbide,which is durable and hard wearing,ensuring the safe operation of the pump for over 26,000 hours.

The grease probe is set in the fully secure submersible sewage pump chamber. When the mechanical seal at the side of the pump is damaged,the water will enter the chamber and the probe gives the signal and protects the pump.

The full automatic safe and protective control cabinet could be equipped according to the user's requirements to supervise the water leakage, creepage,overload and temperature excess of the pump and ensure the reliable and safe operation of the pump.

Under different circumstances, the motor could adopt the water jacketed external circulation cooling system,which ensures the safe operation of the electric pump under water-free(dry)status.

The floating ball switch is subject to change with reference to the water level required to automatically control the starting up and stoppage of the pump andit's not necessary for a person to look after it.

Using the lift motor is running,but must be in required range.

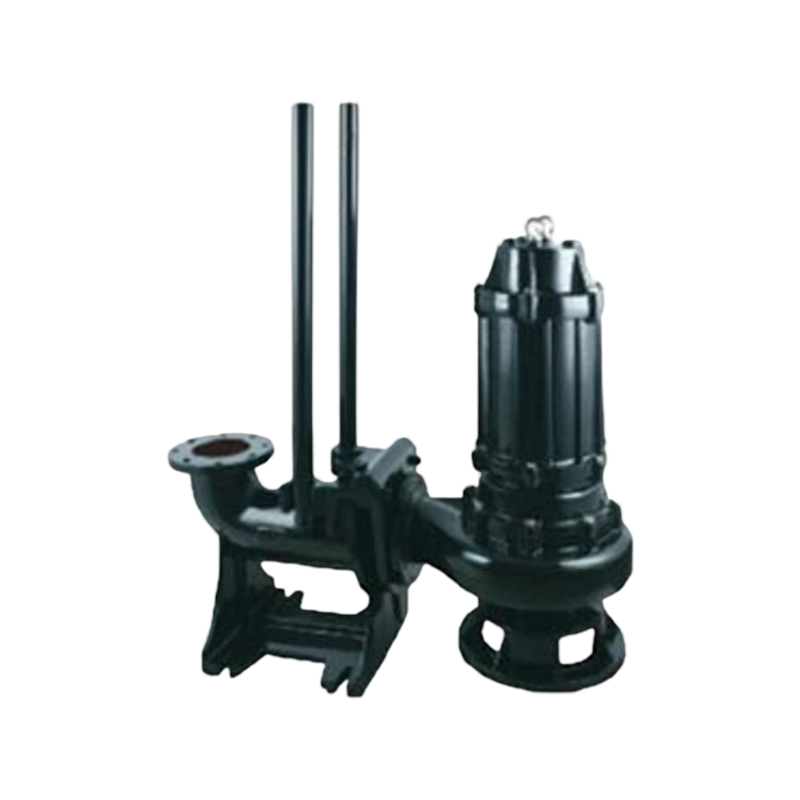

There are two kinds of installation,fixed automatic coupling installation and mobile installation.Can be used in different places.

The dual lead rail automatic coupling installation system brings great convenience to the installation and maintenance of the pump and people are not necessary to enter the sewage pit.

The pump is concise in structure, smallin volume,convenient in movement and installation.It's not necessary to build an extra pump room and the work simply

starts by ubmerged into water,which greatly reduces the engineering cost.

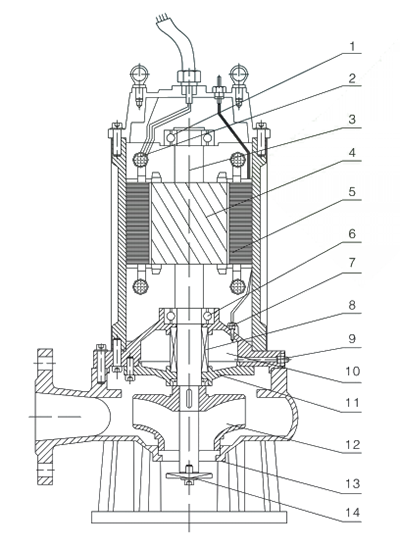

Arrangement drawing

	1. Up bearing	8. Mechanical seal
	2. Thermal protector	9. Nozzle
	3. Motor shaft	10. Oil room
	4. Rotor	11. Back cover board
	5. Stator	12. Impeller
	6. Down bearing	13. Pump body
	7. Oil-water detector

Structure explanation of WQ series pump

Pump and impeller

It's repeatedly modified, calculated and designed by adopting the CAD technologies with reference to the latest hydraulic models, so that the pump body and the impeller are excellently matched, the flow channel i the widest, the sewage discharge capacity is the perfect and the equilibrium test of the impeller is strictly performed, therefore the vibration is reduced to the minimum and maximally lengthens the service life of the bearing and the mechanical seals.

Electric motor

The specially designed and manufactured submerged electric motor and the stator winding of the motor are Grade Finsulation. The upper limit working temperature of the insulation materials is 130 degree. In addition, the winding is connected with over-temperature protection components and protection will be exercised the on the electric motor by the electric controlled cabinet.

Cooling of the electric motor

When the power of the motor is over 18. 5kw, the inside of the pump could be installed with cooling system for the motor. Part of the liquid pressed out of the impeller flows into the periphery of the stator chamber for cooling, which guarantees the normal cooling of the electric motor when the water pump works at the lowest water level.

Mechanical seal

The mechanical seal is made by the famous manufacturers, selecting the durable friction materials low in friction index;the rubber piece is the oil proof butyronitrile rubber and the metal piece is the stainless steel. Under normal conditions, the product could operate without failure for over 8, 000 hours.

Bearings

The upper bearing is the deep groove ball bearing, to support the radial action force;the lower bearing is to support the radial and axial action forces;the selection of angular contact ball bearing could fully satisfy the effect to remove the axial action force. The imported or domestic noted brands of the bearings are used and it's not subject to damage in the service period of the pump. Sealing of the cable and electric motors.

Airproof of cable and motor

The cable selects the heavy rubber coating soft cable resisting the sewage and its mechanical intensity, oil resistance, cable lead section and current carrying competence of the cable are selected on the basis of 40 degree(not on the regular basis of 25 degree) under long term service period. Therefore, under normal condition, the current carrying competence of the cable has sufficient margin and longer service life. The gland bush compresses the lock ring of the cable tofix it. The cable adopts the color sign and digital sign, to make it easier for identification and connection of the cables. There is no earthing sign within the connection cavity and in the electric control cabinet and the earthing fastener and cable are strictly grounded, being safe and reliable. In the assembly process, the O-shape circle, cable seal and mechanical seal of each pump shall be strictly tested to ensure the reliable sealofthe cavity of the electric motor, including the connection cavity.

Oil chamber

In adition to lubricating the mechanical seals, the oil in the chamber could also take off the heat of the bearing. The oil chamber is also attached with the security function for liquid penetration. The water leakage probe could be installed in the oil chamber as the water penetrating to the oil chamber from the side of pump reaches certain density, the leakage probe will give alert to stop the pump by electric control cabinet and inform the operator to change the oil or maintain the mechanical seal.

Explanation of the protective devices

The overheating protection component is the electric apparatus controlled by temperature and embedded in the stator winding of the electric motor. Under abnormal operation status, when the winding temperature value reaches the set value of the overheating protection component, itwill urn on the indication light and automaticallystop the motor. Then it willinform the operator to check and find out the reason of the overheating. When the winding temperature decreases, the motor will recover to starting-up status.

(1)Protection device

The pump with the power less than 7. 5kw could be set with motor winding overheating protection component and water leakage probe;the pump with the power over 11kw could be set with motor winding overheating protection component, floater switch, and water leakage probe;the protection device functions only connected with the special electric control cabinet for submersible sewage pump. Though the electric control cabinet for submersible sewage pump of our company is optional for supply, for the safe and reliable operation of your pump, particularly for the prevention of burning motor it's the wise choice for you to choose our protection device. When the user has their own electric control cabinet, in case of the electric technical problems, particularly in protection devices, please contact our electric control cabinet professional group of our company.

(2)Water leakage probe

The water leakage probe serves to inspect the leakage of water. The two poles at one end of the probe are mutually insulated and have certain space;the lead of the pole is connected to the electric control cabinet by the cable. When the water penetrating to the oil chamber from the side of pump reaches certain density, or the connection cavity of the electric motor is slightly fed with water, the two poles of the probe will be connected, give alert to stop the pump by electric control cabinet(indicating light on) and inform the operator to change the oil or maintain the mechanical seal. When the connection cavity is fed with water, the alert will stop the pump to prevent the short circuit and inform the personnel to immediately adopt the maintenance measures.

(3)Floater switch

The floater switch serves to inspect whether the mechanical seal at the side of the motor is valid, whether the motor cavity is fed with water. The switch is installed underneath the motor cavity and the hollow cavity besides the bearing. The hollow cavity has holes to be connected with the bearing as when the mechanical seal at the side of the motor is invalid, the oil or water in the oil chamber will enter the cavity through the bearing chamber. The floaters will float off, give alert to stop the pump by electric control cabinet (indicating light on)and inform the operator to inspect the pump.

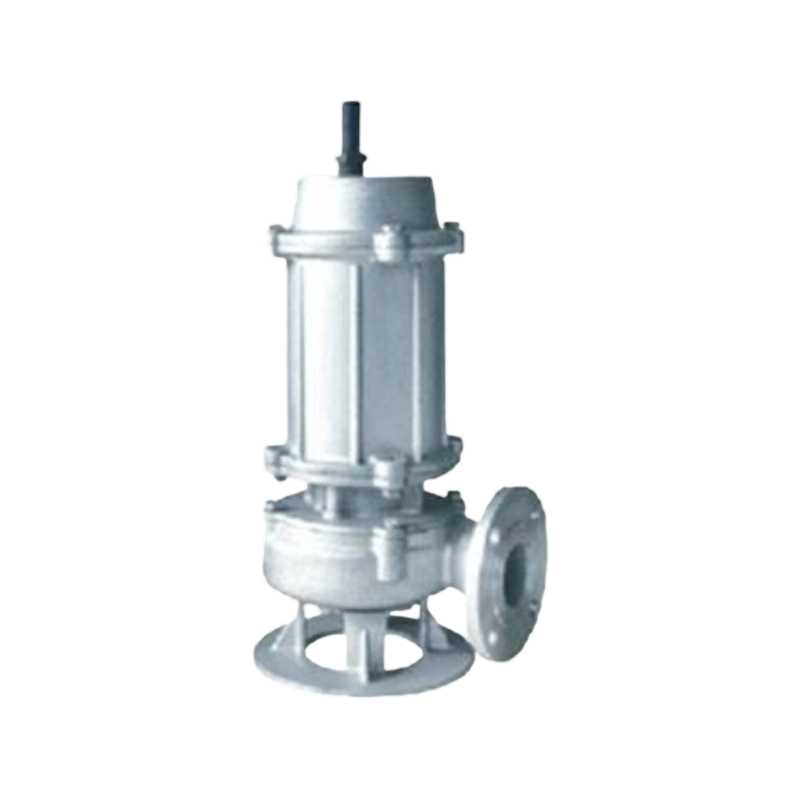

Features of the JYWQ series pump

Using the pump own water leakage pressure, mixes evenly in the pool to precipitate the suldge, achieves truly discharges the pool to precipitate thoroughly the special goal.

It's designed by utilizing the big flow channel and blockage-resistance hydraulic components, which greatly improves the passage competence of the waste as the fiber substance three times of thepump caliber and the solid granule with the diameter of 30%of the pump caliber.

It's designed reasonably and supported with reasonable motor. It has high efficiency and obvious energy saving effects.

The mechanical seal adopts the dual channel series seal and the materials are hard anti-erosive tungsten carbide, which is durable and hard wearing, ensuring the safe operation of the pump for over 26, 000 hours.

The grease probe is set in the fullysecure submersible sewage pump chamber. When the mechanical seal at the side of the pump is damaged, the water

will enter the chamber and the probe gives the signal and protects the pump.

The full automatic safe and protective control cabinet could be equipped according to the user's requirements to supervise the water leakage, creepage, overload and temperature excess of the pump and ensure the reliable and safe operation of the pump.

Under different circumstances, the motor could adopt the water jacketed external circulation cooling system, which ensures the safe operation of the electric pump under water-free(dry)status.

Using the lift motor is running, but must be in required range.

There are two kinds of installation, fixed automatic coupling installation and mobile installation. Can be used in different places

The dual lead rail automatic coupling installation system brings great convenience to the installation and maintenance of the pump and people are not necessary to enter the sewage pit small in volume, convenient in movement and installation. It's not necessary to build an extra pump room and the work simply starts by ubmerged into water, which greatly reduces the engineering cost)

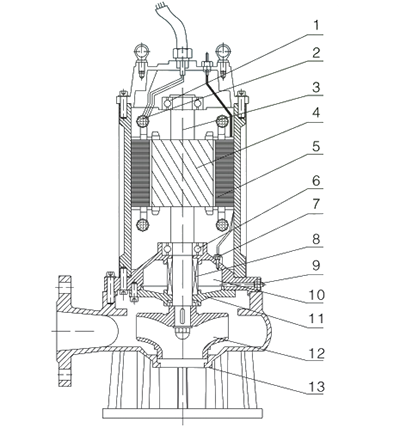

Arrangement drawing

	1. Up bearing	8. Mechanical seal
	2. Thermal protector	9. Nozzle
	3. Motor shaft	10. Oil room
	4. Rotor	11. Back cover board
	5. Stator	12. Impeller
	6. Down bearing	13. Pump body
	7. Oil-water detector	14. Homogenize device

JYWQ Structure explanation

Mixing water delivery device:

On the basis of the mixing screws and inducer, it combines the features of the both. It's competent of the mixing in wide range and could induce the mixed sewage to enter the impeller quickly and discharge it soon.

Impeller:

Carefully designed by using the professional hydraulic software PCAD, featured by correct parameters, steady performance, unique design, blockage resistance and winding resistance. The motor is Grade Finsulation and the heat resistance is 125 degree. The protection grade is IP68, exercising effective sealing functions on the armature.

Seal:

Combining the fluid dynamic seal and double mechanical end face seal. The back blade is set on the impeller to reduce the pressure of the sealing cavity, decrease the axial force and guarantee longer service life and more efficiency.

Oil chamber:

The oil chamber is filled with clean oil, which could lubricate, cool the seals and prevent the leakage of the liquids. The pump is coaxial with the motor and the axle stretch is designed as short as possible to reduce the flexibility of the turning axle, lower the vibration and decrease the operation noise to lengthen the service life of the mechanical seal and bearings.

System:

the original pump could be set with whole supervision device;under the cooperation of the fully automatic protection control cabinet, it operates the alert on the overload, short circuit, leakage and over-temperature of the water pump, which improves the safety and reliability of the products. The stator winding is embedded with thermistance as when the stator temp erature reaches 120 degree, the pump will be stopped automatically.

Beautiful appearance:

the shell of the motor is designed to be made of stainless steel, which is not only anti-erosive, durable, but attractive. The leakage protector is set at the bottom of the electric cavity. When the mechanical seal encounters the leakage, the liquids enter the working chamber of the protector. When the penetrating liquid accumulates to certain height, the protector will give the alarm and automatically stop the operation of the pump. Then the maintenance taff shall inspect immediately and change the mechanical seal. If the stoppage is not allowed, the alert could be removed manually for further work.

Product: The QW Series mobile, high-efficiency, non-clogging sewage pump is a dry-install, mobile sewage pump.

Advantages:

Flexible Deployment and High Maneuverability: The pump is mounted on a mobile base or cart, eliminating the need for complex fixed installations. It can be quickly deployed to different locations as needed to handle emergency drainage tasks.

Easy Maintenance: Due to its dry installation, the pump's main components (such as the motor) are above the water surface, making routine inspection, maintenance, and repairs extremely convenient without the need to lift the pump out of the water.

Strong Flow Capacity: Utilizing advanced impeller designs (such as swirl and single-channel), it easily handles sewage containing large solids and long fibers, and exhibits excellent anti-clogging performance.

Selling Points:

"Emergency Drainage Expert": Ideal for emergency situations such as urban flooding, pipe ruptures, and flooding on construction sites.

"Mobile Workstation": No permanent installation required, allowing one pump to serve multiple locations, providing a high return on investment.

Easy Maintenance: The motor does not require water, making maintenance as simple as a standard surface pump.

Applications:

Municipal emergency rescue: Rapid drainage of urban road and underground passageways.

Construction drainage: Removal of accumulated water during foundation pit and tunnel construction.

Temporary drainage: Factory cleaning, pumping water from stadium basements, and agricultural irrigation and drainage.

Model meaning

WQ,JYWQ series performance parameter table

Type	Caliber(φ)	Flowing rate(m³/h)	Head(m)	Rotation speed r/min	Power(KW)	Efficiency %	Weight(kg)
25-8-12-0.75	25	8	12	2900	0.75	38	42
25-6-30-1.5	25	6	30	2900	1.5	38	42
25-8-22-1.5	25	8	22	2900	1.5	38	42
32-8-22-1.1	32	8	22	2900	1.1	40	42
32-12-15-1.1	32	12	15	2900	1.1	45	42
40-15-15-1.5	40	15	15	2900	1.5	48	52
40-15-30-3	40	15	30	2900	3	48	55
50-20-7-0.75	50	20	7	2900	0.75	54	50
50-10-10-0.75	50	10	10	2900	0.75	56	50
50-15-15-1.5	50	15	15	2900	1.5	56	60
50-25-10-1.5	50	25	10	2900	1.5	55	55
50-20-15-1.5	50	20	15	2900	1.5	56	60
50-27-15-2.2	50	27	15	2900	2.2	56	60
50-15-25-2.2	50	15	25	2900	2.2	56	60
50-18-30-3	50	18	30	2900	3	58	70
50-24-20-4	50	24	20	2900	4	60	85
50-40-15-4	50	40	15	2900	4	60
50-25-32-5.5	50	25	32	2900	5.5	53	100
50-30-30-7.5	50	30	30	2900	7.5	56	110
50-20-40-7.5	50	20	40	2900	7.5	56	110
65-42-9-2.2	65	42	9	2900	2.2	56	60
65-25-15-2.2	65	25	15	2900	2.2	52	60
65-37-13-3	65	37	13	2900	3	55	70
65-25-30-4	65	25	30	2900	4	58	85
65-40-15-4	65	40	15	2900	4	58
65-40-30-7.5	65	40	30	2900	7.5	58	110
65-35-50-11	65	35	50	2900	11	56	200
65-35-60-15	65	35	60	2900	15	60	230
80-40-7-2.2	80	40	7	2900	2.2	63	75
80-30-8-2.2	80	30	8	2900	2.2	52	75
80-50-10-3	80	50	10	2900	3	45	85
80-43-13-3	80	43	13	2900	3	58	85
80-60-13-4	80	60	13	2900	4	50	90
80-40-15-4	80	40	15	2900	4	65	90
80-80-15-7.5	80	80	15	2900	7.5	57	135
80-65-25-7.5	80	65	25	2900	7.5	71	135
100-100-7-4	100	100	7	2900	4	72	130
100-80-10-4	100	80	10	2900	4	62	130
100-110-10-5.5	100	110	10	2900	5.5	65	155
100-65-15-5.5	100	65	15	2900	5.5	59	155
100-100-15-7.5	100	100	15	2900	7.5	67	170
100-85-20-7.5	100	85	20	2900	7.5	68	170
100-50-22-7.5	100	50	22	1450	7.5	63	170
100-100-25-11	100	100	25	1450	11	66	270
100-60-25-11	100	60	25	1450	11	59	270
100-50-35-11	100	50	35	1450	11	67	270
100-87-28-15	100	87	28	1450	15	68	300
100-100-30-15	100	100	30	1450	15	63	300
100-100-35-18.5	100	100	35	1450	18.5	65	380
100-60-50-15	100	60	50	2900	15	66	300
100-100-50-30	100	100	50	2900	30	67	450
150-140-7-5.5	150	140	7	2900	5.5	72	180
150-120-10-5.5	150	120	10	2900	5.5	70	180
150-210-7-7.5	150	210	7	2900	7.5	75	190
150-145-9-7.5	150	145	9	2900	7.5	63	190
150-110-15-7.5	150	110	15	2900	7.5	72	190
150-140-12-11	150	140	12	1450	11	72	260
150-200-10-15	150	200	10	1450	15	64	300
150-180-15-15	150	180	15	1450	15	65	300
150-140-15-15	150	140	15	1450	15	65	300
150-200-14-18.5	150	200	14	1450	18.5	68	400
150-180-20-18.5	150	180	20	1450	18.5	68	400
150-150-25-18.5	150	150	25	1450	18.5	68	400
150-200-22-22	150	200	22	1450	22	73	430
150-180-25-22	150	180	25	1450	22	76	430
150-130-30-22	150	130	30	1450	22	75	430
150-250-22-30	150	250	22	1450	30	73	500
150-180-30-30	150	180	30	1450	30	73	500
150-200-30-37	150	200	30	2900	37	70	600
150-150-35-37	150	150	35	2900	37	63	600
150-160-45-37	150	160	45	2900	37	65	650
200-360-6-11	200	360	6	1450	11	72	450
200-300-7-11	200	300	7	1450	11	73	450
200-400-7-15	200	400	7	1450	15	78	480
200-250-11-15	200	250	11	1450	15	74	480
200-300-10-18.5	200	300	10	1450	18.5	72	480
200-250-15-18.5	200	250	15	1450	18.5	72	480
200-400-10-22	200	400	10	1450	22	76	500
200-310-13-22	200	310	13	1450	22	62	500
200-300-15-22	200	300	15	1450	22	73	500
200-400-13-30	200	400	13	1450	30	73	650
200-360-15-30	200	360	15	1450	30	75	650
200-250-22-30	200	250	22	1450	30	71	680
200-350-25-37	200	350	25	1450	37	75	800
200-400-25-45	200	400	25	1450	45	75	920
200-380-28-45	200	380	28	1450	45	70	920
200-250-35-45	200	250	35	1450	45	69	920
200-400-30-55	200	400	30	1450	55	70	1000
200-250-40-55	200	250	40	1450	55	69	1000
200-350-40-75	200	350	40	1450	75	68	1050
200-500-30-75	200	500	30	1450	75	68	1050
250-600-9-30	250	600	9	980	30	74	850
250-500-10-30	250	500	10	980	30	71	850
250-700-10-37	250	700	10	1450	37	81	850
250-600-12-37	250	600	12	1450	37	78	850
250-600-15-45	250	600	15	1450	45	75	950
250-600-20-55	250	600	20	1450	55	73	1300
250-700-20-75	250	700	20	1450	75	78	1500
250-600-25-75	250	600	25	1450	75	73	1500
250-600-30-90	250	600	30	1450	90	72	1600
300-1000-6-30	300	1000	6	980	30	81	1380
300-800-12-45	300	800	12	980	45	76	1500
300-1200-8-45	300	1200	8	980	45	76	1500
300-500-15-45	300	500	15	980	45	70	1500
300-800-15-55	300	800	15	980	55	73	1550
300-600-20-55	300	600	20	980	55	75	1550
300-800-20-75	300	800	20	980	75	78	1600
300-950-20-90	300	950	20	980	90	80	1700
300-1000-25-110	300	1000	25	1450	110	82	2000
300-800-32-110	300	800	32	1450	110	76	2000
300-800-36-132	300	800	36	1450	132	76	2000
350-1200-8-45	350	1200	8	980	45	84	1350
350-1100-10-55	350	1100	10	980	55	84	1380
350-1300-12-75	350	1300	12	980	75	83	1450
350-1500-15-90	350	1500	15	980	90	82	2000
350-1200-18-90	350	1200	18	980	90	83	2000
350-1100-28-132	350	1100	28	980	132	83	2520
350-1000-36-160	350	1000	36	980	160	78	2880
400-1760-7.5-55	400	1760	7.5	980	55	82	2000
400-1300-10-55	400	1300	10	980	55	82	2000
400-2600-6-75	400	2600	6	980	75	78	1750
400-1500-10-75	400	1500	10	980	75	82	1750
400-2200-9-110	400	2200	9	980	110	80	2100
400-2000-15-132	400	2000	15	740	132	85	2520
400-1600-20-132	400	1600	20	740	132	82	2520
400-1700-22-160	400	1700	22	980	160	82	2880
400-1500-26-160	400	1500	26	980	160	82	2880
400-2000-22-200	400	2000	22	980	200	82	3150
400-1700-30-200	400	1700	30	980	200	83	3150
400-1800-32-250	400	1800	32	740	250	82	3250
400-2000-30-280	400	2000	30	740	280	83	3250
500-2500-10-110	500	2500	10	740	110	82	2100
500-2000-15-110	500	2000	15	740	110	83	2100
500-2800-10-132	500	2800	10	740	132	82	2250
500-3600-10-160	500	3600	10	740	160	83	2280
500-2600-15-160	500	2600	15	740	160	83	2280
500-2000-20-160	500	2000	20	740	160	82	2280
500-3000-15-200	500	3000	15	740	200	82	2280
500-2500-20-200	500	2500	20	740	200	78	2280
500-2800-18-220	500	2800	18	740	220	83	2350
500-2400-22-220	500	2400	22	740	220	84	2350
500-4000-15-250	500	4000	15	980	250	84	2650
500-2600-24-250	500	2600	24	980	250	82	2650

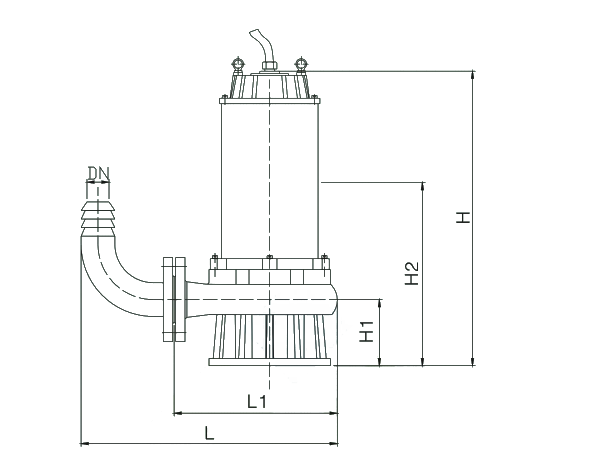

WQ,JYWQ mobile installation size graph

H2: For the lowest water level line

WQ,JYWQ mobile installation size table

Type	Flowing rate(m³/h)	Head(m)	Rotationspeed r/min	Power(KW)	L	L1	H	H1	H2	DN
25-8-12-0.75	8	12	2900	0.75	320	250	400	100	260	25
25-6-30-1.5	6	30	2900	1.5	320	250	425	100	260	25
25-8-22-1.5	8	22	2900	1.5	320	250	425	100	260	25
50-20-7-0.75	20	7	2900	0.75	380	270	420	115	260	25
50-10-10-0.75	10	10	2900	0.75	380	270	420	115	260	25
50-15-15-1.5	15	15	2900	1.5	380	270	440	115	290	50
50-25-10-1.5	25	10	2900	1.5	380	270	440	115	290	50
50-20-15-1.5	20	15	2900	1.5	380	270	440	115	290	50
50-27-15-2.2	27	15	2900	2.2	380	270	470	115	310	50
50-18-30-3	18	30	2900	3	380	270	480	115	320	50
50-24-20-4	24	20	2900	4	390	278	510	112	340	50
50-40-15-4	40	15	2900	4	390	278	510	112	340	50
50-25-32-5.5	25	32	2900	5.5	560	450	600	200	400	50
50-30-30-7.5	30	30	2900	7.5	560	450	600	200	400	50
50-20-40-7.5	20	40	2900	7.5	560	450	600	200	400	50
65-42-9-2.2	42	9	2900	2.2	415	278	470	110	310	65
65-25-15-2.2	25	15	2900	2.2	415	278	470	110	310	65

WQ, JYWQ mobile installation size graph

H2: For the lowest water level line

WQ, JYWQ mobile installation size table

Type	Flowing rate (m³/h)	Head(m)	Rotation speed r/min	Power(KW)	L	L1	H	H1	H2	DN
65-37-13-3	37	13	2900	3	415	278	490	112	320	65
65-40-15-4	40	15	2900	4	415	278	510	112	340	65
65-25-30-5.5	25	30	2900	5.5	460	360	614	360	240	65
65-40-30-7.5	40	30	2900	7.5	460	360	614	360	240	65
80-40-7-2.2	40	7	2900	2.2	453	283	490	123	320	80
80-40-25-5.5	40	25	2900	5.5	453	283	500	123	330	80
80-50-10-3	50	10	2900	3	453	283	500	123	330	80
80-43-13-3	43	13	2900	3	453	283	520	123	340	80
80-60-13-4	60	13	2900	4	453	283	520	123	340	80
80-40-15-4	40	15	2900	4	505	387	635	160	420	80
80-80-15-7.5	80	15	2900	7.5	505	387	635	160	420	80
80-65-25-0.75	65	25	2900	7.5	505	387	635	160	420	80
100-100-7-4	100	7	2900	4	476	293	540	138	360	100
100-80-10-4	80	10	2900	4	476	293	540	138	360	100
100-110-10-5.5	110	10	1450	5.5	595	450	702	220	460	100
100-65-15-5.5	65	15	1450	5.5	595	450	702	220	460	100
100-100-15-7.5	100	15	1450	7.5	595	450	702	220	460	100

Model	Caliber(mm)	Traffic(m³/h)	Head(m)	Power(kW)	Speed(r/min)	Efficiency(%)
25-8-22-1.1	25	8	22	1.1	2825	38.5
32-12-15-1.1	32	12	15	1.1	2825	40
40-15-15-1.5	40	15	15	1.5	2840	45.1
40-15-30-2.2	40	15	30	2.2	2840	48
50-20-70-0.75	50	20	7	0.75	1390	54
50-10-10-0.75	50	10	10	0.75	1390	56
50-20-15-1.5	50	20	15	1.5	2840	55
50-15-25-2.2	50	15	25	2.2	2840	56
50-18-30-3	50	18	30	3	2880	58
50-25-32-5.5	50	25	32	5.5	2900	53
50-20-40-7.5	50	20	40	7.5	2900	55
65-25-15-2.2	65	25	15	2.2	2840	52
65-37-13-3	65	37	13	3	2880	55
65-25-30-4	65	25	30	4	2890	58
65-30-40-7.5	65	30	40	7.5	2900	56
65-35-50-11	65	35	50	11	2930	60
65-35-60-15	65	35	60	15	2930	63
80-40-7-2.2	80	40	7	2.2	1420	52
80-43-13-3	80	43	13	3	2880	50
80-40-15-4	80	40	15	4	2890	57
80-65-25-7.5	80	65	25	7.5	2900	56
100-80-10-4	100	80	10	4	1440	62
100-110-10-5.5	100	110	10	5.5	1440	66
100-100-15-7.5	100	100	15	7.5	1440	67
100-85-20-7.5	100	85	20	7.5	1440	68
100-100-25-11	100	100	25	11	1460	65
100-100-30-15	100	100	30	15	1460	66
100-100-35-18.5	100	100	35	18.5	1470	65
125-130-15-11	125	130	15	11	1460	62
125-130-20-15	125	130	20	15	1460	63
150-145-9-7.5	150	145	9	7.5	1440	63
150-180-15-15	150	180	15	15	1460	65
150-180-20-18.5	150	180	20	18.5	1470	75
150-180-25-22	150	180	25	22	1470	76
150-130-30-22	150	130	30	22	1470	75
150-180-30-30	150	180	30	30	1470	73
150-200-30-37	150	200	30	37	1480	70
150-160-45-37	150	160	45	37	1450	65
200-300-7-11	200	300	7	11	970	73
200-250-11-15	200	250	11	15	970	74
200-400-10-22	200	400	10	22	1470	76
200-400-13-30	200	400	13	30	1470	73
200-250-15-18.5	200	250	15	18.5	1470	72
200-300-15-22	200	300	15	22	1470	73
200-250-22-30	200	250	22	30	1470	71
200-350-25-37	200	350	25	37	1480	75
200-380-28-45	200	380	28	45	1450	70
200-400-30-55	200	400	30	55	1480	70
200-350-40-75	200	350	40	75	1450	68
250-600-9-30	250	600	9	30	980	74
250-600-12-37	250	600	12	37	1480	78
250-600-15-45	250	600	15	45	1480	75
250-600-20-55	250	600	20	55	1480	73
250-600-25-75	250	600	25	75	1480	73
300-800-12-45	300	800	12	45	980	76
300-500-15-45	300	500	15	45	980	70
300-800-15-55	300	800	15	55	980	73
300-600-20-55	300	600	20	55	980	75
300-800-20-75	300	800	20	75	980	78
300-950-20-90	300	950	20	90	980	80
300-1000-25-110	300	1000	25	110	980	82
300-800-32-110	300	800	32	110	1450	76
350-1100-10-55	350	1100	10	55	980	84.5
350-1500-15-90	350	1500	15	90	980	82.5
350-1200-18-90	350	1200	18	90	980	83.1
350-1100-28-132	350	1100	28	132	740	83.2
350-1000-36-160	350	1000	36	160	740	78.5
400-1500-10-75	400	1500	10	75	980	821
400-2200-9-110	400	2200	9	110	980	80
400-2000-15-132	400	2000	15	132	740	85.5
400-1700-22-160	400	1700	22	160	740	82.1
400-1500-26-160	400	1500	26	160	740	83.5
400-1700-30-200	400	1700	30	200	740	83.5
400-1800-32-250	400	1800	32	250	740	82.1
400-1760-7.5-55	400	1760	7.5	55	580	82.3
500-2500-10-110	500	2500	10	110	740	82
500-2600-15-160	500	2600	15	160	740	83
500-3000-15-200	500	3000	15	200	740	82
500-2400-22-220	500	2400	22	220	740	84
500-4000-15-250	500	4000	15	250	980	84
500-2600-24-250	500	2600	24	250	740	82
600-3500-12-185	600	3500	12	185	740	85
