Self-Priming Pumps

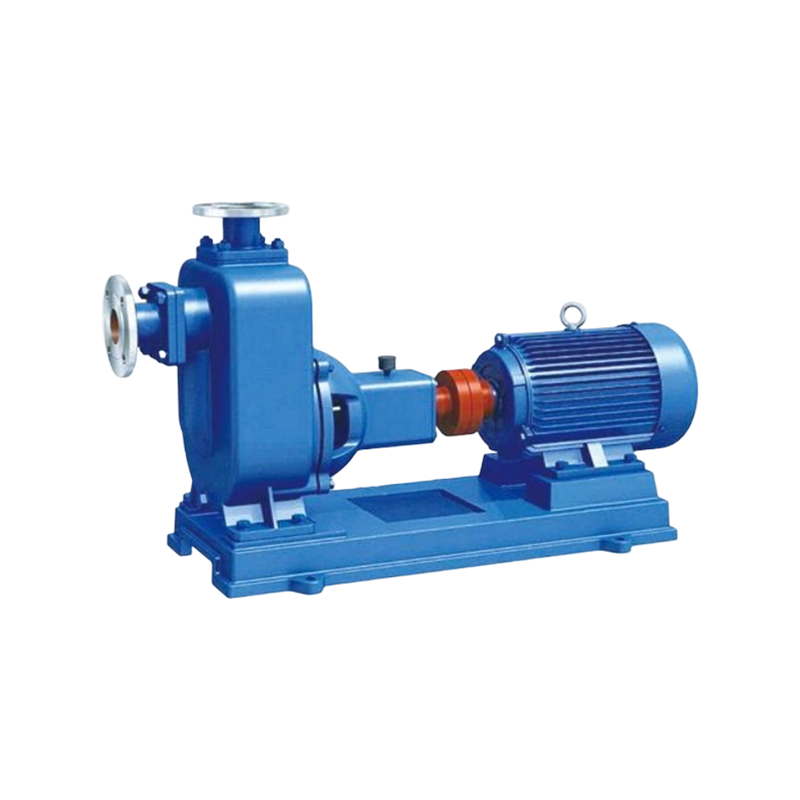

ZW Horizontal Direct-Connected End-Suction Self-Priming Pump

Product Overview
This pump combines self-priming and non clogging sewage discharge. It can be used without the need for a bottom valve or water injection like a typical water self-priming pump, and can also suck up pollutants containing large solid particles, long fibers, sediment, waste minerals, impurities, feces treatment, and all engineering wastewater, completely reducing the labor intensity of workers. It is also easy to use, move, install, requires minimal maintenance, and has stable performance.
Working conditions
1. Environmental temperature ≤ 45 ℃, medium temperature ≤ 60 ℃.
2. The pH value of the medium is 6-9 for cast iron pumps and 1-14 for stainless steel pumps.
3. The maximum diameter of the particles is 60% of the pump diameter, and the fiber length is 5 times the diameter.
4. The total weight of impurities in the medium shall not exceed 15% of the total weight of the medium, and the specific gravity of the medium shall not exceed 1240kg/m ³.

+ Contact us

NEXT: ZX Self-Priming Pump (Direct Connection)

Product Description

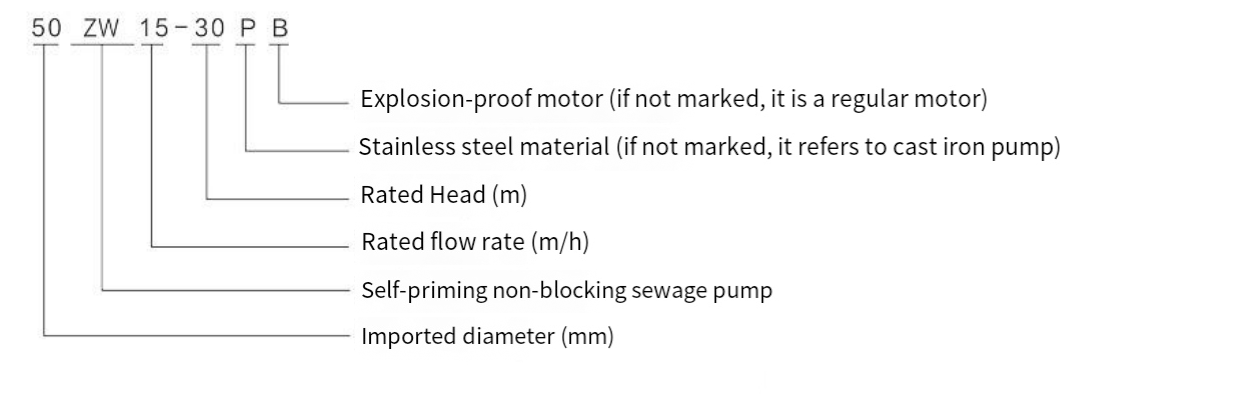

Model significance

Model	Flow rate (m ³/h)	Head (m)	Power (kW)	Speed (r/min)	Efficiency (%)	Cavitation allowance (m)
ZW25-8-15	8	15	2.2	2900	45	2.0
ZW32-5-20	5	20	2.2	2900	45	2.5
ZW32-10-20	10	20	2.2	2900	45	2.5
ZW32-9-30	9	30	3	2900	48	2.5
ZW40-10-20	10	20	2.2	2900	45	2.5
ZW40-20-15	20	15	2.2	2900	45	2.5
ZW40-15-30	15	30	3	2900	48	2.5
ZW50-10-20	10	20	2.2	290	45	2.5
ZW50-20-12	20	12	2.2	2900	45	2.5
ZW50-15-30	15	30	3	2900	48	2.5
ZW50-20-35	20	35	5.5	2900	48	2.5
ZW65-30-18	30	18	4	1450	45	2.5
ZW65-25-30	25	30	5.5	2900	50	3.0
ZW65-25-40	25	40	7.5	2900	50	3.0
ZW65-40-25	40	25	7.5	2900	50	3.0
ZW65-65-25	65	25	7.5	2900	52	3.0
ZW80-40-16	40	16	4	1450	50	3.0
ZW80-40-25	40	25	7.5	2900	50	3.0
ZW80-25-40	25	40	7.5	2900	50	3.0
ZW80-65-25	65	25	7.5	2900	52	3.0
ZW80-80-35	80	35	15	2900	45	3.0
ZW80-40-50	40	50	18.5	2900	50	3.0
ZW80-50-60	50	60	22	2900	55	3.0
ZW100-100-15	100	15	7.5	1450	50	4.0
ZW100-80-20	80	20	7.5	1450	53	4.0
ZW100-100-20	100	20	11	1450	53	4.0
ZW100-100-30	100	30	22	2900	53	4.0
ZW100-80-45	80	45	30	2900	55	4.0
ZW100-80-60	80	60	37	2900	53	4.0
ZW100-80-80	80	80	45	2900	50	4.0
ZW125-120-20	120	20	15	1450	55	4.5
ZW150-180-14	180	14	15	1450	60	5.0
ZW150-180-20	180	20	22	1450	60	5.0
ZW150-180-30	180	30	37	1450	65	5.0
ZW150-180-38	180	38	55	1450	45	5.0
ZW200-280-14	280	14	22	1450	65	5.0
ZW200-280-20	280	20	37	1450	62	5.0
ZW200-300-25	300	25	45	1450	59	5.0
ZW200-280-28	280	28	55	1450	55	4.8
ZW250-420-20	420	20	55	1450	61	6.0
ZW300-800-14	800	14	55	1450	65	6.0
