Double-Suction Pumps

S and SH Series Single-Stage Double-Suction Centrifugal Pumps

Product Overview
S. Sh type single-stage double suction pump shell open centrifugal pump, used for pumping clean water or other liquids with physical and chemical properties similar to water. The temperature of the transported liquid shall not exceed 80 ℃. Suitable for factories, mines, urban water supply, power stations, farmland irrigation and drainage, and various water conservancy projects.

+ Contact us

NEXT: SOW Series Single-Stage Double-Suction Pump

Product Description

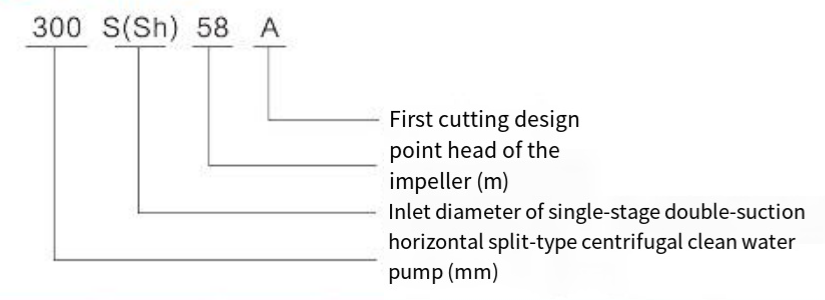

Model significance

Model	Flow rate(m³/h)	Head(m)	Speed(r/min)	Power(kW)		Efficiency(%)	NPSH r(m)
Model	Flow rate(m³/h)	Head(m)	Speed(r/min)	Shaft power	Motor power	Efficiency(%)	NPSH r(m)
100S90	80	90	2950	30.1	37	65	2.5
100S90A	72	75	2950	23	30	64	2.5
150S100	160	100	2950	59.8	75	73	3.5
150S78	160	78	2950	45	55	75.5	3.5
150S78A	144	62	2950	33.8	45	72	3.5
150S50	160	50	2950	27.3	37	80	3.9
150S50A	144	40	2950	20.9	30	75	3.9
150S50B	133	36	2950	18.6	22	70	3.9
200S95	280	95	2950	91.7	110	79.2	5.3
200S95A	270	75	2950	73.5	90	75	5.3
200S63	280	63	2950	58.3	75	82.7	5.8
200S63A	270	46	2950	45.1	55	75	5.8
200S42	280	42	2950	38.1	45	84.2	6
200S42A	270	36	2950	33.1	37	80	6
250S65	485	65	1450	109	132	78.6	3
250S65A	468	54	1450	89.4	110	77	3
250S39	485	39	1450	61.5	75	83.6	3.2
250S39A	468	30.5	1450	49.3	55	79	3.2
250S24	485	24	1450	36.9	45	85.8	3.5
250S24A	414	20.3	1450	27.6	37	83	3.5
250S14	485	14	1450	21.5	30	85.8	3.8
250S14A	432	11	1450	15.8	18.5	82	3.8
300S110	790	110	1450	295.7	440	80	4
300S90	790	90	1450	242.8	315	79.6	4
300S90A	756	78	1450	217	280	74	4
300S90B	720	67	1450	180	220	73	4
300S58	790	58	1450	149.9	180	84.2	4.4
300S58A	720	49	1450	118.6	160	81	4.4
300S58B	684	43	1450	100	132	80	4.4
300S32	790	32	1450	79.2	110	86.8	4.6
300S32A	720	26	1450	60.7	75	84	4.6
300S19	790	19	1450	47	55	86.8	5.2
300S19A	720	16	1450	39.2	45	80	5.2
300S12	790	12	1450	30.4	37	84.8	5.5
300S12A	684	10	1450	23.9	30	78	5.5
350S125	1260	125	1450	534	710	80.5	5.4
350S125A	1181	112	1450	462	630	78	5.4
350S125B	1098	96	1450	373	500	77	5.4
350S75	1260	75	1450	303	355	85.2	5.8
350S75A	1170	65	1450	247	280	84	5.8
350S75B	1080	55	1450	197	220	82	5.8
350S44	1260	44	1450	173	220	87.5	6.3
350S44A	1116	36	1450	131	160	84	6.3
350S26	1260	26	1450	102	132	87.5	6.7
350S26A	1116	21.5	1450	78.8	90	83	6.7
350S16	1260	16	1450	64.5	75	85.3	7.1
350S16A	1044	13.4	1450	48.8	55	48	7.1
500S98	2020	98	970	678	800	79.5	4
500S98A	1872	83	970	540	630	78.5	4
500S98B	1746	74	970	452	560	78	4
500S59	2020	59	970	391	450	83	4.5
500S59A	1872	49	970	333	400	75	4.5
500S59B	1746	40	970	257	315	74	4.5
500S35	2020	35	970	219	280	88	4.8
500S35A	1746	27	970	151	220	85	4.8
500S22	2020	22	970	144.1	185	84	5.2
500S22A	1746	17	970	101	132	80	5.2
500S13	2020	13	970	86.2	110	83	5.7
600S75	3170	75	970	727	800	89	7.5
600S75A	2880	65	970	580	630	88	7.5
600S47	3170	47	970	465	560	88	7.5
600S32	3170	32	970	310	400	89	7.5
600S32A	2880	27	970	238	280	89	7.5
600S22	3170	22	970	223	280	85	7.5
600S22A	2880	18.2	970	168.5	200	84.5	7.5
