JSW Horizontal Single-Stage Single-Suction Circulation Pump (Direct Connection)

Product Overview
The JSW series single-stage single suction pipeline centrifugal pump is selected by our company's technical personnel in collaboration with domestic water pump experts using excellent hydraulic models from China. It adopts the performance parameters of the IS type centrifugal pump and is ingeniously designed on the basis of a general vertical pump. At the same time, suitable hot water, high temperature, corrosive chemical pumps, and oil pumps are derived from the JSW type according to different operating temperatures, media, etc. This series of products has the advantages of high efficiency, energy saving, low noise, and reliable performance

Product Features
Smooth operation: The absolute concentricity of the pump shaft and excellent dynamic and static balance of the impeller ensure smooth operation without any vibration.
Drip proof: Hard alloy seals made of different materials ensure that there is no leakage during the transportation of different media.
Low noise: The water pump supported by two low-noise bearings runs smoothly, with only a faint noise from the motor and no noise from the foundation.
Low failure rate: The structure is simple and reasonable, and the key parts are matched with international first-class quality, greatly improving the fault free working time of the whole machine
Easy maintenance: Replacing seals and bearings is simple and convenient.
More land saving: The exit can be arranged in three directions: left, right, and up, which is convenient for pipeline layout and installation, saving space.

Main Purpose
1. JSW horizontal clear water pump is used for conveying clear water and other liquids with physical and chemical properties similar to clear water. It is suitable for industrial and urban water supply and drainage, high-rise building pressurized water supply, garden sprinkler irrigation, fire protection pressurization, long-distance transportation, HVAC refrigeration cycle, bathroom and other cold and warm water circulation pressurization and equipment matching. The operating temperature is ≤ 80 ℃.
2. JSWR horizontal hot water pump is widely used in metallurgy, chemical industry, textile, papermaking, hotels, restaurants and other boiler hot water pressurized circulation transportation and urban heating systems. The operating temperature of JSWR type is ≤ 120 ℃.
3. JSWH horizontal chemical pump is used for conveying liquids that do not contain solid particles, are corrosive, and have a viscosity similar to water. It is suitable for industries such as petroleum, chemical, metallurgical, power, papermaking, food and pharmaceuticals, and synthetic fibers. The operating temperature ranges from -20 ℃ to+120 ℃.
4. JSWB horizontal pipeline oil pump is used to transport oil products such as gasoline, kerosene, diesel, or flammable and explosive liquids. The temperature of the transported medium is -20 ℃~+120 ℃.
5. JSWD horizontal low-speed pump is suitable for situations where low environmental noise is required, and the operating temperature is T ≤ 120 ℃.

+ Contact us

PREV: TDL Vertical Single-Stage Single-Suction Circulating Pump (Disassembly Type/Coupling)
NEXT: PBG Vertical Single-Stage Single-Suction Shielded Pump (Cast Iron Motor Housing)

Product Description

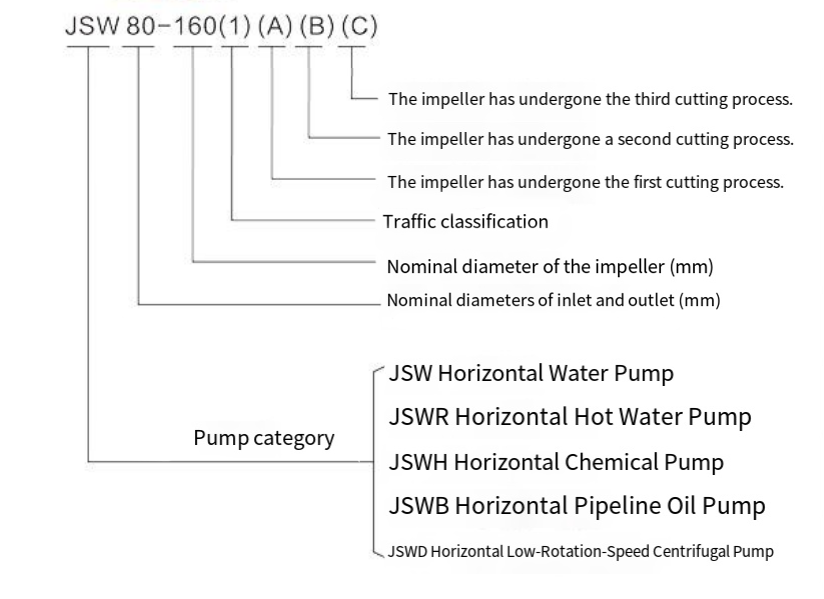

Model meaning

Model	Traffic Q		Head (m)	Efficiency (%)	Speed(r/min)	Motor power(kW)	Required cavitation allowance(NPSH)r	Weight(kg)
Model	(m³/h)	(L/s)	Head (m)	Efficiency (%)	Speed(r/min)	Motor power(kW)	Required cavitation allowance(NPSH)r	Weight(kg)
15-80	1.1 1.5 2.0	0.3 0.42 0.55	8.5 8 7	26 34 34	2800	0.18	2.3	17
20-110	1.8 2.5 3.3	0.5 0.69 0.91	16 15 13.5	25 34 35	2800	0.37	2.3	25
20-160	1.8 2.5 3.3	0.5 0.69 0.91	33 32 30	19 25 23	2900	0.75	2.3	29
25-110	2.8 4 2.2	0.78 1.11 1.44	16 15 13.5	34 42 41	2900	0.55	2.3	26
25-125	2.8 4 5.2	0.78 1.11 1.44	20.6 20 18	28 36 35	2900	0.75	2.3	28
25-125A	2.5 3.6 4.6	0.69 1.0 1.28	17 16 14.4	35	2900	0.55	2.3	27
25-160	2.8 4 5.2	0.78 1.11 1.44	33 32 30	24 32 33	2900	1.5	2.3	39
25-160A	2.6 3.7 4.9	0.12 1.03 1.36	29 28 26	31	2900	1.1	2.3	34
32-100	4.5	12.5	12.5	44	2900	0.55	2.0	27
32-100(1)	4.4 6.3 8.3	1.22 1.75 2.32	13.2 12.5 11.3	48 54 53	2900	0.75	2.0	32
32-125	3.5 5 6.5	0.97 1.39 1.8	22 20 18	40 44 42	2900	0.75	2.3	28
32-125A	3.1 4.5 5.8	0.86 1.25 1.61	17.6 16 14.4	43	2900	0.55	2.3	28
32-160	6.5	5	32	44	2900	1.5	2.3	39
32-160A	4	1.1	25	34	2900	1.1	2.0	38
32-160(I)	4.4 6.3 8.3	1.22 1.75 2.32	33.2 32 30.2	34 40 42	2900	2.2	2.0	47
32-200	4.5	12.5	50	32	2900	3	2.0	55
32-200(I)	4.4 6.3 8.3	1.22 1.75 2.32	50.5 50 48	26 33 35	2900	4	2.0	43
32-200A	2.8 4 5.2	0.78 1.11 1.44	44.6 44 42.7	34 40 42	2900	2.2	2.0	74
40-100	4.4 6.3 8.3	1.22 1.75 2.31	13.2 12.5 11.3	48 54 53	2900	0.55	2.3	32
40-100A	3.9 5.6 7.4	1.08 1.56 2.08	10.6 10 9	52	2900	0.37	2.3	32
40-125	4.4 6.3 8.3	1.22 1.75 2.31	21 20 18	41 46 43	2900	1.1	2.3	34
40-125A	3.9 5.6 7.4	1.08 1.56 2.06	17.6 16 14.4	40 45 41	2900	0.75	2.3	33
40-160	4.4 6.3 8.3	1.22 1.75 2.31	33 32 30	35 40 40	2900	2.2	2.3	47
40-160A	4.1 5.9 7.8	1.14 1.64 2.17	29 28 26.3	34 39 39	2900	1.5	2.3	43
40-160B	3.8 5.5 7.2	1.06 1.53 2.0	25.5 24 22.5	34 38 37	2900	1.1	2.3	38
40-200	4.4 6.3 8.3	1.22 1.75 2.31	51 50 48	26 33 32	2900	4	2.3	74
40-200A	4.1 5.9 7.8	1.14 1.64 2.17	45 44 42	26 31 30	2900	3	2.3	62
40-200B	3.7 5.3 7.0	1.03 1.47 1.94	38 36 34.5	29	2900	2.2	2.3	52
40-250	4.4 6.3 8.3	1.22 1.75 2.31	82 80 74	24 28 28	2900	7.5	2.3	105
40-250A	4.1 5.9 7.8	1.14 1.64 2.17	72 70 65	24 28 27	2900	5.5	2.3	98
40-250B	3.8 5.5 7.0	1.06 1.53 1.94	61.5 60 56	23 27 26	2900	4	2.3	77
40-100(I)	8.8 12.5 16.3	2.44 3.47 4.53	13.2 12.5 11.3	55 62 60	2900	1.1	2.3	34
40-100(I)A	8 11 14.5	2.22 3.05 4.03	10.6 10 9	60	2900	0.75	2.3	32
40-125(I)	8.8 12.5 16.3	2.44 3.47 4.53	21.2 20 17.8	49 58 57	2900	1.5	2.3	38
40-125(I)A	8 11 14.5	2.22 3.05 4.03	17 16 14	57	2900	1.1	2.3	33
40-160(I)	8.8 12.5 16.3	2.44 3.47 4.53	33 32 30	45 52 51	2900	3	2.3	56
40-160(I)A	8.2 11.7 15.2	2.28 3.25 4.22	29 28 26	44 51 50	2900	2.2	2.3	47
40-160(I)B	7.3 10.4 13.5	2.38 2.89 3.75	23 22 20.5	50	2900	1.5	2.3	43
40-200(I)	8.8 12.5 16.3	2.44 3.47 4.53	51.2 50 48	38 46 46	2900	5.5	2.3	85
40-200(I)A	8.3 11.7 15.3	2.31 3.25 4.25	45.0 44 42	37 45 45	2900	4	2.3	75
40-200(I)B	7.5 10.6 13.8	2.08 2.94 3.83	37 36 34	44	2900	3	2.3	63
40-250(I)	8.8 12.5 16.3	2.44 3.47 4.53	81.2 80 77.5	31 38 40	2900	11	2.3	145
40-250(I)A	8.2 11.6 15.2	2.28 3.22 4.22	71.0 70 68	38	2900	7.5	2.3	95
40-250(I)B	7.6 10.8 14	2.11 3.0 3.89	61.4 60 58	37	2900	5.5	2.3	94
40-250(I)C	7.1 10.0 13.1	1.97 2.78 3.64	53.2 52 50.4	36	2900	5.5	2.3	88
50-100	8.8 12.5 16.3	2.44 3.47 4.53	13.6 12.5 11.3	55 62 60	2900	1.1	2.3	36
50-100A	8 11 14.5	2.22 3.05 4.03	11 10 9	60	2900	0.75	2.3	35
50-125	8.8 12.5 16.3	2.44 3.47 4.53	21.5 20 17.8	49 58 57	2900	1.5	2.3	43
50-125A	8 11 14.5	2.22 3.05 4.03	17 16 14	57	2900	1.1	2.3	38
50-160	8.8 12.5 16.3	2.44 3.47 4.53	33 32 30	45 52 51	2900	3	2.3	59
50-160A	8.2 11.7 15.2	2.28 3.25 4.22	29 28 26	44 51 50	2900	2.2	2.3	51
50-160B	7.3 10.4 13.5	2.38 2.89 3.75	23 22 20.5	50	2900	1.5	2.3	47
50-200	8.8 12.5 16.3	2.44 3.47 4.53	52 50 48	38 46 46	2900	5.5	2.3	101
50-200A	8.3 11.7 15.3	2.31 3.25 4.25	45.8 44 42	37 45 45	2900	4	2.3	80
50-200B	7.5 10.6 13.8	2.08 2.94 3.83	37 36 34	44	2900	3	2.3	68
50-250	8.8 12.5 16.3	2.44 3.47 4.53	82 80 77.5	29 38 40	2900	11	2.3	160
50-250A	8.2 11.6 15.2	2.28 3.22 4.22	71.5 70 68	38	2900	7.5	2.3	115
50-250B	7.6 10.8 14	2.11 3.0 3.89	61.4 60 58	37	2900	5.5	2.3	114
50-250C	7.1 10.0 13.1	1.97 2.78 3.64	53.2 52 50.4	36	2900	5.5	2.3	108
50-100(I)	17.5 25 32.5	4.86 6.94 9.03	13.7 12.5 10.5	67 69 69	2900	1.5	2.5	41
50-100(I)A	15.5 22.3 29	4.3 6.19 8.1	11 10 8.4	65 67 68	2900	1.1	2.5	36
50-125(I)	17.5 25 32.5	4.86 6.94 9.03	21.5 20 18	60 68 67	2900	3	2.5	56
50-125(I)A	15.6 22.3 29	4.33 6.19 8.1	17 16 13.6	58 66 65	2900	2.2	2.5	48
50-160(I)	17.5 25 32.5	4.68 6.94 9.03	34.4 32 27.5	54 63 60	2900	4	2.5	72
50-160(I)A	16.4 23.4 30.4	4.56 6.5 8.44	30 28 24	54 62 59	2900	3	2.5	71
50-160(I)B	15.0 21.6 28	4.17 6.0 7.78	26 24 20.6	58	2900	2.2	2.5	59
50-200(I)	17.5 25 32.5	4.86 6.94 9.03	52.7 50 45.5	49 58 59	2900	7.5	2.5	108
50-200(I)A	16.4 23.5 30.5	4.56 6.53 8.47	46.4 44 40	48 57 58	2900	5.5	2.5	107
50-200(I)B	15.2 21.8 28.3	4.22 6.06 7.86	40 38 34.5	55	2900	4	2.5	100
50-250(I)	17.5 25 32.5	4.86 6.94 9.03	82 80 76.5	39 50 52	2900	15	2.5	175
50-250(I)A	16.4 23.4 30.5	4.56 6.5 8.47	71.5 70 67	39 50 52	2900	11	2.5	165
50-250(I)B	15 21.6 28	4.17 6.0 7.78	61 60 57.4	38 49 54	2900	7.5	2.5	165
50-315(I)	17.5 25 32.5	4.86 6.94 9.03	128 125 122	30 40 44	2900	30	2.5	310
50-315(I)A	16.6 23.7 31	4.61 6.58 8.6	115 113 110	30 40 44	2900	22	2.5	245
50-315(I)B	15.7 22.5 29.2	4.36 6.25 8.0	103 101 98	39	2900	18.5	2.5	215
50-315(I)C	14.4 20.6 26.8	4.0 5.72 7.44	86 85 83	38	2900	15	2.5	195
65-100	17.5 25 32.5	4.86 6.94 9.03	13.7 12.5 10.5	67 69 69	2900	1.5	2.5	46
65-100A	15.6 22.3 29	4.3 6.19 8.1	11 10 8.4	65 67 68	2900	1.1	2.5	41
65-125	17.5 25 32.5	4.86 6.94 9.03	21.5 20 18	60 68 67	2900	3	2.5	58
65-125A	15.6 22.3 29	4.33 6.19 8.1	17 16 14.4	58 66 65	2900	2.2	2.5	49
65-160	17.5 25 32.5	4.86 6.94 9.03	34.4 32 27.5	54 63 60	2900	4	2.5	75
65-160A	16.4 23.4 30.4	4.56 6.5 8.44	30 28 24	54 62 59	2900	3	2.5	75
65-160B	15.0 21.6 28	4.17 6.0 7.78	26 24 20.6	58	2900	2.2	2.5	63
65-200	17.5 25 32.5	4.86 6.94 9.03	52.7 50 45 5	49 58 59	2900	7.5	2.5	107
65-200A	16.4 23.5 30.5	4.56 6.53 8.47	46.4 44 40	48 57 58	2900	5.5	2.5	107
65-200B	15.2 21.8 28.3	4.22 6.06 7.86	40 38 34.5	55	2900	4	2.5	100
65-250	17.5 25 32.5	4.86 6.94 9.03	82 80 76.5	39 50 52	2900	15	2.5	180
65-250A	16.4 23.4 30.5	4.56 6.5 8.47	71.5 70 67	39 50 52	2900	11	2.5	170
65-250B	15 21.6 28	4.17 6.0 7.78	61 60 57.4	38 49 54	2900	7.5	2.5	170
65-315	17.5 25 32.5	4.86 6.94 9.03	127 125 122	32 40 44	2900	30	2.5	320
65-315A	16.6 23.7 31	4.61 6.58 8.6	115 113 110	32 40 44	2900	22	2.5	255
65-315B	15.7 22.5 29.2	4.36 6.25 8.0	103 101 98	39	2900	18.5	2.5	225
65-315C	14.4 20.6 26.8	4.0 5.72 7.44	86 85 83	38	2900	15	2.5	205
65-100(I)	35 50 65	9.72 13.9 18.1	13.8 12.5 10	67 73 70	2900	3	3.0	63
65-100(I)A	31.3 44.7 58	8.7 12.4 16.1	11 10 8	66 72 69	2900	2.2	3.0	53
65-125(I)	35 50 65	9.72 13.9 18.1	22 20 17	67 72.5 70	2900	5.5	3.0	99
65-125(I)A	31.3 45 58	8.7 12.5 16.1	17.5 16 13.6	66 71 69	2900	4	3.0	78
65-160(I)	35 50 65	9.72 13.9 18.1	35 32 28	63 71 70	2900	7.5	3.0	103
65-160(I)A	32.7 46.7 61	9.1 13.0 16.9	30.6 28 24	62 70 69	2900	5.5	3.0	103
65-160(I)B	30.3 43.3 56.3	8.4 12.0 15.6	26 24 21	69	2900	4	3.0	97
65-200(I)	35 50 65	9.72 13.9 18.1	53.5 50 46	55 67 68	2900	15	3.0	176
65-200(I)A	32.8 47 61	9.1 13.1 16.9	47 44 40	54 66 67	2900	11	3.0	166
65-200(I)B	30.5 43.5 56.6	8.5 12.1 15.7	40.6 38 33.4	65	2900	7.5	3.0	114
65-250(I)	35 50 65	9.72 13.9 18.1	83 80 72	52 59 60	2900	22	3.0	235
65-250(I)A	32.5 46.7 61	9.0 13.0 16.9	73 70 63	52 59 60	2900	18.5	3.0	205
65-250(I)B	30 43.3 56	8.3 12.0 15.6	62 60 54	58	2900	15	3.0	180
65-315(I)	35 50 65	9.72 13.9 18.1	128 125 121	44 54 57	2900	37	3.0	350
65-315(I)A	32.5 46.5 60.5	9.0 12.9 16.8	112.6 110 106.4	43 54 57	2900	30	3.0	335
65-315(I)B	31 44.5 58	8.6 12.4 16.1	102.5 100 98	53	2900	30	3.0	335
65-315(I)C	29 41 53.6	8.1 11.4 14.9	87 85 83	51	2900	22	3.0	270
80-100	35 50 65	9.72 13.9 18.1	13.8 12.5 10	67 73 70	2900	3	3.0	63
80-100A	31.3 44.7 58	8.7 12.5 16.1	11 10 8	66 72 69	2900	2.2	3.0	54
80-125	35 50 65	9.72 13.9 18.1	22 20 17	67 72.5 70	2900	5.5	3.0	99
80-125A	31.3 45 58	8.7 12.5 16.1	17.5 16 13.6	66 71 69	2900	4	3.0	79
80-160	35 50 65	9.72 13.9 18.1	35 32 28	63 71 70	2900	7.5	3.0	105
80-160A	32.7 46.7 61	9.1 13.0 16.9	30.6 28 24	62 70 69	2900	5.5	3.0	105
80-160B	30.3 43.3 56.3	8.4 12.0 15.6	26 24 21	69	2900	4	3.0	98
80-200	35 50 65	9.72 13.9 18.1	53.5 50 46	55 67 68	2900	15	3.0	175
80-200A	32.8 47 61	9.1 13.1 16.9	47 44 40	54 66 67	2900	11	3.0	165
80-200B	30.5 43.5 56.6	8.5 12.1 15.7	40.6 38 33.4	65	2900	7.5	3.0	115
80-250	35 50 65	9.72 13.9 18.1	83 80 72	52 59 60	2900	22	3.0	240
80-250A	32.5 46.7 61	9.0 13.0 16.9	73 70 63	52 59 60	2900	18.5	3.0	210
80-250B	30 43.3 56	8.3 12.0 15.6	62 60 54	58	2900	15	3.0	185
80-315	35 50 65	9.72 13.9 18.1	128 125 122	43 54 57	2900	37	3.0	355
80-315A	32.5 46.5 60.5	9.0 12.9 16.8	112.6 110 107.4	43 54 57	2900	30	3.0	340
80-315B	31 44.5 58	8.6 12.4 16.1	102.5 100 98	53	2900	30	3.0	340
80-315C	29 41 53.6	8.1 11.4 14.9	98 85 83	51	2900	22	3.0	275
80-350	35 50 65	9.72 13.9 18.1	146 150 142	55 66 67	2900	55	3.0	570
80-350A	31 44.5 58	8.6 12.4 16.1	138.4 142 134.8	65	2900	45	3.0	470
80-350B	29 41 53.6	8.1 11.4 14.9	131.4 135 127.8	63	2900	37	3.0	440
80-100(I)	70 100 130	19.4 27.8 36.1	13.6 12.5 11	66 76 75	2900	5.5	4.5	108
80-100(I)A	62.6 89 116	17.4 24.7 32.2	11 10 8.8	64 74 74	2900	4	4.5	87
80-125(I)	70 100 130	19.4 27.8 36.1	23.5 20 14	70 76 65	2900	11	4.5	163
80-125(I)A	62.6 89 116	17.4 24.7 32.2	19 16 11	68 74 65	2900	7.5	4.5	113
80-160(I)	70 100 130	19.4 27.8 36.1	36.5 32 24	70 76 65	2900	15	4.5	184
80-160(I)A	65.4 93.5 121.6	18.2 26.0 33.8	32 28 21	68 74 67	2900	11	4.5	174
80-160(I)B	60.6 86.6 112.5	16.8 24.1 31.3	72 24 18	72	2900	7.5	4.5	174
80-200(I)	70 100 130	19.4 27.8 36.1	54 50 42	65 74 73	2900	22	4.0	251
80-200(I)A	65.4 93.5 121.6	18.2 26.0 33.8	47.5 44 37	67 73 72	2900	18.5	4.0	220
80-200(I)B	61 87 113	16.9 24.2 31.4	41 38 32	71	2900	15	4.0	198
80-250(I)	70 100 130	19.4 27.8 36.1	87 80 68	62 69 68	2900	37	4.0	330
80-250(I)A	65.4 93.5 121.6	18.2 26.0 33.8	76 70 59.5	61 68 67	2900	30	4.0	315
80-250(I)B	61 87 113	16.9 24.2 31.4	65 60 51	66	2900	22	4.0	315
80-315(I)	70 100 130	19.4 27.8 36.1	132 125 114	55 66 67	2900	75	4.0	675
80-315(I)A	66.5 95 123.6	18.5 26.4 34.3	119 113 103	55 66 67	2900	55	4.0	535
80-315(I)B	63 90 117	17.5 25 32.5	106.6 101 92	65	2900	45	4.0	420
80-315(I)C	58 82 107	16.1 22.8 29.7	90 85 76	63	2900	37	4.0	366
100-100	70 100 130	19.4 27.8 36.1	13.6 12.5 11	66 76 75	2900	5.5	4.5	113
100-100A	62.6 89 116	17.4 47 32.2	11 10 8.8	64 74 74	2900	4	4.5	91
100-125	70 100 130	19.4 27.8 36.1	23.5 20 14	70 76 65	2900	11	4.5	169
100-125A	62.6 89 116	17.4 24.7 32.2	19 16 11	68 74 63	2900	7.5	4.5	118
100-160	70 100 130	19.4 27.8 36.1	36.5 32 24	70 76 65	2900	15	4.5	191
100-160A	65.4 93.5 121.6	18.2 26.0 33.8	32 28 21	68 74 67	2900	11	4.5	181
100-160B	60.6 86.6 112.5	16.8 24.1 31.3	27 24 18	72	2900	7.5	4.5	181
100-200	70 100 130	19.4 27.8 36.1	54 50 42	65 74 73	2900	22	4.0	245
100-200A	65.4 93.5 121.6	18.2 26.0 33.8	47.5 44 37	64 73 72	2900	18.5	4.0	215
100-200B	61 87 113	16.9 24.2 31.4	41 38 32	71	2900	15	4.0	193
100-250	70 100 130	19.4 27.8 36.1	87 80 68	62 69 68	2900	37	4.0	345
100-250A	65.4 93.5 121.6	18.2 26.0 33.8	76 70 59.5	61 68 67	2900	30	4.0	330
100-250B	61 87 113	16.9 24.2 31.4	65 60 51	66	2900	22	4.0	330
100-315	70 100 130	19.4 27.8 36.1	132 125 114	55 66 67	2900	75	4.0	689
100-315A	66.5 95 123.6	18.5 26.4 34.3	119 113 103	65 66 67	2900	55	4.0	549
100-315B	63 90 117	17.5 25 32.5	106.6 101 92	65	2900	45	4.0	439
100-315C	58 82 107	16.1 22.8 29.7	90 85 76	63	2900	37	4.0	385
100-100(I)	96 160 192	26.7 44.4 53.3	14 12.5 10	64 73 70	2900	11	4.5	115
100-125(I)	96 160 192	26.7 44.4 53.3	24 20 14	62 74 69	2900	15	4.5	168
100-125(I)A	84 140 168	23.3 39 46.7	20 17 12	64 72 68	2900	11	4.5	168
100-160(I)	96 160 192	26.7 44.4 53.3	36 32 27	69 79 75	2900	22	5.6	210
100-160(I)A	84 140 168	23.3 39 46.7	32 28 23.5	66 76 72	2900	18.5	5.0	210
100-200(I)	96 160 192	26.7 44.4 53.3	53 50 45	69 79 78	2900	37	5.2	402
100-200(I)A	84 140 168	23.3 39 46.7	48 45 40	64 74 73	2900	30	4.5	395
100-200(I)B	60 100 120	16.7 27.8 33.3	43 40 36	72	2900	22	4.5	360
100-250(I)	96 160 192	26.7 44.4 53.3	83 80 72	65 77 74	2900	55	4.8	560
100-250(I)A	84 140 168	23.3 39 46.7	75 72 65	60 72 69	2900	45	4.5	420
100-250(I)B	60 100 120	16.7 27.8 33.3	68 65 58	70	2900	37	4.5	400
100-350	60 100 120	16.7 27.8 33.3	153.6 150 142	72 57 74	2900	90	4.0	950
100-350A	61 87 113	16.9 24.2 31.4	145.6 142 134	75	2900	75	4.0	830
100-350B	58 82 107	16.1 22.8 29.7	138.6 135 127	75	2900	55	4.0	600
125-100	96 160 192	26.7 44.4 53.3	13 12.5 12	82	2900	11	4.0	180
125-100A	86 143 172	23.9 39.7 47.8	10.4 10 9.6	77	2900	7.5	4.0	125
125-125	96 160 192	26.7 44.4 53.3	22.6 20 17	80	2900	15	4.0	220
125-125A	86 143 172	23.9 39.7 47.8	18 16 13.6	77	2900	11	4.0	210
125-160	96 160 192	26.7 44.4 53.3	36 32 28	78	2900	22	4.0	265
125-160A	90 150 180	25 41.7 50	31.5 28 24.5	76	2900	18.5	4.0	230
125-160B	83 138 166	21.7 38.3 46.1	27 24 21	73	2900	15	4.0	215
125-200	96 160 192	26.7 44.4 53.3	55 50 46	77	2900	37	5.5	395
125-200A	90 150 180	25 41.7 50	48.4 44 40.5	76	2900	30	5.5	380
125-200B	83 138 166	21.7 38.3 46.1	41.3 37.5 34.5	75	2900	22	5.5	320
125-250	96 160 192	26.7 44.4 53.3	87 80 73	75	2900	55	5.0	580
125-250A	90 150 180	25 41.7 50	76 70 84	74	2900	45	5.5	490
125-250B	83 138 166	21.7 38.3 46.1	65 60 55	73	2900	37	5.5	430
125-315	96 160 192	26.7 44.7 53.3	133 125 119	70	2900	90	5.0	790
125-315A	90 150 180	25 41.7 50	117 110 104.6	70	2900	75	5.0	710
125-315B	86 143 172	23.9 39.7 47.8	106.4 100 95.2	69	2900	75	5.0	705
125-315C	80.5 134 161	22.4 37.2 44.7	96 88 86	67	2900	55	5.0	585
150-125	96 160 192	26.7 44.4 53.3	22.6 24 17	66 76 76	2900	11	4.0	210
150-125A	90 150 180	25 41.7 50	18 16 13.6	77	2900	7.5	4.0	130
150-160	96 160 192	26.7 44.4 53.3	36 32 27	75	2900	22	4.0	270
150-160A	90 150 180	25 41.7 50	32 28 23.5	76	2900	18.5	4.0	230
150-160B	84 140 168	23.3 39 46.7	27 24 21	73	2900	15	4.0	220
150-200	140 200 260	38.9 55.6 72.2	13.8 12.5 10.6	68 78 78	1450	15	3.0	265
150-200A	125 176 232.5	34.7 49.7 64.6	11 10 8.5	66 76 76	1450	11	3.0	244
150-200B	84 140 168	23.3 39 46.7	41 38 34	75	2900	22	4.0	275
150-250	140 200 260	38.9 55.6 72.2	21.8 20 17	73 79 77	1450	18.5	3.0	300
150-250A	129 184.4 240	35.8 51.2 66.7	18.5 17 14.4	72 78 76	1450	15	3.0	262
150-250B	117 167 217.5	32.5 46.4 60.4	15.2 14 12	76	1450	11	3.0	241
150-315	140 200 260	38.9 55.6 72.2	33.8 32 28	70 78 73	1450	30	2.5	410
150-315A	131 187 243	36.4 51.9 67.5	29.5 28 24.5	69 77 77	1450	22	3.5	335
150-315B	121 173 225	33.5 48.1 62.5	25 24 21	76	1450	18.5	3.5	315
150-350	96 160 192	26.7 44.4 53.3	153.6 150 142.8	80	2900	110	5.5	970
150-350A	90 150 180	25 41.7 50	145.6 142 134.8	70	2900	90	5.2	790
150-350B	84 140 168	23.3 39 46.7	138.6 135 127.8	65 76 74	2900	75	5.5	705
150-400	140 200 260	38.9 55.6 72.2	53 50 44	68 75 71	1450	45	3.5	490
150-400A	131 187 243	36.4 51.9 67.5	46.6 44 38.3	67 74 70	1450	37	3.5	454
150-400B	122 174 226.5	33.9 48.3 62.9	40 38 33	73	1450	30	3.5	435
150-400C	112 160 208	31.1 44.4 57.8	34 32 28	71	1450	22	3.5	365
150-250(I)	120 200 240	33.3 55.6 66.7	87 80 72	65 76 74	2900	75	4.5	702
150-250(I)A	112 187 224	31.1 51.9 62.2	76 70 63	64 75 73	2900	55	4.5	561
150-250(I)B	104 173 208	28.9 48.1 57.8	65 60 54	63 74 72	2900	45	4.5	460
150-315(I)	120 200 240	33.3 55.6 66.7	133 125 120	58 73 75	2900	110	4.5	980
150-315(I)A	112 187 224	31.1 51.9 62.2	116 110 105	57 72 74	2900	90	4.5	800
150-315(I)B	104 173 208	28.9 48.1 57.8	100 95 91	55 70 72	2900	75	4.5	724
200-200	140 200 260	38.9 65.6 72.2	13.8 12.5 10.6	68 78 78	1450	15	3.0	265
200-200A	125 179 232.5	34.7 49.7 64.6	11 10 8.5	66 76 76	1450	11	3.0	244
200-250	140 200 260	38.9 55.6 72.2	21.8 20 17	73 79 77	1450	18.5	3.0	305
200-250A	129 184.4 240	35.8 51.2 66.7	18.5 17 14.4	72 78 76	1450	15	3.0	267
200-250B	117 167 217.5	32.5 46.4 60.4	15.2 14 12	76	1450	11	3.0	246
200-315	140 200 260	38.9 55.6 72.2	33.8 32 28	70 78 78	1450	30	3.5	417
200-315A	131 198 243	36.4 51.9 67.5	29.5 28 24.5	69 77 77	1450	22	3.5	342
200-315B	121 173 225	33.6 48.1 62.5	25 24 21	76	1450	18.5	3.5	322
200-400	140 200 260	38.9 55.6 72.2	53 50 44	68 75 71	1450	45	3.5	498
200-400A	131 187 243	36.4 51.9 67.5	46.6 44 38.3	67 74 70	1450	37	3.5	462
200-400B	122 174 226.5	33.9 48.6 62.9	40 38 33	73	1450	30	3.5	443
200-400C	112 160 208	31.3 44.4 57.8	34 32 28	71	1450	22	3.5	373
200-200(I)	280 400 520	77.8 111.1 144	13.4 12.5 10.5	70 80 79	1450	22	4.0	382
200-200(I)A	250 358 465	69.4 99.4 129.2	10.7 10 8.5	68 78 77	1450	18.5	4.0	346
200-250(I)	280 400 520	77.8 111.4 144	22.2 20 14	75 80 72	1450	30	4.0	475
200-250(I)A	250 358 465	69.4 99.6 129.2	18 14 11.2	73 78 70	1450	22	4.0	405
200-250(I)B	226 322 419	62.8 89.4 116.4	14.4 13 7.3	70 75 67	1450	18.5	4.0	387
200-315(I)	280 400 520	77.8 111.4 144	36 32 26	73 80 75	1450	55	4.0	675
200-315(I)A	262 374 486	72.8 103.9 135	31.5 28 23	72 79 74	1450	45	4.0	560
200-315(I)B	242 346 450	67.2 96.1 125	27 24 19.5	78	1450	37	4.0	535
200-400(I)	280 400 520	77.8 111.4 144	54.5 50 39	75 81 77	1450	75	4.0	830
200-400(I)A	262 374 486	72.8 103.9 135	48 44 34	80	1450	75	4.0	830
200-400(I)B	242 346 450	67.2 96.1 125	41.4 38 29.6	78	1450	55	5.0	685
200-400(I)C	224 320 416	62.2 88.9 115.6	34.9 32 25	76	1450	45	5.0	580
250-250	350 550 650	97.2 152.8 180.5	22 20 16	78 82 81	1450	45	5.0	620
250-250A	300 500 600	83.3 139 166.7	18.3 17 14	76 80 80	1450	37	5.0	550
250-235	300 600 600	83.3 139 166.7	14 12.5 11	73 78 70	1480	22	4.5	410
250-300	300 500 600	83.3 139 166.7	22 20 16	78	1480	37	4.5	550
250-315	350 550 650	97.2 152.8 180.5	34 32 28	76 80 79	1450	75	5.5	890
250-315A	300 500 600	83.3 139 166.7	29.5 28 24	74 78 77	1450	55	5.5	690
250-315B	260 450 520	72.2 125 144.4	25 24 20	70 74 72	1450	45	5.5	620
250-400	300 500 600	83.3 139 166.7	54.5 50 39	72	1480	90	4.5	1530
300-235	540 720 900	150 200 250	20.5 18 15.0	77 81 74	1450	55	5.0	1075
300-235A	450 600 720	125 160 200	17.2 15 12.5	74 79 77	1450	45	5.0	970
300-235B	420 540 650	116.7 150 181	114.3 12.8 10.5	73 78 70	1450	37	5.0	925
300-250	540 720 900	150 200 250	22.5 20 17	80 83 84	1450	55	6.0	1085
300-250A	450 600 720	136 166 200	19.5 17 14	81	1450	45	6.0	980
300-300	540 720 900	150 200 250	32 28 23	82	1480	75	5.0	1230
300-300A	450 600 720	125 166 200	27.5 24 20	80	1480	75	5.0	1095
300-300B	420 540 650	116.7 150 181	24 21 17	78	1480	55	5.0	980
300-315	540 720 900	150 200 250	35 32 26	84	1480	90	4.5	1350
300-315A	460 650 800	127.8 180 222	31.5 28 23.5	80	1480	75	4.5	1240
300-315B	420 580 700	116.7 161 194	27 24 20.0	78	1480	55	4.5	1100
300-380	480 720 900	133.3 200 250	48 44 34	84	970	132.0	5.0	1900
300-380A	444 666 833	123.3 185 231.4	41.4 38 30	80	970	110.0	5.0	1700
300-380B	400 614 764	113.6 170.6 213.1	35 32 35	78	970	90.0	5.0	1530
300-390	540 720 900	150 200 250	20.5 18 15.5	78 81 76	980	55	5.0	1300
300-390A	450 600 720	126 167 200	17.2 15 12.8	77 79 75	980	45	5.0	1220
300-390B	400 540 650	111 150 180	14 12.5 11.5	74 77 76	980	37	5.0	1100
300-400	450 600 720	125 166 200	55 50 42.5	78	1480	110	5.0	1500
300-480	540 720 900	150 200 250	31 28 24	79 81 80	980	75	5.0	1500
300-480A	450 600 720	126 166 200	27.4 24 20.0	78 80 79	980	75	5.0	1280
300-480B	400 540 650	111 150 180	24 21 17	79	980	55	5.0	1180
350-235	600 800 960	167 222 267	14 12.5 10.5	80 83 82	1480	37	4.5	1050
350-300	600 800 960	167 222 267	22.5 20 17.5	79 80 71	1480	55	4.5	1230
350-315	600 800 960	167 222 267	35.5 32 28.5	84	1480	90	4.5	1650
350-400	600 800 960	167 222 267	55 50 45.5	83	1480	160	4.5	1950
400-300	820 1080 1300	228 300 361	23 20 16	78	1480	90	6.0	1570
400-315	820 1080 1300	205 300 344	36.5 32 27	76	1480	132	6.0	1880
500-300	1000 1200 1450	277.8 333 403	23 20 16.0	80	1480	110	6.0	1800
500-315	1000 1200 1450	278 333 403	34.5 32 27	78	1480	160	6.0	2070
40-100	2.2 3.2 4.2	0.61 0.89 1.17	3.3 3 2.8	48	1400	0.12	2.5	17
40-125	2.2 3.2 4.2	0.61 0.89 1.17	5.5 5 4.5	40	1400	0.18	2.5	19
40-125A	2.0 2.8 3.7	0.56 0.78 1.03	4.4 4 3.6	39	1400	0.12	2.5	19
40-160	2.2 3.2 4.2	0.61 0.89 1.17	8.5 8 7.5	36	1400	0.25	2.5	24
40-160A	2.0 2.8 3.7	0.56 0.78 1.03	6.8 6.4 6	35	1400	0.18	2.5	22
40-200	2.2 3.2 4.2	0.61 0.89 1.17	13 12.5 12	31	1450	0.55	2.5	38
40-200A	2.0 2.8 3.7	0.56 0.78 1.03	10.4 10 9.6	30	1400	0.37	2.5	30
40-250	2.2 3.2 4.2	0.61 0.89 1.17	20.5 20 18.5	25	1450	1.1	2.5	52
40-250A	2.0 2.8 3.7	0.56 0.78 1.03	16.4 16 15	25	1450	0.75	2.5	47
40-250B	1.6 2.3 3.4	0.44 0.64 0.94	13.2 13 12	24	1450	0.55	2.5	46
40-100(I)	3.8 6.3 7.5	1.06 1.75 2.08	3.4 3 2.8	54	1400	0.12	2.5	17
40-125(I)	3.8 6.3 7.5	1.06 1.75 2.08	5.4 5.0 4.6	54	1400	0.25	2.5	29
40-125(I)A	3.4 5.6 6.7	0.94 1.56 1.86	4.3 4.0 3.7	52	1400	0.18	2.5	24
40-160(I)	3.8 6.3 7.5	1.06 1.75 2.08	8.5 8.0 7.5	47	1450	0.55	2.5	43
40-160(I)A	3.0 5.1 6.1	0.83 1.42 1.69	5.6 5.3 4.9	45	1400	0.25	2.5	30
40-200(I)	3.8 6.3 7.5	1.06 1.75 2.08	13.1 12.5 12	40	1450	0.75	2.5	45
40-200(I)A	3.3 5.5 6.5	0.92 1.53 1.81	10 9.5 9	39	1450	0.55	2.5	44
40-250(I)	3.8 6.3 7.5	1.06 1.75 2.08	20.5 20 19.5	32	1450	1.5	2.5	54
40-250(I)A	3.4 5.6 6.7	0.94 1.56 1.86	16.4 16 15.6	32	1450	1.1	2.5	49
40-250(I)B	3.1 5.1 6.1	0.86 1.42 1.69	13.2 13 12.5	30	1450	0.75	2.5	42
50-100	3.8 6.3 7.5	1.06 1.75 2.08	3.4 3 2.8	54	1400	0.12	2.5	19
50-125	3.8 6.3 7.5	1.06 1.75 2.08	5.4 5.0 4.6	54	1400	0.25	2.5	25
50-125A	3.4 5.6 6.7	0.94 1.56 1.86	4.3 4.0 3.7	52	1400	0.18	2.5	19
50-160	3.8 6.3 7.5	1.06 1.75 2.08	8.5 8.0 7.5	47	1450	0.55	2.5	42
50-160A	3.0 5.1 6.1	0.83 1.42 1.69	5.6 5.3 4.9	45	1400	0.25	2.5	37
50-200	3.8 6.3 7.5	1.06 1.75 2.08	13.1 12.5 12	40	1450	0.75	2.5	48
50-200A	3.3 5.5 6.5	0.92 1.53 1.81	10 9.5 9	39	1450	0.55	2.5	46
50-250	3.8 6.3 7.5	1.06 1.75 2.08	20.5 20 19.5	32	1450	1.5	2.5	58
50-250A	3.4 5.6 6.7	0.94 1.56 1.86	16.4 16 15.6	32	1450	1.1	2.5	50
50-250B	3.1 5.1 6.1	0.86 1.42 1.69	13.2 13 12.5	30	1450	0.75	2.5	49
50-100(I)	7.5 12.5 15	2.08 3.47 4.17	3.5 3 2.5	63	1400	0.25	2.5	23
50-125(I)	7.5 12.5 15	2.08 3.47 4.17	5.4 5.0 4.7	63	1400	0.37	2.5	34
50-125(I)A	6.6 11.0 13.2	1.83 3.06 3.67	4.1 3.8 3.6	60	1400	0.25	2.5	33
50-160(I)	7.5 12.5 15	2.08 3.47 4.17	8.8 8 7.2	59	1450	0.55	2.8	46
50-160(I)A	6.5 10.8 13.0	1.81 3.0 3.61	6.6 6 5.4	57	1400	0.37	2.8	34
50-200(I)	7.5 12.5 15	2.08 3.47 4.17	13.2 12.5 11.8	54	1450	1.1	2.8	52
50-200(I)A	6.8 11.3 13.5	1.89 3.14 3.75	10.7 10.1 9.6	53	1450	0.75	2.8	48
50-250(I)	7.5 12.5 15	2.08 3.47 4.17	21 20 19.4	45	1450	2.2	2.8	73
50-250(I)A	7.0 11.7 14.1	1.94 3.25 3.92	18.4 17.6 17	44	1450	1.5	2.8	65
50-250(I)B	6.1 10.2 12.3	1.69 2.83 3.42	14.1 13.4 13.0	43	1450	1.1	2.8	60
50-315(I)	7.5 12.5 15	2.08 3.47 4.17	32.3 32 31.7	36	1450	4.0	2.8	89
50-315(I)A	7 11.7 14	1.94 3.25 3.92	28.1 28 27.6	36	1450	3.0	2.8	84
50-315(I)B	6.1 10.2 12.1	1.69 2.81 3.36	21.2 21 20.8	34	1450	3.0	2.8	82
65-100	7.5 12.5 15	2.08 3.47 4.17	3.5 3 2.5	63	1400	0.25	2.8	29
65-125	7.5 12.5 15	2.08 3.47 4.17	5.4 5.0 4.7	63	1400	0.37	2.8	32
65-125A	6.6 11.0 13.2	1.83 3.06 3.67	4.1 3.8 3.6	60	1400	0.25	2.8	27
65-160	7.5 12.5 15	2.08 3.47 4.17	8.8 8 7.2	59	1450	0.55	2.8	46
65-160A	6.5 10.8 13.0	1.81 3.0 3.61	6.6 6 5.4	57	1400	0.37	2.8	35
65-200	7.5 12.5 15	2.08 3.47 4.17	13.2 12.5 11.8	54	1450	1.1	2.8	52
65-200A	6.8 11.3 13.5	1.89 3.14 3.75	10.7 10.1 9.6	53	1450	0.75	2.8	48
65-250	7.5 12.5 15	2.08 3.47 4.17	21 20 19.4	45	1450	2.2	2.8	76
65-250A	7.0 11.7 14.1	1.94 3.25 3.92	18.4 17.6 17	44	1450	1.5	2.8	68
65-250B	6.1 10.2 12.3	1.69 2.83 3.42	14.1 13.4 13.0	43	1450	1.1	2.8	63
65-315	7.5 12.5 15	2.08 3.47 4.17	32.3 32 31.7	36	1450	4.0	2.8	89
65-315A	7 11.7 14	1.94 3.25 3.92	28.1 28 27.6	36	1450	3.0	2.8	85
65-315B	6.1 10.1 12.1	1.69 2.81 3.36	21.2 21 20.8	34	1450	3.0	2.8	82
65-100(I)	15 25 30	4.17 6.94 8.33	3.5 3 2.5	70	1400	0.37	2.8	33
65-125(I)	15 25 30	4.17 6.94 8.33	5.6 5 4.5	70	1450	0.75	2.8	49
65-125(I)A	13.1 21.8 26.1	3.05 6.05 7.25	4.3 3.8 3.4	65	1450	0.55	2.8	48
65-160(I)	15 25 30	4.17 6.94 9.33	9 8 7.2	68	1450	1.1	2.8	54
65-160(I)A	13.0 21.6 25.9	3.61 6.0 7.19	6.7 6.0 5.4	65	1450	0.75	2.8	48
65-200(I)	15 25 30	4.17 6.94 9.33	13.2 12.8 11.8	64	1450	2.2	2.8	71
65-200(I)A	14.0 23.3 27.9	3.89 6.47 7.75	11.5 10.9 10.2	63	1450	1.5	2.8	62
65-250(I)	15 25 30	4.17 6.94 8.33	21 20 18.8	59	1450	3.0	2.8	85
65-250(I)A	13.3 22.2 26.6	3.69 6.17 7.39	16.6 15.8 14.8	58	1450	2.2	2.8	80
65-250(I)B	11.9 19.8 23.8	3.31 5.5 6.61	13.2 12.6 11.8	57	1450	1.5	2.8	74
65-315(I)	15 25 30	4.17 6.94 9.33	32.5 32 31.5	50	1450	5.5	2.8	120
65-315(I)A	14 23 28	3.89 6.39 7.78	28.3 27.9 27.4	50	1450	4.0	2.8	110
65-315(I)B	12.1 20.2 24.2	3.36 5.61 6.75	21.3 21 20.6	49	1450	3.0	2.8	100
80-100	15 25 30	4.17 6.94 8.33	3.5 3 2.5	70	1400	0.37	2.8	33
80-125	15 25 30	4.17 6.94 8.33	5.6 5 4.5	70	1450	0.75	2.8	48
80-125A	13.1 21.8 26.1	3.05 6.05 7.25	4.3 3.8 3.4	65	1450	0.55	2.8	45
80-160	15 25 30	4.17 6.94 8.33	9 8 7.2	68	1450	1.1	2.8	55
80-160A	13.0 21.6 25.9	3.61 6.0 7.19	6.7 6.0 5.4	65	1450	0.75	2.8	51
80-200	15 25 30	4.17 6.94 8.33	13.2 12.5 11.8	64	1450	2.2	2.8	72
80-200A	14.0 23.3 27.9	3.89 6.47 7.75	11.5 10.9 10.2	63	1450	1.5	2.8	64
80-250	15 25 30	4.17 6.94 8.33	21 20 18.8	59	1450	3.0	2.8	89
80-250A	13.3 22.2 26.6	3.69 6.17 7.39	16.6 15.8 14.8	58	1450	2.2	2.8	85
80-250B	11.9 19.8 23.8	3.31 5.5 6.61	13.2 12.6 11.8	57	1450	1.5	2.8	78
80-315	15 25 30	4.17 6.94 8.33	32.5 32 31.5	50	1450	5.5	2.8	130
80-315A	14 23 28	3.89 6.39 7.78	28.3 27.9 27.4	50	1450	4.0	2.8	102
80-315B	12.1 20.2 24.3	3.36 5.61 6.75	21.3 21 20.6	49	1450	3.0	2.8	95
80-100(I)	30 50 60	8.33 13.89 16.67	3.5 3 2.5	73	1450	0.75	3.0	58
80-125(I)	30 50 60	8.33 13.89 16.67	6 5 4	73	1450	1.1	3.0	61
80-125(I)A	26.8 44.6 53.5	7.44 12.4 14.9	4.8 4 3.2	63	1450	1.1	3.0	61
80-160(I)	30 50 60	8.33 13.89 16.67	9.2 8 6.8	73	1450	2.2	3.0	82
80-160(I)A	26.7 44.5 53.4	7.42 12.36 14.83	7.3 6.3 5.4	71	1450	1.5	3.0	74
80-200(I)	30 50 60	8.33 13.89 16.67	13.5 12.5 11.8	72	1450	3.0	3.0	97
80-200(I)A	26.7 44.6 53.5	7.42 12.36 14.83	10.7 9.9 9.4	71	1450	2.2	3.0	93
80-250(I)	30 50 60	8.33 13.89 16.67	21.3 20 19	66	1450	5.5	3.0	134
80-250(I)A	28 46.7 56	7.78 12.97 15.56	18.6 17.4 16.6	65	1450	4.0	3.0	106
80-250(I)B	24.2 40.4 48.5	6.72 11.22 13.47	13.9 13.1 12.4	63	1450	3.0	3.0	100
80-315(I)	30 50 60	8.33 13.89 16.67	34 32 30	61	1450	11.0	3.0	217
80-315(I)A	28 46.7 56	7.78 12.97 15.56	29.6 27.9 26.1	61	1450	7.5	3.0	180
80-315(I)B	24.3 40.5 48.6	6.72 11.22 13.47	22.3 21 19.1	60	1450	5.5	3.0	166
100-100	30 50 60	8.33 13.89 16.67	3.5 3 2.5	73	1450	0.75	3.0	62
100-125	30 50 60	8.33 13.89 16.67	6 5 4	73	1450	1.1	3.0	70
100-125A	26.8 44.6 53.5	7.44 12.4 14.9	4.8 4 3.2	63	1450	1.1	3.0	68
100-160	30 50 60	8.33 13.89 16.67	9.2 8 6.8	73	1450	2.2	3.0	87
100-160A	26.7 44.5 53.4	7.42 12.36 14.83	7.3 6.3 5.4	71	1450	1.5	3.0	79
100-200	30 50 60	8.33 13.89 16.67	13.5 12.5 11.8	72	1450	3.0	3.0	100
100-200A	26.7 44.6 53.5	7.42 12.36 14.83	10.7 9.9 9.4	71	1450	2.2	3.0	90
100-250	30 50 60	8.33 13.89 16.67	21.3 20.19	66	1450	5.5	3.0	140
100-250A	28 46.7 56	7.78 12.97 15.56	18.6 17.4 16.6	65	1450	4.0	3.0	112
100-250B	24.2 40.4 48.5	6.72 11.22 13.47	13.9 13.1 12.4	63	1450	3.0	3.0	105
100-315	30 50 60	8.33 13.89 16.67	34 32 30	61	1450	11.0	3.0	225
100-315A	28 46.7 56	7.78 12.97 15.56	29.6 27.9 26.1	61	1450	7.5	3.0	180
100-315B	24.3 40.5 48.6	6.72 11.22 13.47	22.3 21 19.1	60	1450	5.5	3.0	165
100-125(I)	60 100 120	16.67 27.78 33.33	6.5 5 4	78	1450	2.2	3.0	95
100-125(I)A	52.2 87.1 104	14.5 24.2 28.9	4.3 3.8 3.4	76	1450	1.5	3.0	87
100-160(I)	60 100 120	16.7 27.78 33.33	10 8 7	78	1450	4.0	3.0	118
100-160(I)A	52.2 87.1 104	14.5 24.2 28.9	7.3 6.3 5.4	76	1450	3.0	3.0	113
100-200(I)	60 100 120	16.67 27.78 33.33	14.0 12.5 11	75	1450	5.5	3.0	148
100-200(I)A	51.7 86.1 103	14.36 23.92 28.61	10.8 9.3 8.2	73	1450	4.0	3.0	123
100-250(I)	60 100 120	16.67 22.78 33.33	21.5 20 18.5	74	1450	11.0	3.0	208
100-250(I)A	56 93.3 112	15.56 25.92 31.11	18.7 17.4 16.1	73	1450	7.5	3.0	165
100-250(I)B	52.2 87 104	14.5 24.17 28.89	16 15 14	72	1450	5.5	3.0	149
100-315(I)	60 100 120	16.67 22.78 33.33	33.5 32 30.5	71	1450	15.0	3.0	234
100-315(I)A	55.0 91.0 110.0	15.28 25.28 30.56	28 27 25.7	71	1450	11.0	3.0	213
100-315(I)B	47 79.0 95	13.06 21.94 26.39	21 20 19	70	1450	7.5	3.0	165
100-400(I)	60 100 120	16.67 22.78 33.33	52 50 48.5	65	1450	30.0	3.0	375
100-400(I)A	56.4 94 113	15.67 26.11 31.39	46 44 43	65	1450	22.0	3.0	295
100-400(I)B	52.3 87 105	14.53 24.17 29.17	39 38 37	64	1450	18.5	3.0	257
100-400(I)C	48.6 81 97	13.54 22.56 26.94	34 32.8 32	62	1450	15.0	3.0	239
125-125	48 80 96	13.3 22.2 26.7	5.5 5 4.3	76	1450	2.2	3.0	148
125-125A	43 71.5 66	11.6 19.9 13.9	4.4 4 3.4	75	1450	1.5	3.0	125
125-160	48 80 96	13.3 22.2 26.7	9 8 7	74	1450	3.0	3.0	205
125-160A	42 69.3 83	11.9 19.3 23	6.8 6 5.3	73	1450	2.2	3.0	165
125-200	48 80 96	13.3 23.2 26.7	13.8 12.5 11.5	73	1450	5.5	3.0	249
125-200A	45 75 90	12.5 20.8 25	12 11 10	72	1450	4.0	3.0	237
125-250	48 80 96	13.3 22.2 26.7	22 20 18.3	72	1450	7.5	2.8	220
125-250A	45 75 90	12.5 20.8 25	19 17.5 16	71	1450	7.5	2.8	210
125-250B	41.5 69 83	11.5 11.2 23	16.3 15 13.8	70	1450	5.5	2.8	195
125-315	48 80 96	13.3 22.2 26.7	33.3 32 29.8	67	1450	15.0	2.5	300
125-315A	45 75 90	12.5 20.8 25	29.3 27.5 26	66	1450	11.0	2.5	282
125-315B	43 72 96	11.9 20 23.9	26.5 25 23.8	65	1450	11.0	2.5	245
