Wholesale Fully Automatic Spore Capture Analyzer


Agricultural Four Situation Series

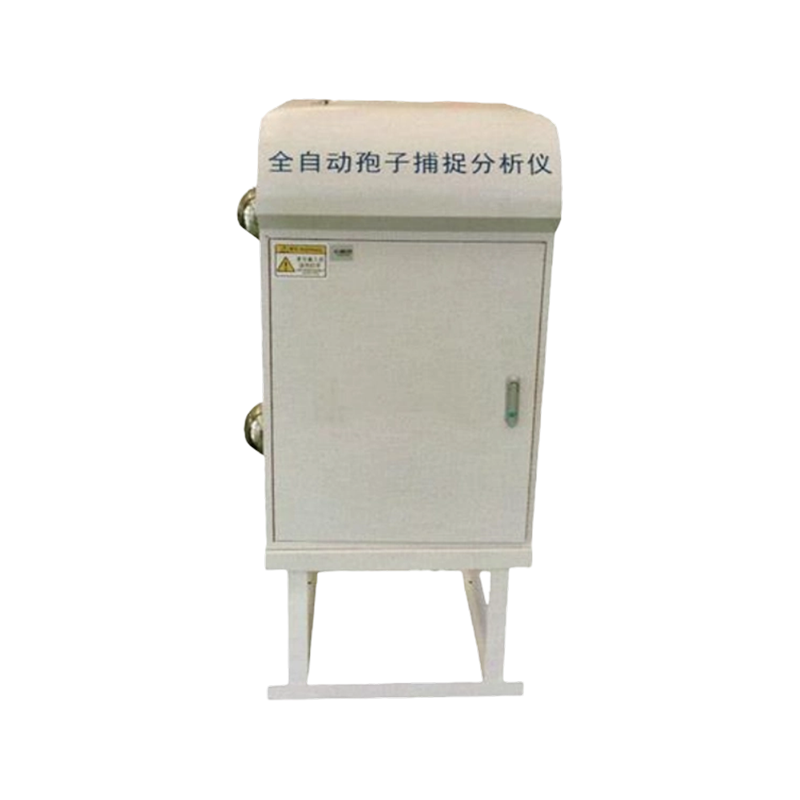

Fully Automatic Spore Capture Analyzer

Product Overview
The fully automatic spore capture and analysis equipment package includes high-power optical microscopy imaging system, precision limiting technology, automatic intelligent focusing fusion technology, IoT transmission control technology and other technical means. Real time collection and analysis 24/7, saving time and making it more user-friendly. Using software image optimization algorithms, it can capture small targets more intuitively and clearly.
It can be widely used in agriculture, forestry, animal husbandry, vegetables, tobacco, tea, medicinal herbs, gardens, orchards, urban greening, quarantine and other fields.

Product Description

Main technical indicators

Power supply voltage 220V AC or solar power supply
Power consumption

Maximum operating power consumption: 65W

Standby power consumption: 26.4W

Communication method 4G upload
Working environment Online upload“
Basic parameters of imaging system

-20~70 ℃

B70~95% (relative humidity), no condensation

Built in glass carrying tape Optical amplification 10X; 5-megapixel CMOS image sensor (optional 8 million or 12 million)
Insulation resistance One replacement can be used continuously for up to 365 days, with 3 shots taken per day
Display screen ≥ 2.5M Ω (leakage protection)
System 10.1 inches
Device dimensions Android
Gas sampling 600*640*1418mm
Working time setting Collection time 60-1200 minutes (set range), available collection area: length * width (mm) 50 * 21mm
